Newline Newline TT-7523QCA+ 75 Inch Interactive Flat Panel

Save: ৳20,000

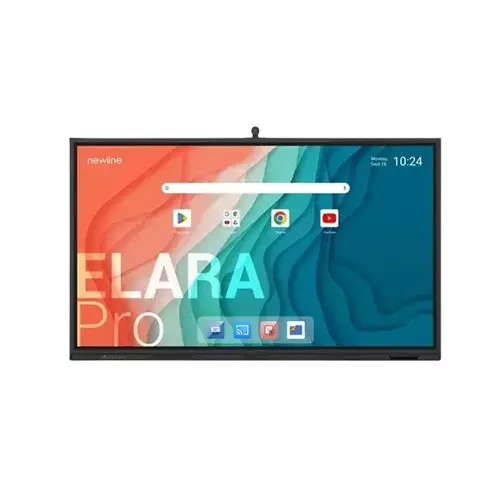

Newline TT-7523QCA+ 75 Inch Interactive Flat Panel

Q: What is the screen size of the Newline TT-7523QCA+?

The TT-7523QCA+ features a large 75-inch interactive flat panel.

Q: Where can this interactive panel be used?

It suits classrooms, meeting rooms, training centres, conference spaces, and collaborative work environments.

Q: What is the main benefit of an interactive flat panel?

It allows users to interact directly with digital content, making presentations, lessons, discussions, and collaborative activities more engaging.

0 Reviews

Stock : In Stock

PID : P4962609001

Brand : Newline

Model : TT-7523QCA+

Warranty : 3 Years

Display: 75-inch 4K UHD (3840×2160) VA panel (178° viewing)
Connectivity: HDMI, VGA, DisplayPort, NFC, Wi-Fi 6
Interaction: Stellar Touch technology
Hardware: Built-in 4K AI camera

Discount Price

৳340,000 ৳360,000

+ Available Payment Method

EMI Start From*

৳11,972

SPECIFICATIONS

Processor

Processor Chipset: RK3588
CPU: ARM A76*4 + A55*4

Memory

Memory 16GB

Storage

Storage 256GB

Display

Display Format Native Resolution 3840*2160

Screen Size 75 Inch

Display Type LCD

Brightness 500cd/m2

Aspect Ratio 16:9

Display Touch Yes

Response Time 4ms

Display Colors 10-bit

Viewing Angle 178∘

Contrast 15000:1

Display Details TOUCH PANEL:
Glass Surface Treatment: Anti-Glare+Anti-Fingerprint + Antimicrobial Tempered Glass
Glass Hardness: 9H(Pencil)
Glass Thickness: 3.2 mm
Glass Transparency: 88%+3
Glass Haze: 4-8%
Bonding Type: Zero bonding
Touch Solution: IR

Graphics

Graphics ARM G610 MC4

Camera

Camera Camera Resolution: 3840 x 2160/30 fps (4K)
Field of View: 120° FOV Lenses
Al Auto Framing (Face Tracking): Yes
ePTZ: Yes
Mic Array: Dual Mic
Pickup Distance: 3m
Noise Reduction: Yes
Built-in Audio ANR/AGC: Support long-distance collect voice

Networking & Connectivity

Connectivity 1x LAN In
1x LAN Out

WiFi WiFi Module: AZ932
WiFi Version: WiFi 5: 2.4G+5G | WiFi 6: 2.4G+5G

Bluetooth BT5.2

Audio & Microphone

Built-in Speaker Yes

Microphone Mic Position: 8-Mic Array, Upper Front
Distance: 8M
Mic Performance: Echo Cancellation, Beamforming, Noise Reduction

Speaker Speaker Position: Bottom Front
Speaker Power (Max.): 20Wx2
Speaker Rated Impedance: 6Ω
Speaker Freq.Response: 250Hz-20KHZ SPL-10dB
Output S.P.L.: 80+3dB
Speaker Position: back center
Speaker Power (Max.): 20WX1
Speaker Rated Impedance: 4Ω
Speaker Freq.Response: 80Hz-2.5KHz SPL-10dB
Output S.P.L.: 77±3dB

Battery And Power

Power Working Voltage: AC100-240V
Working Power Consumption: 75": <=550W
Power Consumption (Standby Mode): <0.5W

Ports

USB 3x Type C
7x USB 3.0

HDMI 4x HDMI In

Software

Operating System Android 13 EDLA

Others

Other Features Storage Temperature & Humidity: -20-60°C 0-90% RH (non-condensing)
Working Temperature/Humidity: 0-40°C 20-80%RH (non-condensing)
Installation Method (optional): wall-mounted/mobile stand
Outline Dimension (without wall mount bracket): 1735x1051x122 mm
SD Card: 64GB
Top Camera Port: Yes
OPS Slot: Yes
SDM-S Slot: Yes
NFC: Yes
Accessories: Power Cable, Stylus, Remote Control, wall mount kit, Dust Cover, etc.

Physical Specification

Color Black

Weight 50 kg

Dimension 1640x207x1036 mm

Technical Info

Number of Touch Android 20 & Windows 40

Warranty Information

Warranty 3 Years

DESCRIPTION

Newline TT-7523QCA+ Price in BD

The Newline TT-7523QCA+ is a 75-inch interactive flat panel designed for modern classrooms, training centres, meeting rooms, and collaborative workspaces. Its large display provides an engaging digital platform for presentations, lessons, brainstorming, and team collaboration, allowing users to interact directly with on-screen content. The spacious 75-inch format makes text, graphics, presentations, videos, and educational materials easier to view from different positions across a room. As an interactive flat panel, it combines display and touch-based functionality to support more dynamic communication than conventional screens or projectors. The TT-7523QCA+ suits institutions and businesses that need a centralised visual solution for teaching, presentations, and group activities. Its professional design creates a clean, modern environment while supporting everyday interactive workflows. The panel integrates well into classrooms and conference spaces where clear visuals and direct screen interaction matter. For customers in Bangladesh looking for a large interactive display, Tech Land BD offers the Newline TT-7523QCA+ at a competitive price in BD for professional education and business applications.

Why Buy Newline TT-7523QCA+ From Tech Land BD?

Choose the Newline TT-7523QCA+ from Tech Land BD for a large interactive workspace that supports teaching, presentations, meetings, and collaboration. Its 75-inch screen provides excellent visibility in group environments, while interactive touch functionality encourages direct participation and content control. Tech Land BD offers this Newline interactive flat panel at the best price for schools, universities, offices, training centres, and organisations upgrading their presentation and collaboration facilities.

FAQs

What is the screen size of the Newline TT-7523QCA+?

The TT-7523QCA+ features a large 75-inch interactive flat panel.

Where can this interactive panel be used?

It suits classrooms, meeting rooms, training centres, conference spaces, and collaborative work environments.

What is the main benefit of an interactive flat panel?

It allows users to interact directly with digital content, making presentations, lessons, discussions, and collaborative activities more engaging.

REVIEWS

No reviews yet

Be the first to share your thoughts about this product.

What is the Newline TT-7523QCA+ 75 Inch Interactive Flat Panel Price in Bangladesh 2026 ?

The Newline TT-7523QCA+ Price in BD is 340,000৳ . This Newline TT-7523QCA+ 75 Inch Interactive Flat Panel Manufacturing by Newline Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Newline TT-7523QCA+ by 340,000৳ and its regular price is 360,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
