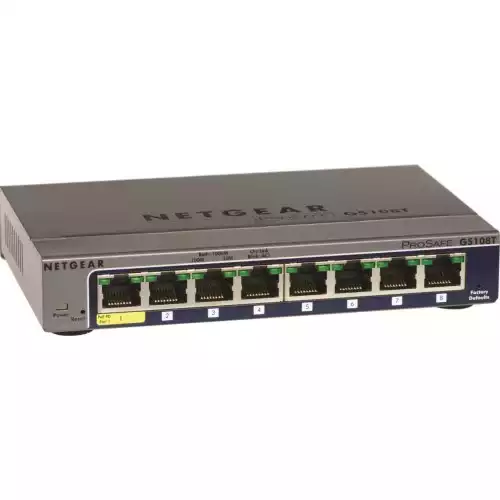

Netgear GS108T 8-Port Gigabit ProSwitch -Specification
|
Performance
| - Forwarding modes: Store-and-forward
- Bandwidth: 16Gbps full duplex
- Network latency: Less than 15μs for
- 64-byte frames in store-and-forward
- mode for 1000 Mbps to 1000 Mbps
- transmission
- Buffer memory: 512KB embedded
- memory per unit
- Address database size: 4k media access
- control (MAC) addresses
- per system
- Mean time between failures (MTBF):
- 275,533 hours (~32 years)
- Acoustic noise: 0dB
|
Power & Network Ports | |
Standards Compliance | - IEEE 802.3i 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x full-duplex flow control
|
Status LEDs
| - Per-port: Link/activity, speed
- Per device: Power
|
Electromagnetic Emissions
| - CE mark, commercial
- FCC Part 15 Class B
- VCCI Class B
- C-Tick
|
Environment
| - Operating temperature: 0° to 104°F
- (0° to 40°C)
- Storage temperature: -4° to 158°F
- (-20° to 70°C)
- Operating humidity: 90% maximum
- relative humidity, non-condensing
- Storage humidity: 95% maximum
- relative humidity, non-condensing
- Operating altitude: 10,000ft
- (3,000m) maximum
- Storage altitude: 10,000ft
- (3,000m) maximum
|
Physical Specifications
| - Dimensions: (W x D x H): 158 x 105 x 27mm
- Weight: 0.56kg (1.23 lb)
|
Netgear GS108T 8-Port Gigabit Switch Come with 01 Year Warranty
|
Netgear JFS524 24-Port Switch Overview:

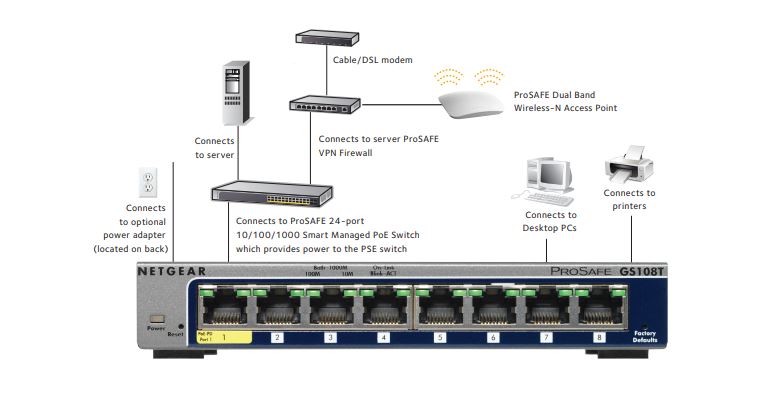

The NETGEAR® family of ProSAFE® Gigabit Smart Managed Switches is purposely designed for SMB customers with high performance, SMB-oriented features and easy management. With 8 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode per port, the GS108T is an ideal solution for extending network connections into the conference room, labs, lobbies, and department workgroups. It enables SMB networks to support Voice over IP (VoIP), streaming media, multicasting, security, and many other bandwidth-intensive applications like ERP and large file transfers.
The GS108T comes with a comprehensive set of L2 features, such as access control lists (ACL), 802.1x port authentication (MD5), enhanced QoS, rate limiting and IGMP snooping among others to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability.
In addition, the GS108T supports IEEE 802.3af standard for Power over Ethernet (PoE). It can obtain its power from either a PoE source or from an external AC power adapter. This gives an SMB flexibility when installing the switch in places where a power outlet is not present.
The GS108T comes with both an intuitive Web-browser GUI interface and Smart Control Center (Windows PC required), which offer simple Smart Managed Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization. Alternatively, you can use SNMP-based software to manage your Smart Managed Switch. NETGEAR ProSafe Smart Managed Switches are ideal for adding basic management to your unmanaged networks or extending your managed networks.
