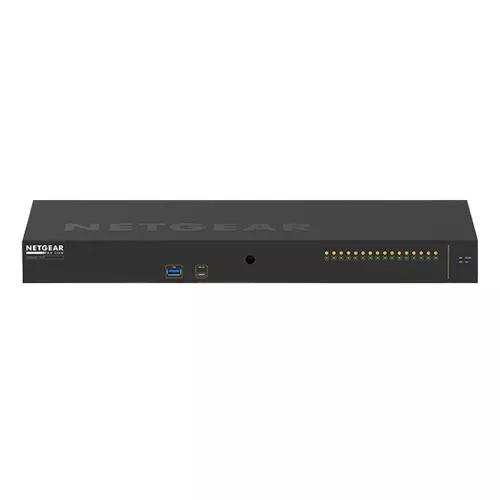

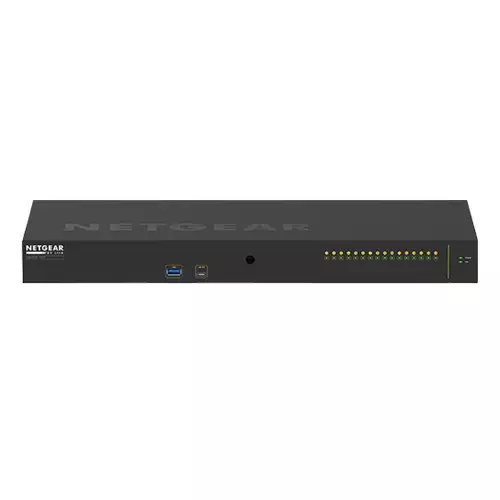

Netgear AV Line 16x1G/10G Fiber SFP+Managed Switch

Netgear AV Line 16x1G/10G Fiber SFP+ Managed Switch Specification

Netgear 24-Port ProSafe Gigabit Switch in Bangladesh

Features

BUILT FOR AV OVER IP

Pre-configured for out-of-the-box use

NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface

Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols

Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in

Special profiles for NVX, SVSI, Q-SYS, and Dante video profiles can be easily assigned to ports as needed

MOUNTING FLEXIBILITY

Rackmount versatility

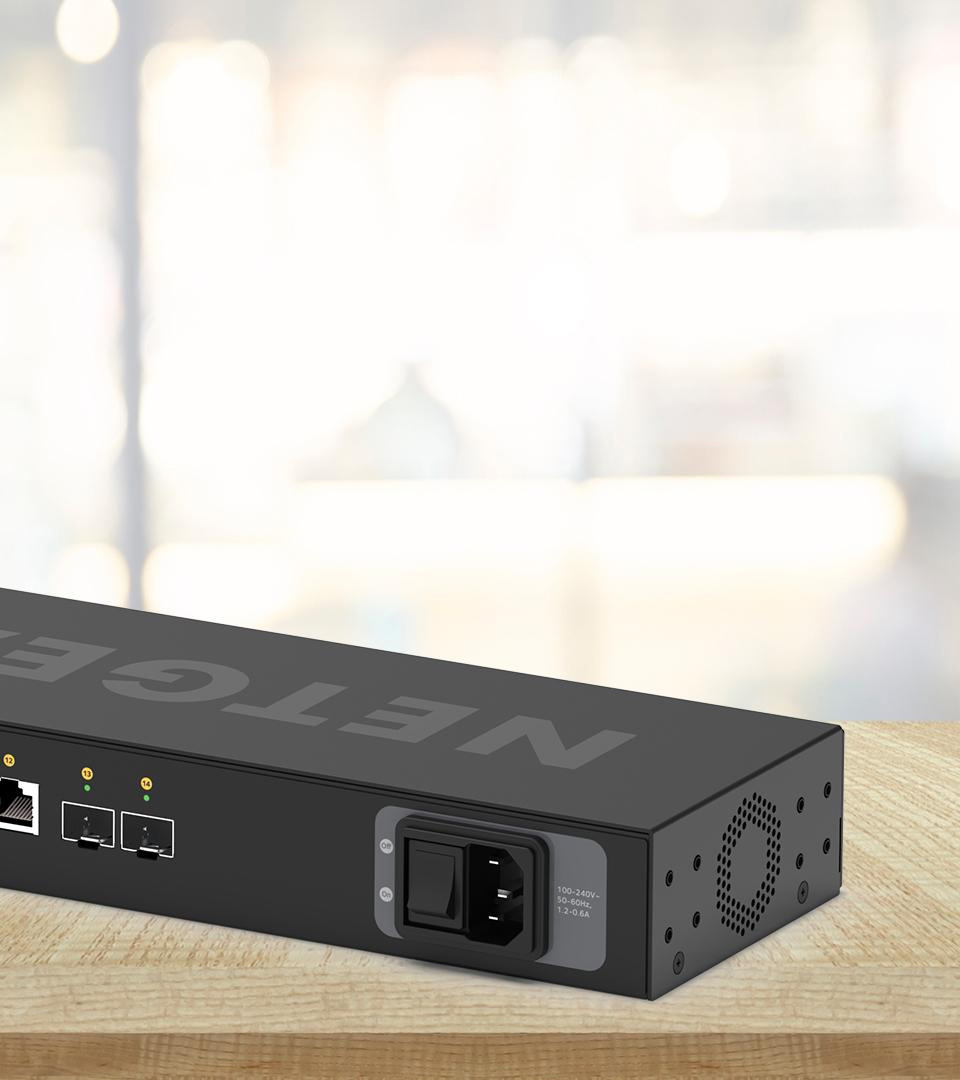

1U, 200mm deep rackmount with all power and Ethernet ports on the back

Reversed mounting possibility

Possible reversed mounting with ports in the front including recessed mounting to protect cables

Universal mounting availability

Mounting outside the rack made possible with bottom M5 and front M10 threaded holes

Adjustable fan functionality

Quiet mode with 56.7dB@25ºC (all ports used), fanless mode with max 25ºC ambient, 75ºC internal sensor, and 8 ports SFP+ used

ADVANCED FEATURES

Multi-switch link aggregation

16xSFP+ 1G/10G fiber ports for 1G/10G aggregation in M4250 star topologies (spine and leaf)

Layer 2/Layer 3 Switching

Common Layer 2 and Layer 3 switching engine across all M4250 models

Control methods abound

Built-in IT web GUI, console, telnet, and SSH consistent with other NETGEAR M4xxx series

Standard network features

The feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

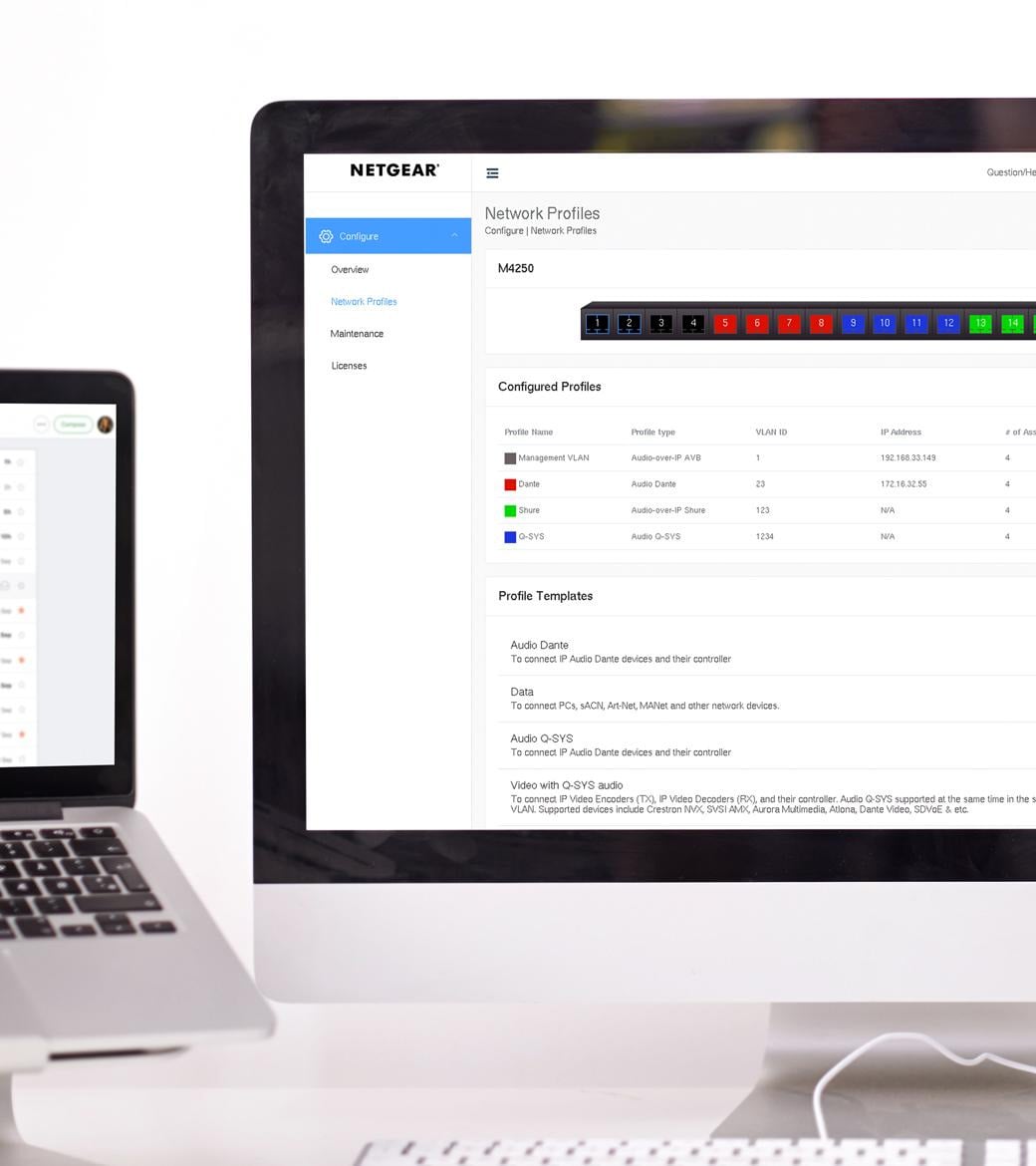

Easier configuration with new AV GUI

The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.

Use in noise-sensitive environments

Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.

Get up and running fast with little engineering time required

 the feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations

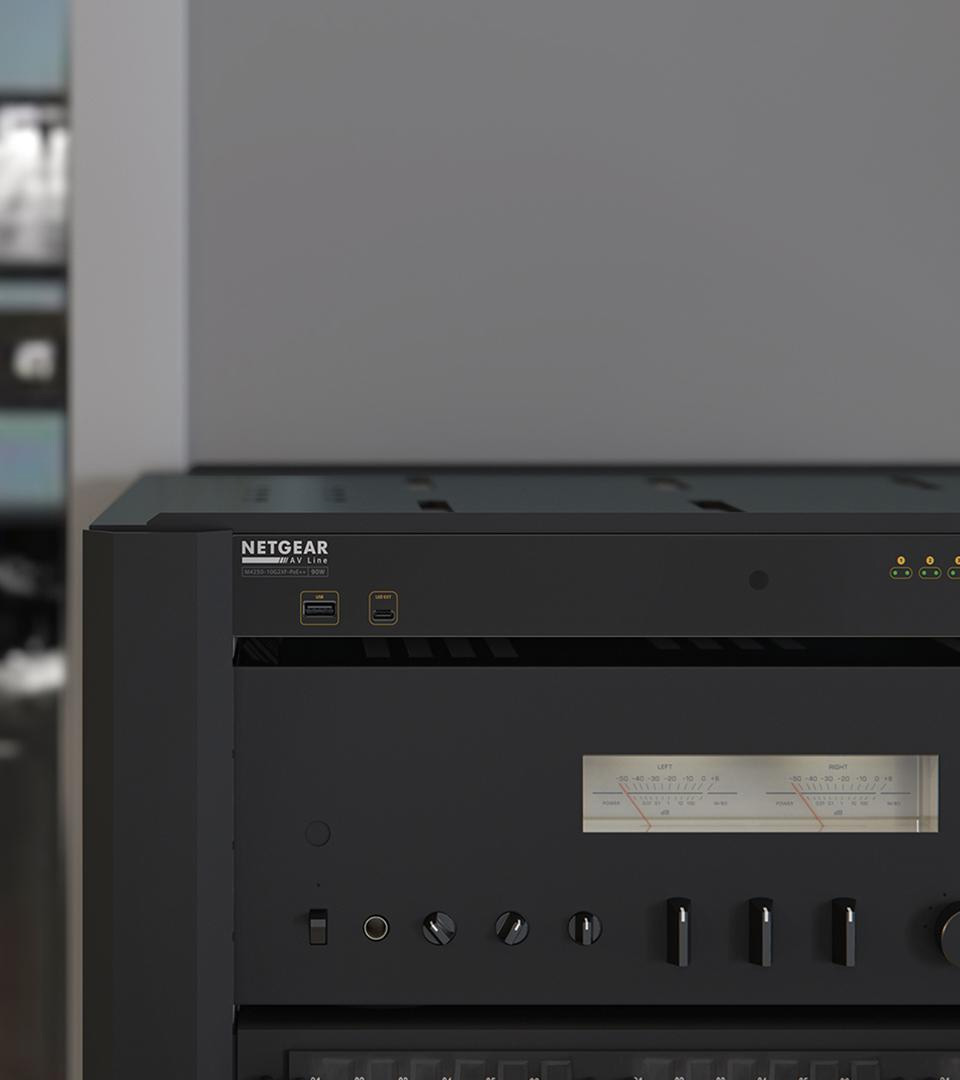

Multiple mounting options provide ultimate flexibility

Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
