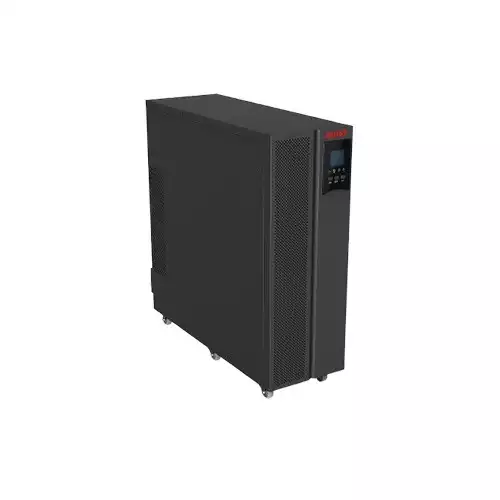

MUST EH9315 Three Phase Series 20KVA High Frequency Online UPS
MUST EH9315 Three Phase Series 20KVA High Frequency Online UPS

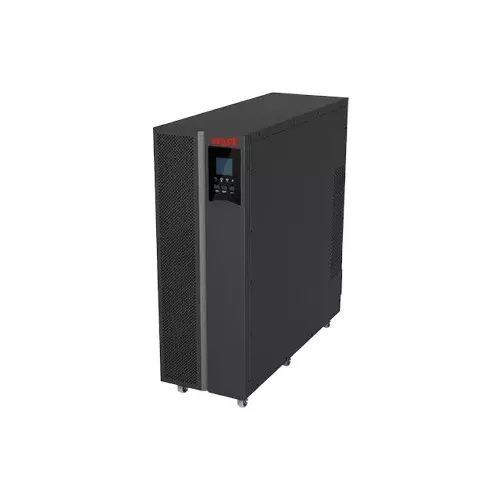

MUST EH9315 Three Phase Series 20KVA High Frequency Online UPS - 1

MUST EH9315 Three Phase Series 20KVA High Frequency Online UPS

0 Reviews
Stock : Up Coming
PID : P7342506005
Brand : MUST
Model : EH9315
Warranty : 2-Years
  • Rated Capacity - 20KVA/18KW
  • Frequency Range 45-55Hz at50Hz/54-66Hz at60Hz
  • Recharging Current - 10A max
  • Input Power Factor - ≥0.99

SPECIFICATIONS

Battery And Power

Capacity 20KVA/18KW
Battery Number Of Batteries Optional: DC±192V/204V/216V/228V/240V

(±16/17/18/19/20 pcs)Default: DC±192V

Recharging Current - 10A max
Input AC Input Connection Type - 3W+N+PE
Rated Input Voltage - AC 380V/400V/415V
Voltage Range - AC 208V~478V
Frequency Range - 45-55Hz at50Hz/54-66Hz at60Hz (Auto Sensing)
Input Power Factor - ≥0.99
Input current Harmonics - ≤3% (100% Non-linear Load)
Bypass Range - Bypass protection voltage upper limit: 220V: +25%

(optional: +10%, +15%,+25%)

230V: +20% (optional +10%, +15%)



240V: +15% (optional +10%)



Bypass protection voltage lower limit: -45% (optional -20%, -30%)

Bypass bypass protection range: ±10%
Output AC Output Connection Type - L+N+PE

Output Voltage - 220/230/240VAC



Output Power Factor - 0.8/0.9

Output Accuracy - ±1%



Output Frequency - Online mode: follow the mains frequency,

battery mode: 50/60Hz±0.2%



Output Harmonic Distortion - ≤ 2% linear load; ≤ 5% non-linear load

Special Features

Protection Overload Protection - Load ≤ 110%, 60min; ≤ 125%, 10min; ≤ 150%, 1min; ≥ 150%,

immediately transfer to bypass

Over Temperature Protection - Normal mode: switch to bypass mode;

battery mode: turn off the output immediately

Emergency Shutdown (EPO) - Turn off output immediately

Maintenance Bypass - Standard maintenance bypass switch

Others

Other Features Altitude Altitude <1500m, when it exceeds 1500m,

use derating according to GB/T 3859.2

Physical Specification

Color Black
Working Humidity 0%~95% (no condensation)
Operating Temperature 0~40℃
Dimension 690*250*734
Storage Temperature -25~55℃ (Battery: 0~40℃ )
Weight 46

Technical Info

Brand MUST
Model EH9315

Warranty Information

Warranty 2-Years

DESCRIPTION

MUST EH9315 Three Phase Series 20KVA High Frequency Online UPS in Bangladesh

MUST EH9315-20KS Three Phase Series Online UPS is a high-performance, industrial-grade power backup solution designed for critical systems that demand seamless and reliable power supply. With a 20KVA/18KW rated capacity, this high-frequency online UPS is ideal for data centers, industrial equipment, medical devices, and sensitive IT infrastructures. Operating on a three-phase input (3W+N+PE), it supports a wide input voltage range of AC 208V~478V and features an input power factor of ≥0.99, ensuring minimal power loss and superior efficiency. The unit's online double-conversion technology delivers pure sine wave output with a power factor of 0.8/0.9 and output voltage accuracy within ±1%, providing clean and stable power to connected devices. It offers zero transfer time between power sources, ensuring uninterrupted performance during outages or voltage fluctuations. The EH9315 also features extensive bypass protection options, high overload capacity, and harmonic distortion control (≤2% linear, ≤5% non-linear), guaranteeing optimal functionality in demanding environments. The battery bank configuration is flexible with options from ±192V to ±240V, allowing for tailored runtime and efficiency. Advanced communication interfaces such as RS232, RS485, SNMP, and optional relay cards make it suitable for remote monitoring and intelligent network management. With 94.5% efficiency in full load, maintenance bypass switch, and EPO for emergency shutdown, this UPS combines safety, scalability, and performance. Designed to operate in extreme conditions, it supports 0~40°C temperatures, 0–95% humidity, and altitudes up to 1500m. The compact design (690x250x734mm) and manageable weight (46kg) further enhance its suitability for enterprise and industrial installations. Get the MUST EH9315-20KS Online UPS today from Tech Land BD, where you'll find genuine products, expert support, and competitive pricing for all your professional power backup needs.


Does this UPS support zero transfer time?

Yes, it provides 0ms switching between power modes.

Can I monitor it remotely?

Yes, with RS232, RS485, or optional SNMP and relay cards.

Is the battery bank customizable?

Yes, it supports various configurations from ±192V to ±240V.
