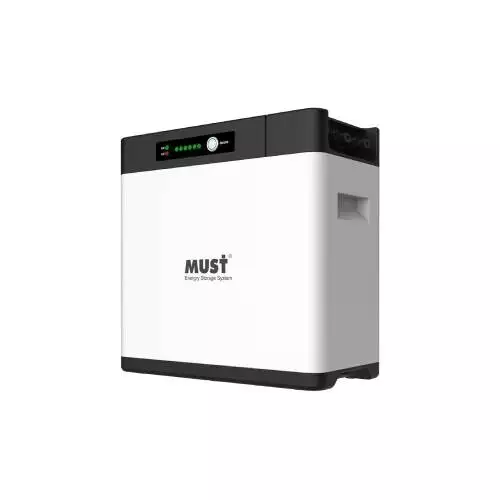

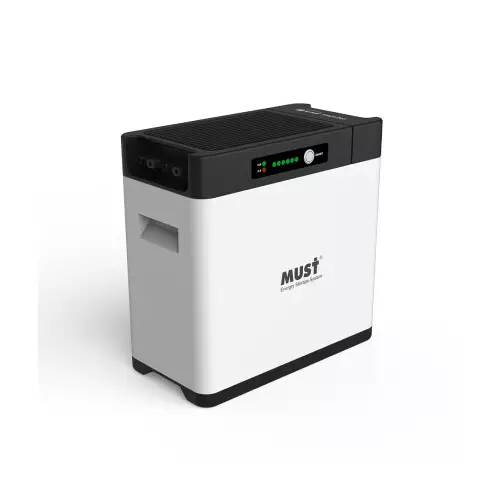

MUST Balcony Solar System PM-800 + HPC1800 800W Power Plant
- Output: 800W
- Output voltage: 230V
- Solar panel input power(W): 275-530W× 2
- DC input connections (group): MC4 × 2
SPECIFICATIONS
Battery And Power
Power: 2*500W max
Range of input voltage: 15V~70V
2330Wh
Max input current: 2*10A
Max output current: 11.9A
Max charging current: 50A (1C)
Max discharge current: 50A (1C)
Depth of discharge: 90%
Material of cell: LiFePO4
Cycles: >6000@80%Capacity
Storage Temperature: -20°C~50°C
Operating Temperature: -10°C~45°C
Battery Management System(BMS): OVP, UVP, OCP, SCP, OTP, UTP, etc
Recommended solar panel input power(W): 275-530W
Number of DC input connections (group): MC4 × 2
Maximum DC input voltage: 60V
Operating voltage range: 16-60V
Start-up voltage: 22V
MPPT tracking range: 22-55V
MPPT tracking accuracy: >99.5%
Maximum DC input current: 14A*2
Power: 2*500W max
Range of input voltage: 15V~70V
Nominal voltage: 44.8V
Charging voltage: 50.4V
Max. continuous output power: 800W
Nominal output voltage: 230V
Operating voltage range: 190-270V
Max. continuous output current: 3.47A
Nominal output frequency: 50Hz/60Hz
Output frequency range: 47.5-50.5Hz/58.9-61.9Hz
Maximum units per branch: 6set
THD: <5%
Power factor: >0.99
Peak efficiency: 96%
Protective class: Class I
Special Features
Over/under voltage protection
Over/under frequency protection
Anti-islanding protection
Over current protection
Over load protection
Over temperature protection
Protection grade: IP67
Working environment temperature : -40℃ ~ +65℃
Communication connection mode: Wifi/2.4G
Others
Plug-and-Play Made Effortless
Single unit connects to 4 PV panel
Maximum continuous Ac output power 2000VA
IP67 protection degree
Dual MPPT for maximum power generation and efficiency
WIFI remote monitoring
Multiple protection functions
Suitable for crystalline silicon and thin film PV panel
Physical Specification
N.W(kg): 2.52
Battery: 25kg
227*195.5*42mm
Battery: 390*200*395mm
Technical Info
Working status: Led light + Wi-Fi Signal Led light
Warranty Information
1 Year
DESCRIPTION
MUST Balcony Solar System PM-800 + HPC1800 | 800W Power Plant
The MUST Balcony Solar System PM + HPC PM-800 | 800W Power Plant is a modern, eco-friendly, and efficient power generation solution designed for homeowners, apartment dwellers, and small businesses who want to enjoy clean and reliable electricity. With a 2330Wh LiFePO4 battery offering more than 6000 cycles at 80% capacity, this system ensures long-lasting durability and stable energy storage. The system supports dual MPPT (Maximum Power Point Tracking) technology with an impressive >99.5% tracking accuracy, maximizing energy harvesting from solar panels even in varying weather conditions. Its input power capacity of 2 × 500W max with an operating voltage range of 15V–70V makes it suitable for a wide range of solar setups. On the output side, the PM-800 delivers 800W continuous power at 230V with 96% peak efficiency, a power factor >0.99, and THD
