| Stock Status | Out Of Stock |
| Product ID | 27423 |
| Brand | MSI |
| Product model | RTX 4090 SUPRIM LIQUID X |
| Warranty | 2 Years |
| Total Reviews | Based on 0 reviews. - Write a review |
| Memory | |
| Memory Size | 24GB |
| Memory Type | GDDR6X |
| Memory Bandwidth (GB/sec) | 21 Gbps |
| Memory Bus (Bit) | 384-bIt |
| Display | |
| Resolution | 7680x4320 |
| Graphics | |
| Graphics Chipset | NVIDIA GeForce RTX 4090 |
| CUDA Cores (Nvidia) | 16384 Units |
| Core Clock | Extreme Performance: 2640 MHz (MSI Center) Boost: 2625 MHz (GAMING & SILENT Mode) |
| Interface (PCI Express) | PCI Express Gen 4 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Battery And Power | |
| Recommended Power | 1000W (Min. 850W) |
| Power Connector | 16-pin x 1 |
| Ports | |
| Ports & Connectors | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
| Physical Specification | |
| Card Size | Expansion Slot Compatibility Full Height Height 5.5" / 140.00 mm Length 11.0" / 280.00 mm |
| Dimension | Card: 280 x 140 x 43 mm radiator + fan: 274 x 121 x 55 mm Tube length: L470 ± 10 x D11.2 mm |
| Warranty Information | |
| Warranty | 2 years |
Based on the Ada Lovelace architecture and designed to handle the graphical demands of 8K gaming and high frame rates, the MSI GeForce RTX 4090 SUPRIM LIQUID X Graphics Card brings the power of real-time ray tracing and AI to your PC games. The GPU features 24GB of GDDR6X VRAM and a 384-bit memory interface, offering improved performance and power efficiency over the previous Ampere-based generation.

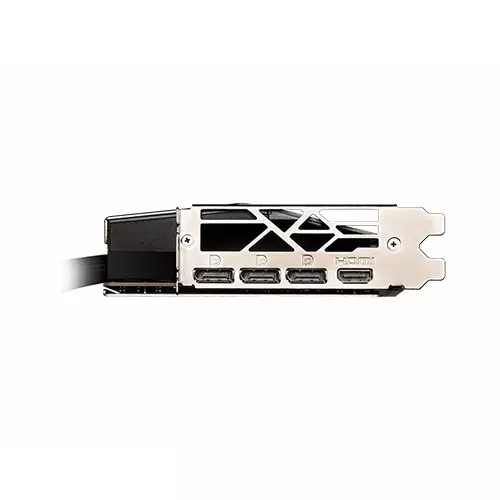

The front panel of the card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60 fps, 4K @ 120 fps, and even up to 10K. The RTX 4090 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 16384 cores to accelerate tasks using CUDA and other APIs.

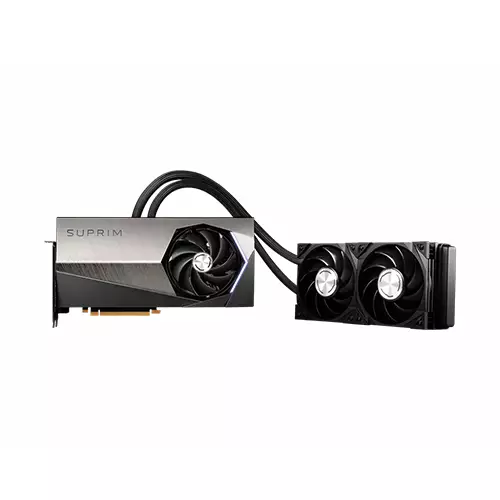

For cooling, MSI implemented a closed-loop liquid cooling system. It features a Triple Torx 5.0 fan, which has blades linked by ring arcs and a fan cowl that work together to stabilize and maintain high-pressure airflow. A copper base with fine micro-fins immersed in the liquid stream effectively transfers heat away from the VRAM and GPU. A low-profile pump has been integrated into the cold plate for optimal flow. A 240mm black aluminum radiator helps dissipate heat. For two MSI MEG Silent Gale P12 radiator fans, the anti-vibration gaskets sitting on the four corners of the fans are used to reduce rattling caused by the vibration while the fan blades are also carefully crafted to maximize airflow performance, optimized at a 32-degree angle to retain 58% of the airflow. Braided PVC tubes resist permeation and remain elastic even under intense environmental conditions. The closed-loop cooling solution requires no additional maintenance or assembly.
