Maxsun Geforce RTX 4060 8GB ICRAFT OC Graphics Card

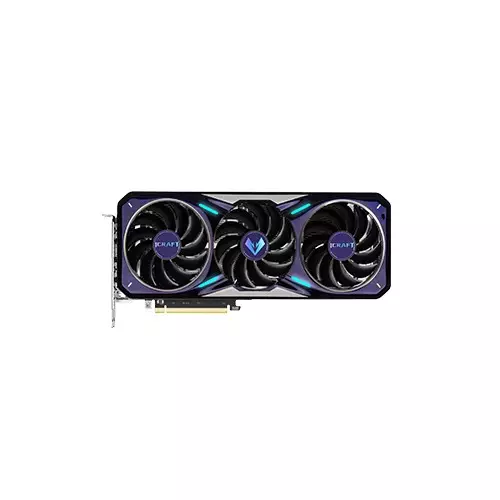

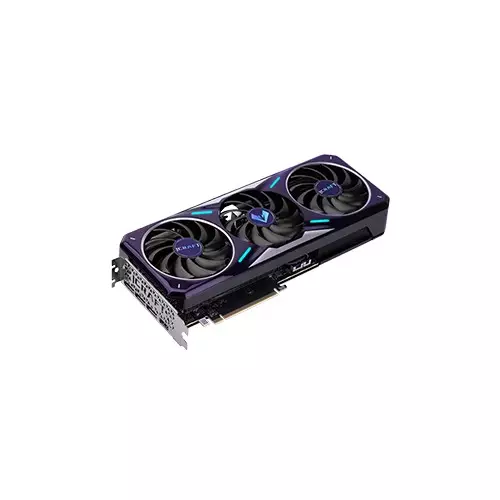

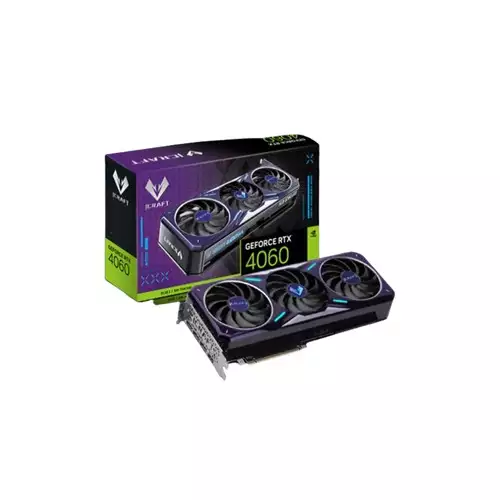

MAXSUN GeForce RTX 4060 8GB iCraft OC Graphics Card Overview

The MAXSUN GeForce RTX 4060 8GB iCraft OC Graphics Card is a high-performance graphics card that offers a powerful and efficient gaming experience. This card is part of the GeForce 40 series and is based on the GeForce RTX 4060. It features the NVIDIA Ada architecture and a fabrication process of 4 nm (TSMC 4N). The GPU model is AD107-400 (AD107), and it has a die size of 146 mm2. The card is equipped with 3072 CUDA cores, 96 Tensor cores, and 28 Ray Tracing cores. It also has 28 SMs, 96 TMUs, and 64 ROPs. The base clock speed of the card is 1830 MHz, and it can boost up to 2550 MHz, which is a 3.7% increase. The memory clock speed is 2125 MHz, with an effective memory clock speed of 17000 Mbps. The card has a memory size of 8192 MB and uses GDDR6 memory. The memory bus width is 128-bit, and the memory bandwidth is 272.0 GB/s. The card uses a PCI-Express 4.0 x8 interface and has a height of 2.5 slots. It requires a power connector of 1×16-pin and has a TDP/TBP of more than 115 W. The recommended PSU for this card is 450 W. The card does not support multi-GPU. The display outputs include 3 DisplayPort (DP 1.4a) and 1 HDMI (HDMI 2.1). The card supports DirectX 12.2, Vulkan 1.2, OpenGL 4.6, and OpenCL 3.0. In terms of performance, the card has a pixel fill rate of 163.2 GPixels/s, a texture fill rate of 244.8 GTexel/s, and a peak FP32 performance of 215.7 TFLOPS. The FP32 performance per watt is 136.2 GFLOPS/W, and the FP32 performance per mm2 is 107.3 GFLOPS/mm2.
