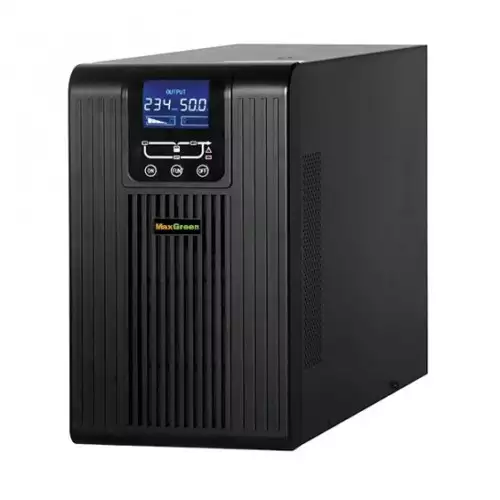

MAXGREEN MGO-W1KL 1KVA LONG BACKUP ONLINE UPS

MAXGREEN MGO-W1KL 1KVA LONG BACKUP ONLINE UPS

0 Reviews
Stock : Call For Price
PID : P0422506017
SKU : TLMGMGO-W1KL
Brand : Max Green
Model : MGO-W1KL
Warranty : 1 year
  • Capacity: 1KVA
  • Battery: SMF-12V
  • Output: 220V ±1%
  • Efficiency: ≥93%
Call For Price

SPECIFICATIONS

Battery And Power

Battery Capacity 1 KVA

Battery type SMF-12V/External

Battery voltage 36 VDC
Input Nominal voltage (Vac) 220/230

Voltage range (Vac) 110VAC～290VAC

Frequency (HZ) 45～66

Phase Single phase

Power Factor Full load ≥0.95
Output Power Factor 0.9br>
Voltage(V) 220/230/240±1%br>
Frequency (HZ) 50/60±0.05% (battery mode)br>
Transfer Time 0 msbr>
Efficiency ≥93%br>
Waveform True Sine Wave, Linear Load THD<3%; Non-linear Load THD<5%br>
Overload 105%~129% for 60s；130%~150% for 30s；Above 150% for 300msbr>
Crest Factor 3:1br>
Output socket EU/IEC/UK (optional)

Special Features

Protection Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection

Technical Info

Function Power Factor 0.9

Voltage(V) 220/230/240±1%

Frequency (HZ) 50/60±0.05% (battery mode)

Transfer Time 0 ms

Efficiency ≥93%

Waveform True Sine Wave, Linear Load THD<3%; Non-linear Load THD<5%

Overload 105%~129% for 60s；130%~150% for 30s；Above 150% for 300ms

Crest Factor 3:1

Output socket EU/IEC/UK (optional)

DC start Yes

Backup time As per customer requirement

Communication function RS232(USB/dry contact are optional)

SNMP (optional) Can be network monitored by SNMP adapter

Display LED display UPS work status, LCD display UPS work parameters

Noise (dB) <55(within 1 meter)

Parallel function No

Test Standards IEC 62040-2, IEC 62040-3, EN 62040-1, EN 62040-2
Indicators Alarm
Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection

DESCRIPTION

MAXGREEN MGO-W1KL 1KVA LONG BACKUP ONLINE UPS in Bangladesh

To provide equipment with excellent technical features, the MaxGreen UPS series uses active input PFC rectifiers (Power Factor Correctors) and the benefits of PWM technology with IGBT. Most of the time, they fix issues with the mains energy without using the battery, extending its useful life. They are perfect for delivering 3kVA or less essential systems that need a high-reliability, high-quality supply with affordable operation and maintenance. Data is sent locally via an LCD display and LED mimic panel. Users may check the unit's status and acquire information about its surroundings thanks to the communications interface and robust software.  Two Years Warranty (1 Year Battery + 2 Years Service) is included with this best-in-class security and manageability in a space-saving design.
