MAXGREEN MGO-S1K(PX1K) SPECIFICATION |
| Capacity | 1KVA/900W
|
Input Voltage
| 220VAC
|
Output Voltage
| 220VAC
|
Frequency (Battery Mode)
| 50Hz+/-0.05Hz
|
Battery
| - Battery Type Value Regulated Maintainance Free Lead Acid(VRLA) for standard Model with internal battery
- Battery Voltage/Capacity 3X12V/7AH
- Recharge Time ~5Hours
- Max recharge current 1.5A
- Floating charge Voltage 27.3V
|
Frequency
| 40~70Hz
|
Power Factor
| 0.99@Full Load |
Voltage Range
| 110V~300V Halfload 176V~300V Full load
|

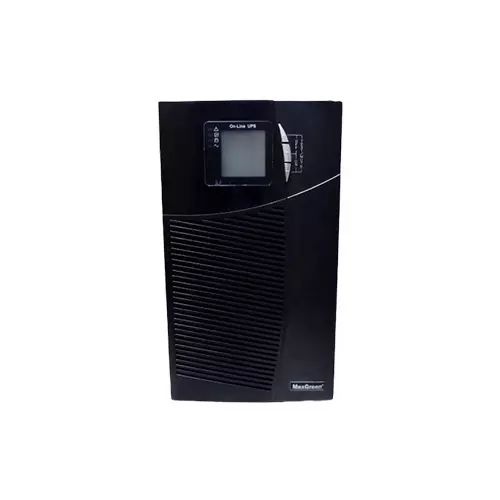

MAXGREEN MGO-S1K(PX1K) 1 KVA ONLINE UPS IN BANGLADESH
1 KVA MaxGreen MGO-PX1K The online UPS has a nominal input voltage of 220VAC and a voltage range of 110V300V. Full load 176V300V, Frequency Range 4070Hz, Power Factor 0.99@Full Load Output voltage is 220VAC, voltage regulation is 1%, and the frequency (Sync.Mode) is 47Hz53Hz. Frequency (Bat.Mode) 50Hz+/-0.05Hz, THDv 2% linear Load 6% non-linear Load, Waveform Pure Sinewave Line Mode—Bat Mode 0ms, Inv Mode—Bypass Mode 4ms. AC-AC efficiency is 89%, ECO efficiency is 94%, and battery mode efficiency is 88%. Charger and battery 3X12V/7AH Voltage/Capacity Battery Value Type Regulation of Maintenance Free Lead Acid (VRLA) model with inbuilt battery. 5 hours to recharge Max recharge current 1.5A. The floating charge 27.3V is the voltage. LCD display, buzzer alarm Bat.Mode/Bat. Low/Overload/Fault. Dimensions: 145(W)220(H)328(L)mm 10.8 kg in weight The humidity in the environment is 597% (non-condensing). 040â„ is the operating ambient temperature. S 232/SNMP (option)/USB communication port (option).
