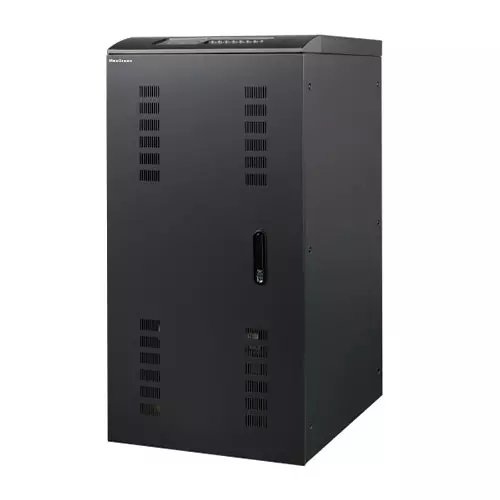

MAXGREEN MGO-B3B 10KVA (3/3)-LF ONLINE UPS

MAXGREEN MGO-B3B 10KVA (3/3)-LF ONLINE UPS

0 Reviews
Stock : Discontinued
PID : P00025064291
SKU : MGO-B3B 10KVA
Brand : Max Green
Model : B3B 10KVA
Warranty : 1 Year
  • Type: Online UPS
  • Capacity: 10kVA
  • Noise (dB): <65(1m)
  • Working Temperature(ºC): 0~40

DESCRIPTION

MAXGREEN MGO-B3B 10KVA (3/3)-LF

Model
3B3 10K
Capacity
10kVA
Input features

Input voltage(Vac): 380±25%

Frequency(HZ): 40-70Hz Automatically select synchronization range according to grid frequency

Bypass synchronous range (Hz:  50±5%(±10% for optional)

Phase:  3φ4W+PE

Battery voltage(VDC): 384

Battery Quantity(PCS): 30-34 can be set

Output features

Power factor 0.8/0.9

Voltage(V) L-N:220±1% L-L:380±1%

100% three-phase load unbalanced voltage stability: ≤2%,allow 100% unbalanced

Frequency(HZ):  Mains normal,same as mains frequency;Mains abnormal,50±0.2%

Transfer Time(ms): 0

Parallel operation mode(parallel): 8sets in parallel

Waveform: Linear Load THD<3%;Non-linear Load THD<5%

Overload capacity: 125% full load keep 10min;150% full load keep 1min;

Crest Factor: >3:1

Others

Manual maintenance bypass: with no transfer time bypass maintenance switch

Display : Genaral LCD Genaral LCD/7 inches touchable LCD

Noise (dB): <65(1m)

Alarm: Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection

Working Temperature(ºC): 0~40
