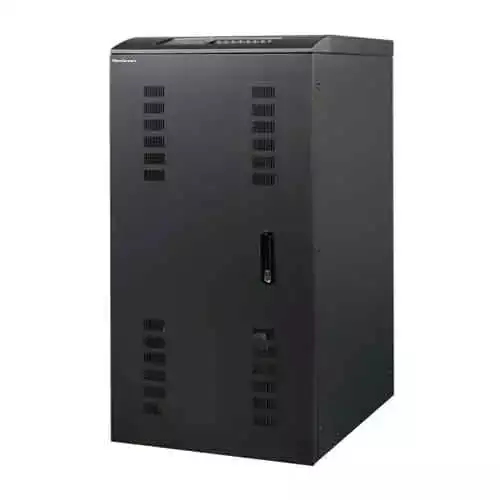

MAXGREEN 3B3 30K (3/3)-LF 20KVA ONLINE UPS Specification
Main Feature
| Capacity: 30000VA Phase: 3φ4W+PE Battery voltage(VDC): 384 Crest factor: >3:1 Display Type General LCD/7 inches touchable LCD Load Capacity Overload: 125% load keep 10min,150% load keep 30s Input Voltage 380±25% Noise Level <58(1m) Alarm Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection
|
Input Features
| Frequency 50/60±0.5%(Free oscillation) Power Factor 0.8/0.9 Voltage Range 220±1%, Isolation transformer output
|
Output Features
| Backup Time Battery supply life can be configured freely Voltage Range 220±1%, Isolation transformer output Power Factor 0.8/0.9 Type of Wave Sine Wave, THD<3%
|
Warranty
| 1 Year
|
MAXGREEN 3B3 (3/3)-LF 30KVA ONLINE UPS in Bangladesh
MaxGreen UPS series, include active input PFC rectifier (Power Factor Corrector) and make use of the advantages of PWM technology with IGBT to obtain equipment with high technology features. They resolve mains electricity problems without resorting to the use of the battery in most cases, thereby increasing its service life. They are ideal for supplying critical systems of up to 3kVA that require high reliability and quality supply with low operating and maintenance costs. Data is provided locally through the mimic panel with an LCD display. The communications interface, together with its powerful software, allows users to monitor the status of the unit and provides information on its environment. It comes along with Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, and over-temperature protection. The MaxGreen 3B10K Transformer Base Online UPS has 01 years of warranty.
