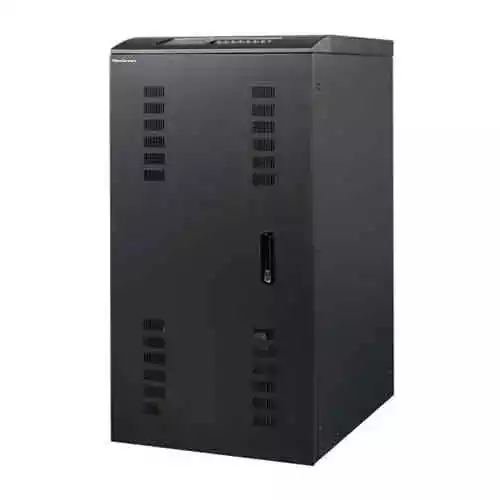

MAXGREEN 3B3 20K (3/3)-LF 20KVA ONLINE UPS (WITHOUT BATTERY)
MAXGREEN 3B3 20K (3/3)-LF 20KVA ONLINE UPS (WITHOUT BATTERY)-cover-thumbnail

MAXGREEN 3B3 20K (3/3)-LF 20KVA ONLINE UPS (WITHOUT BATTERY)

Stock : Out of Stock
PID : P0422506011
Brand : Max Green
Model : 3B20K-I-20KVA
Warranty : 1 year
★ ★ ★ ★ ★
0 Reviews
  • Noise Level: <58(1m)
  • Capacity: 20000VA
  • Waveform: Sine Wave, THD<3%
  • RS232 / RS485 interface

    • MAXGREEN 3B3 20K (3/3)-LF 20KVA ONLINE UPS Specification

    Main Feature

    Capacity: 20000VA

    Phase: 3φ4W+PE

    Battery voltage(VDC): 384

    Crest factor: >3:1

    Display Type General LCD/7 inches touchable LCD

    Load Capacity Overload: 125% load keep 10min,150% load keep 30s

    Input Voltage 380±25%

    Noise Level <58(1m)

    Alarm Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection

    Input Features

    Frequency 50/60±0.5%(Free oscillation)

    Power Factor 0.8/0.9

    Voltage Range 220±1%, Isolation transformer output

    Output Features

    Backup Time Battery supply life can be configured freely

    Voltage Range 220±1%, Isolation transformer output

    Power Factor 0.8/0.9

    Type of Wave Sine Wave, THD<3%

    Warranty
    		1 Year

    MAXGREEN 3B3 20K (3/3)-LF 20KVA ONLINE UPS in Bangladesh

    MaxGreen UPS series, include active input PFC rectifier (Power Factor Corrector) and make use of the advantages of PWM technology with IGBT to obtain equipment with high technology features. They resolve mains electricity problems without resorting to the use of the battery in most cases, thereby increasing its service life. They are ideal for supplying critical systems of up to 2kVA that require high reliability and quality supply with low operating and maintenance costs. Data is provided locally through the mimic panel with an LCD display. The communications interface, together with its powerful software, allows users to monitor the status of the unit and provides information on its environment. It comes along with Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, and over-temperature protection. The MaxGreen 3B10K Transformer Base Online UPS has 01 years of warranty.
