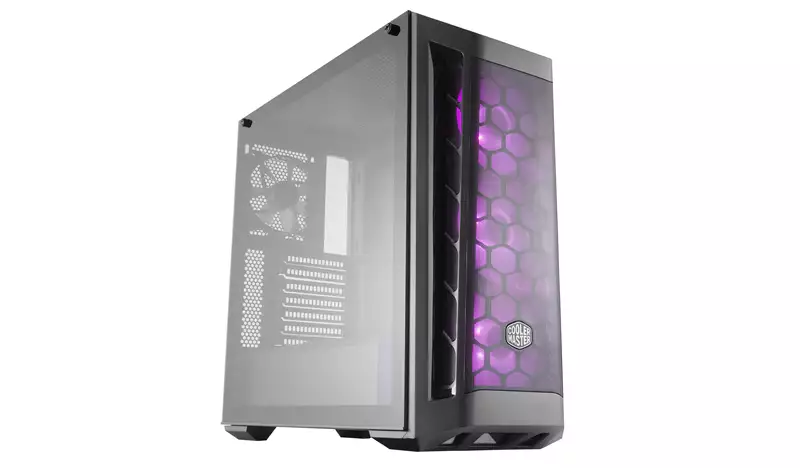

Cooler Master MasterBox MB511 RGB Mid Tower Case

MasterBox MB511 RGB

MESH FRONT PANEL

The mesh front panel offers efficient airflow for demanding systems.

PERFORMANCE INTAKE

Large intakes on each side of the front panel pay tribute to high performance cars.

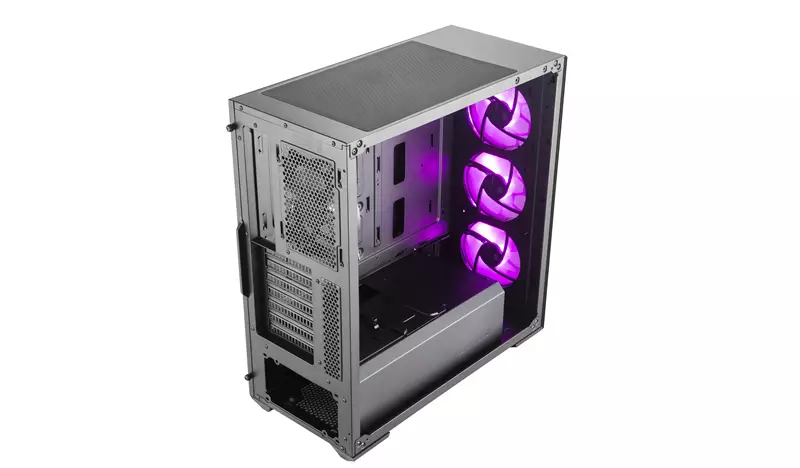

RGB LED FANS AND LIGHTING CONTROL

Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect. One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.

EXCELLENT THERMAL PERFORMANCE

Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

FAN AND RADIATOR SUPPORT

    - Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.

    - Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.

    - Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.

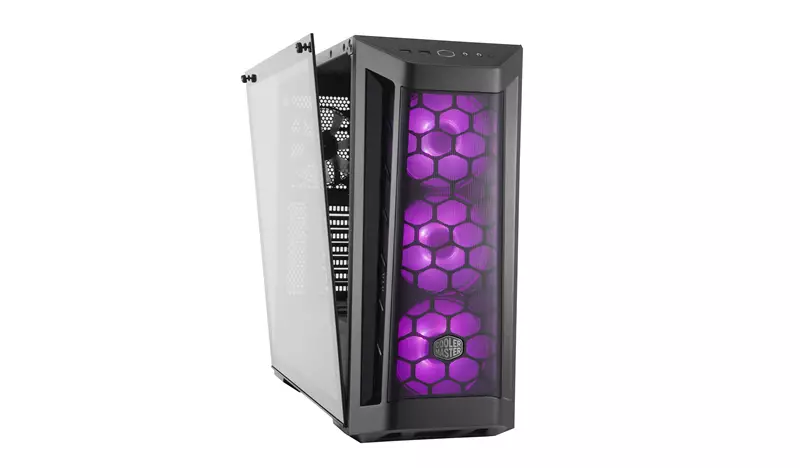

EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL

Showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two “captive” screws are held in place with rubber so they are not misplaced.

SSD BRACKET

Mount an extra SSD on the PSU shroud for more storage.

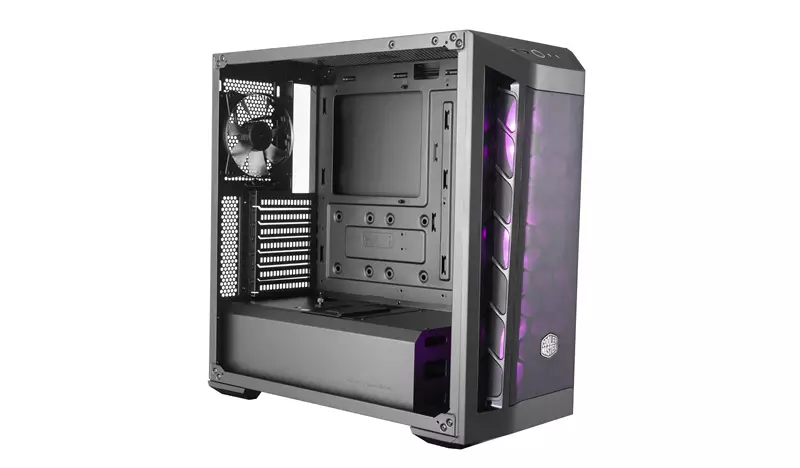

EXPANDING THE POSSIBILITIES

The spacious interior fits all standard motherboards for your gaming needs.

MAIN COMPONENTS CLEARANCE

The MB511 RGB case supports CPU Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm and Power Supplies up to a length of 180mm.

Specification:

●︎ Materials Steel, Plastic, Tempered glass

●︎ Dimensions: 496(L) x 217(W) x 469(H) mm

●︎ Motherboard: Support ATX (up to 272mm width), Micro-ATX, Mini-ITX

●︎ Expansion Slots: 7

●︎ 5.25″ Drive Bays: No

●︎ Combo 3.5″/2.5″ Drive Bays: 2 (Max. 2)

●︎ SSD Drive Bays: 5 (Max. 6)

●︎ I/O Panel USB 3.0 x 2, Audio In / Out

●︎ RGB Contro:RGB controller included

●︎ 1 to 3 RGB splitter cable included

●︎ Pre-installed Fan(s) Front: 120mm RGB Fan x 3

●︎ Rear: 120mm x 1

●︎ Fan Support Top: 120mm x 2 / 140mm x 2

●︎ Front: 120mm x 3 / 140mm x 2

●︎ Rear: 120mm x 1

●︎ Radiator Support Front: 120 / 140 / 240 / 280 / 360mm radiator. (75mm clearance)

●︎ Top: 120 / 240mm

●︎ Rear: 120mm

●︎ Clearances CPU Cooler: 165mm / 6.49″

●︎ PSU: 180mm / 7.08″

●︎ Graphics card: 410mm / 16.10″

●︎ Cable Routing Behind MB Tray: 19mm / 0.74″

●︎ Dust Filters Front, Top, Bottom

●︎ Power Supply Support Bottom mount, ATX
