Masterbox NR200 MINI Case Specification
AVAILABLE COLOR
| WHITE
|
MATERIALS
| STEEL, PLASTIC, MESH, TEMPERED GLASS
|
VOLUME
| 18.25L (EXLC. PROTRUSIONS)
|
MOTHERBOARD SUPPORT
| MINI DTX, MINI ITX, MAX MB SIZE: 244 X 226MM (L X H)
|
EXPANSION SLOTS
| 3
|
DRIVE BAYS
| 5.25" DRIVE BAYS 0 3.5" DRIVE BAYS 1 (MAX. 2) 2.5" / 3.5" DRIVE BAYS (COMBO) 1 2.5" DRIVE BAYS 2 (MAX. 3)
|
I/O PANEL
| 2X USB 3.2 GEN 1 TYPE-A, 1X 3.5MM HEADSET JACK (AUDIO+MIC)
|
PRE-INSTALLED FANS
| TOP 2X 120MM 650-1800RPM PWM (SICKLEFLOW) FRONT N/A REAR N/A BOTTOM N/A
|
FAN SUPPORT
| TOP 2X 120MM REAR 1X 92MM BOTTOM 2X 120MM (RECOMMENDED SLIM FANS FOR GPUS WIDER THAN 2.5 PCI SLOTS) FAN SUPPORT - SIDE 2X 120/140MM
|
RADIATOR SUPPORT
| TOP N/A REAR 92MM (NOT COMPATIBLE WITH VERTICAL GPU INSTALLATION) BOTTOM 120MM, 240MM, (RECOMMENDED FOR CUSTOM LOOPS ONLY) SIDE 120MM, 140MM, 240MM, 280MM, (NOT COMPATIBLE WITH VERTICAL GPU INSTALLATION)
|
CLEARANCE
| CPU COOLER 76MM (GPU IN VERTICAL POSITION), 153MM(TEMPERED GLASS SIDE PANEL), 155MM (VENTED STEEL SIDE PANEL) PSU 130MM GFX L: 330MM (INCL. POWER CONNECTOR), H: 156MM (INCL. POWER CONNECTOR), W: 60MM (TRIPLE SLOT)
|
DUST FILTERS
| TOP, BOTTOM, LEFT SIDE, RIGHT SIDE
|
POWER SUPPLY
| SUPPORT SFX, SFX-L
|
WEIGHT
| 5.93 KG
|
SIZE
| MINI ITX
|
DIMENSIONS
| 376 X 185 X 292MM INCL. PROTRUSIONS, 360 X 185 X 274MM EXCL. PROTRUSIONS
|
Masterbox NR200 MINI Case in Bangladesh
THE COMMUNITY'S NR200
Ever since Cooler Master’s inception as a company, we have celebrated uniqueness alongside a community that dares to embrace their inventive identity.
With PC setups as a medium for self-expression, the popular MasterBox NR200 is now available in 4 brand new colorways, Flamingo Pink, Caribbean Blue, Sunset Orange, and Nightshade Purple to match the bold personalities built to stand out.
In close collaboration with our community of builders, the 4 colors are the result of a Reddit survey hosted by our fellow PC enthusiasts.
2 NEW COLORWAYS
The highly-acclaimed MasterBox NR200 is now available in Black & White.
Selected by our fans on Reddit r/sffpc, and made with thick, powder coated SGCC steel, these chassis will stay clean, bright, colorful and durable even in harsh traveling conditions.
LIMITED SIZE, UNLIMITED OPTIONS
The NR200 boasts larger ATX chassis features while retaining a space-efficient form factor.

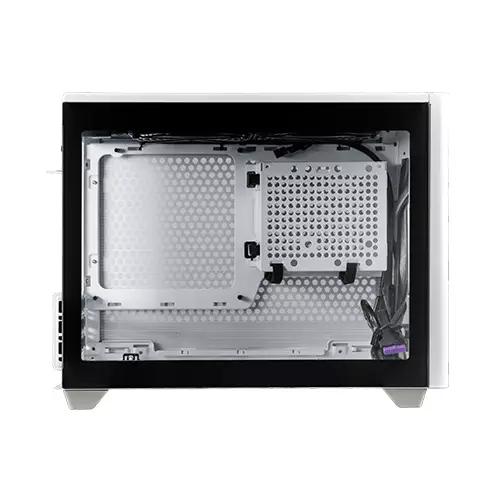

The NR200 comes with a choice of side panels: vented steel for unrestricted airflow, or crystal-clear tempered glass to reveal the beauty of a computing beast.
A PCI Riser is included for vertical GPU installation, ideal for showcasing or feeding it fresh air from the side with the vented panel.
UNRESTRICTED COOLING POTENTIAL
The NR200 bears unlimited cooling potential: including two 120mm SickleFlow fans, and capable of holding up to 7 fans in total.
The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back.
TRIPLE-SLOT GPU SUPPORT AND INCLUDED VERTICAL RISER CABLE
Triple slot GPUs supports a maximum length of 330mm and maximum width of 156mm, fitting the largest, high-end graphics cards.
A custom-sized riser cable is included to vertically showcase a graphics card, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.
EASY, TOOL-FREE ACCESS
All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.
360 DEGREE ACCESSIBILITY
Every panel and frame part of the NR200 can be dismantled.
Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.
MULTIPLE MOTHERBOARD SUPPORT OPTIONS
Compatible with Mini-ITX and Mini DTX.
The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm.
OUT-OF-THE-BOX CUSTOM COOLING SUPPORT
Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.
