Scan and copy
| - Scan speed: Colour: up to 33 cm/sec, Greyscale: up to 33 cm/sec
- Resolution: 1200 dpi
- Technology: CCD scanning technology and LED-based illumination system
- Accuracy: 0.1% ±1 pixel
- Data capture (color/mono): 48-bit/16-bit
- Scan format: PDF, PDF/A, TIFF, JPEG, JPEG2000, DWF, CALS (black and white), multi-page PDF generation
- Scan destinations: File, email, USB, HDD, network folder, FTP, print
- Settings: Type of original, image crop and align preview, lightness, saturation and RGB controls, white point and black point adjust, sharpen/blur, mirror copy, enlarge/reduce, paneling, tiling, nesting, accounting, batch, multipage PDF generation, invert, collate copy with reprint
- Maximum scan width: 1067 mm
|
Applications
| Digital fine art; Graphics design; Line drawings; Maps; Orthophotos; Photos; Renderings; Presentations
|
Media
| - Handling: Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media. Face-down, front entry, rear exit, rewind to front, use document return guide for front-return. Automatic high adjustment of scanner bridge for thick originals up to 15 mm (0.6 in) thickness.
- Types: Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper. Varying condition documents: old, delicate, folded, creased, crumpled, damaged originals (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp-edged, metal clamped, or burned surfaces or transparencies)
- Maximum media width 1118 mm
- Maximum media thickness 15 mm
|

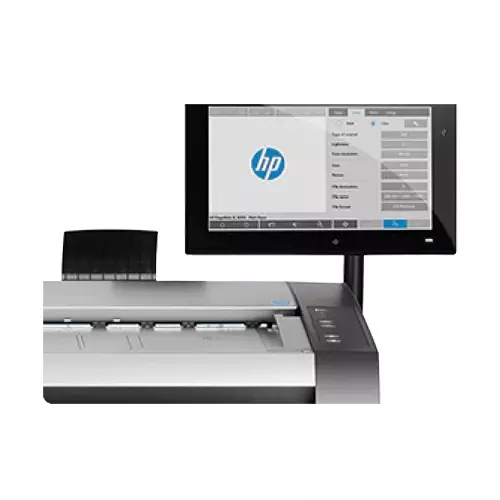

| Panel PC | - User interface: 396 mm (15.6 inch) large touchscreen to preview and enhance images
- Embedded operating system: Windows 10
- Processor: Intel Core i7
- Memory: 4 GB
- Hard disk: 500 GB
|
Connectivity
| - Interfaces Dual Gigabit Ethernet (1000Base-T), SuperSpeed USB 3.0
- Drivers Windows drivers for compatible HP PageWide XL and HP DesignJet Printers
|
Dimensions (w x d x h) And Weight
| - Scanner 1530 x 930 x 1660 mm
- Shipping 1910 x 680 x 800 mm
- Scanner 71 kg
- Shipping 118 kg
|
Power
| - Consumption 130 W (scanning), 39 W (ready), < 1 W (sleep)
- Requirements Input voltage (auto-ranging): 100-240 V (±10%), 50/60 Hz, 5 A max
|
