HORED AI106 6-PORT 100MBPS AI POE SWITCH
- POE pin: 1/2(+)，3/6(-)
- Transfer Rate: 100Mbps full Duplex
- Bandwidth: 1.2Gbps
- Operating Temperature: 0°~40°C
Product Pricing
SPECIFICATIONS
Networking & Connectivity
Battery And Power
External power adapter：60W
Ports
2 10/100Mbps RJ45 port uplink(Port5~port6)
Others
Safety regulation: CE/ROHS/FCC/CCC
AI Smart POE Switch,4*100Mbps RJ45 port(POE is available),
2*100Mbps Uplink.Support the management of Apollo cloud.
5 working modes:
Standard switching mode:All ports communicate freely;
AI VLAN:Avoid the internet storm and enhance the network ability;
AI Extend:Extend 250M transmission;
AI PoE:Automatic self checking, reboot the device while find it fake dead;
AI QoS:Video data first, more fluent transmission.
Physical Specification
Operating Humidity：10%~ 90%，Non-condensing
Technical Info
RESV
LINK/ACT
Network delay（100 to 100M bps）：maximum 20 μs (using 64 byte packet)
Frame filtering and transmission rate:
10M port maximum 14,880pps
100M port maximum 148,810pps
Warranty Information
DESCRIPTION

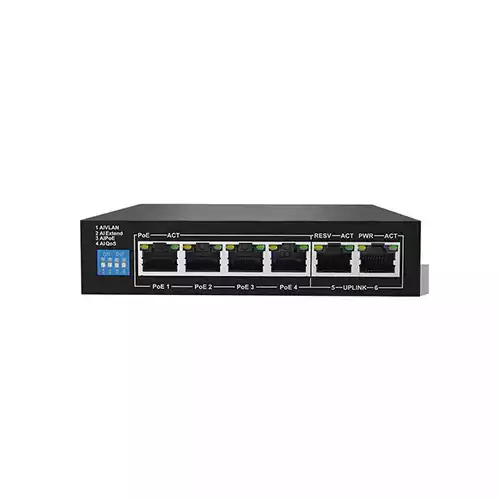

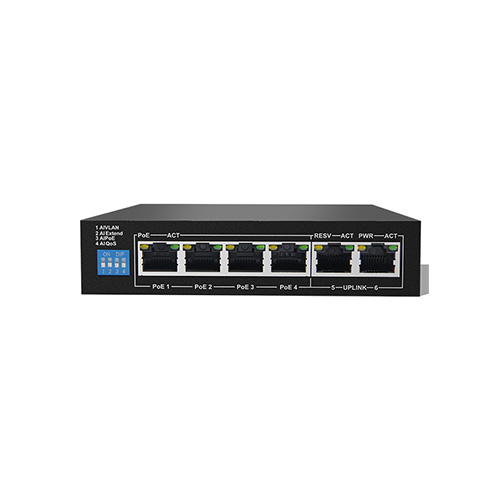

HORED AI106 6-PORT 100MBPS AI POE SWITCH
The HORED AI106 is a 6-port switch designed for network connectivity. It features four Power over Ethernet (PoE) ports with speeds of up to 100Mbps, which are located on ports one through four. Additionally, there are two uplink ports, numbered five and six, which operate at the same speed but do not have PoE capabilities. The switch supports several network protocols and standards, including IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, and IEEE 802.3at. It has a bandwidth of 1.2Gbps and a maximum network delay of 20μs when using a 64-byte packet. The frame filtering and transmission rate varies depending on the port speed, with the maximum transmission rate being 148,810pps for 100M ports. The switch also features LED indicators for power, reserved status, link/activity, and POE pin status. The maximum power consumption for a single port is 30W, and the external power adapter provides up to 60W of power. The switch has dimensions of 125mm x 75mm x 27mm and weighs 0.5kg. It can operate in temperatures ranging from 0°C to 40°C and humidity levels of 10% to 90%, non-condensing. The switch meets several safety regulations, including CE/ROHS/FCC/CCC, and comes with a 1-year replacement warranty. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Hored Switch available at Techland BD is well recognized. The large selection of Switch available at Techland BD is well recognized.
