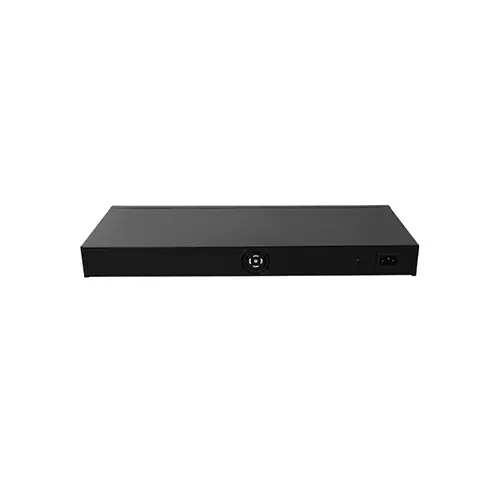

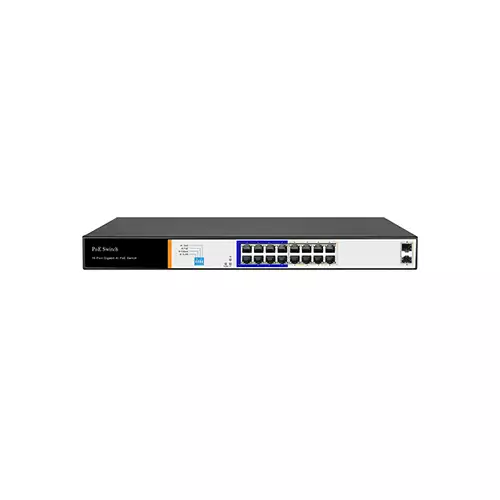

HORED AI1016G 16-PORT GIGABIT AI POE SWITCH
- Bankplane bandwidth：36Gbps
- Packet forwarding rate：26.8M Mpps
- POE pin: 1/2(+)，3/6(-)
- Operating Temperature: 0°~40°C
SPECIFICATIONS
Networking & Connectivity
IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Battery And Power
Single port max.30W
Ports
2 gigabit SFP port
Others
Input power: 100-240V/50-60Hz
Safety regulation: CE/ROHS/FCC/CCC
AI Smart POE Switch,2 1000Mbps SFP ports, 16 1000M RJ45 ports(250M POE
is available).Support the management of Apollo cloud.
5 working modes:
Standard mode: All ports communicate freely;
AI VLAN: Avoid the internet storm and enhance the network ability;
AI Extend: Extend 250M transmission;
AI PoE: Automatic self checking, reboot the device while find it fake dead;
AI QoS，Video data first, more fluent transmission.
Physical Specification
Operating Humidity：10%~90%，Non-condensing
Technical Info
16 POE indicator light
2 SFP indicator light
1 Power indicator light
Bankplane bandwidth：36Gbps
Packet forwarding rate：26.8M Mpps
Support 8K MAC address list depth
Warranty Information
DESCRIPTION
HORED AI1016G 16-PORT GIGABIT AI POE SWITCH
The HORED AI1016G 16-Port Gigabit AI PoE Switch is a network switch that conforms to several IEEE standards. These include IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3at. The switch comes with 16 10/100/1000Mbps RJ45 ports, as well as 2 gigabit SFP ports. It also features 16 10/100/1000Mbps RJ45 PoE ports with a total power budget of 150W and single port max of 30W. The switch has indicator lights for 16 Link/Act connections, 16 POE connections, 2 SFP connections, and 1 power connection. Its performance includes storage forwarding for forwarding mode, a bankplane bandwidth of 36Gbps, a packet forwarding rate of 26.8M Mpps, and support for an 8K MAC address list depth. The input power required is 100-240V/50-60Hz. The dimensions are 440mmx180mmx44mm. The switch comes with a 1-year replacement warranty. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Hored Switch available at Techland BD is well recognized. The large selection of Switch available at Techland BD is well recognized.
