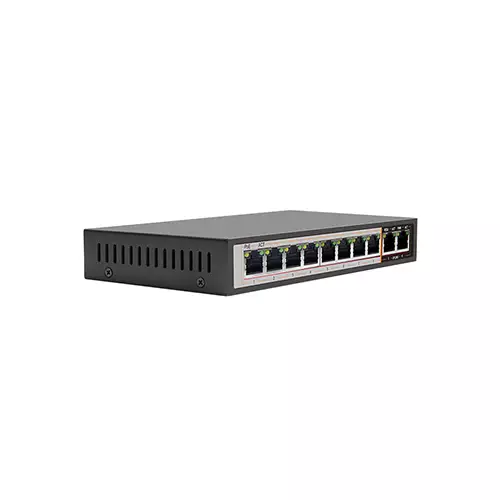

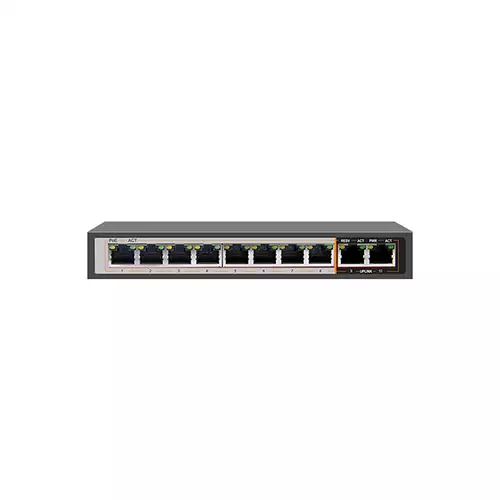

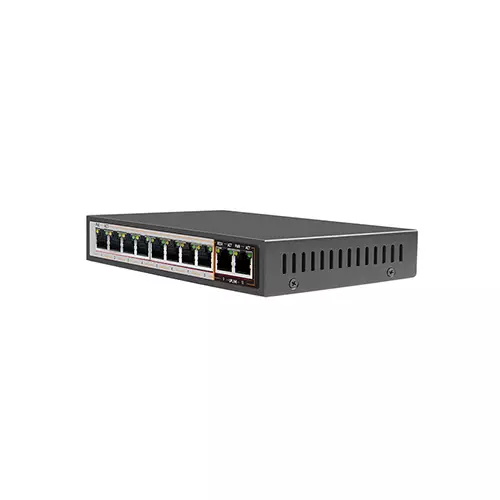

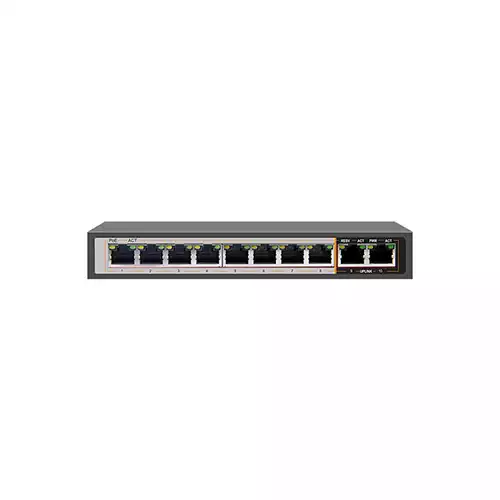

HORED AI1010G 10-PORT GIGABIT AI POE SWITCH
- Bandwidth: 20Gbps(no block)
- Transfer Rate: 1000Mbps full Duplex
- POE pin: 1/2(+)，3/6(-)
- Operating Temperature: 0°~40°C
SPECIFICATIONS
Networking & Connectivity
IEEE802.3ab,IEEE802.3af IEEE802.3at
Battery And Power
Max Power supply: 96W
Ports
2 10/100/1000Mbps non-POE RJ45 port(port 9~port 10)
Others
Safety regulation: CE/ROHS/FCC/CCC
AI Smart POE Switch, 8x 1000Mbps RJ45 port( POE is available), 2x 1000Mbps
Uplink.Support the management of Apollo cloud.

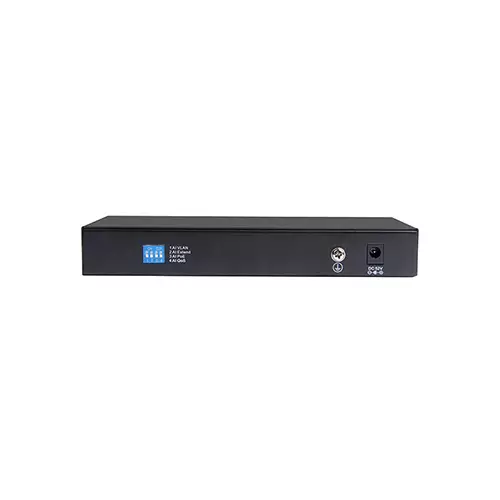

5 working modes:
Standard switching mode: All ports communicate freely;
AI VLAN: Avoid the internet storm and enhance the network ability;
AI Extend: Extend 250M transmission;
AI PoE: Automatic self checking, reboot the device while find it fake dead;
AI QoS，Video data first, more fluent transmission
Physical Specification
Operating Humidity：10%~90%，Non-condensing
Technical Info
RESV
LINK/ACT
Frame filtering and transmission rate:
10M port maximum 14,880pps
100M port maximum 148,810pps
1000M port maximum 1，488，100pps
Warranty Information
DESCRIPTION
HORED AI1010G 10-PORT GIGABIT AI POE SWITCH
The HORED AI1010G is a 10-port gigabit PoE switch designed for network connectivity. It features eight 10/100/1000Mbps PoE RJ45 ports (port 1 to port 8) and two 10/100/1000Mbps non-POE RJ45 ports (port 9 to port 10), offering high-speed data transfer rates up to 1000Mbps full duplex. The switch also supports various network protocols and standards such as IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af and IEEE802.3at. The switch boasts a bandwidth of 20Gbps with no blockage, making it ideal for networks with high traffic. Its frame filtering and transmission rate varies based on the ports - 10M port maximum is 14,880pps, 100M port maximum is 148,810pps, and 1000M port maximum is 1,488,100pps. The LED indicators are available for power, link/act, resv, and POE pin. The switch has a maximum output power of 30W per single port and a total power supply of 96W. It measures 184mm x 94mm x 27mm in size and weighs 0.5kg. The operating temperature range for this switch is between 0°C and 40°C with an operating humidity range of 10% to 90%, non-condensing. Additionally, it meets safety regulations like CE, ROHS, FCC, CCC and comes with a 1-year replacement warranty. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Hored Switch available at Techland BD is well recognized. The large selection of Switch available at Techland BD is well recognized.
