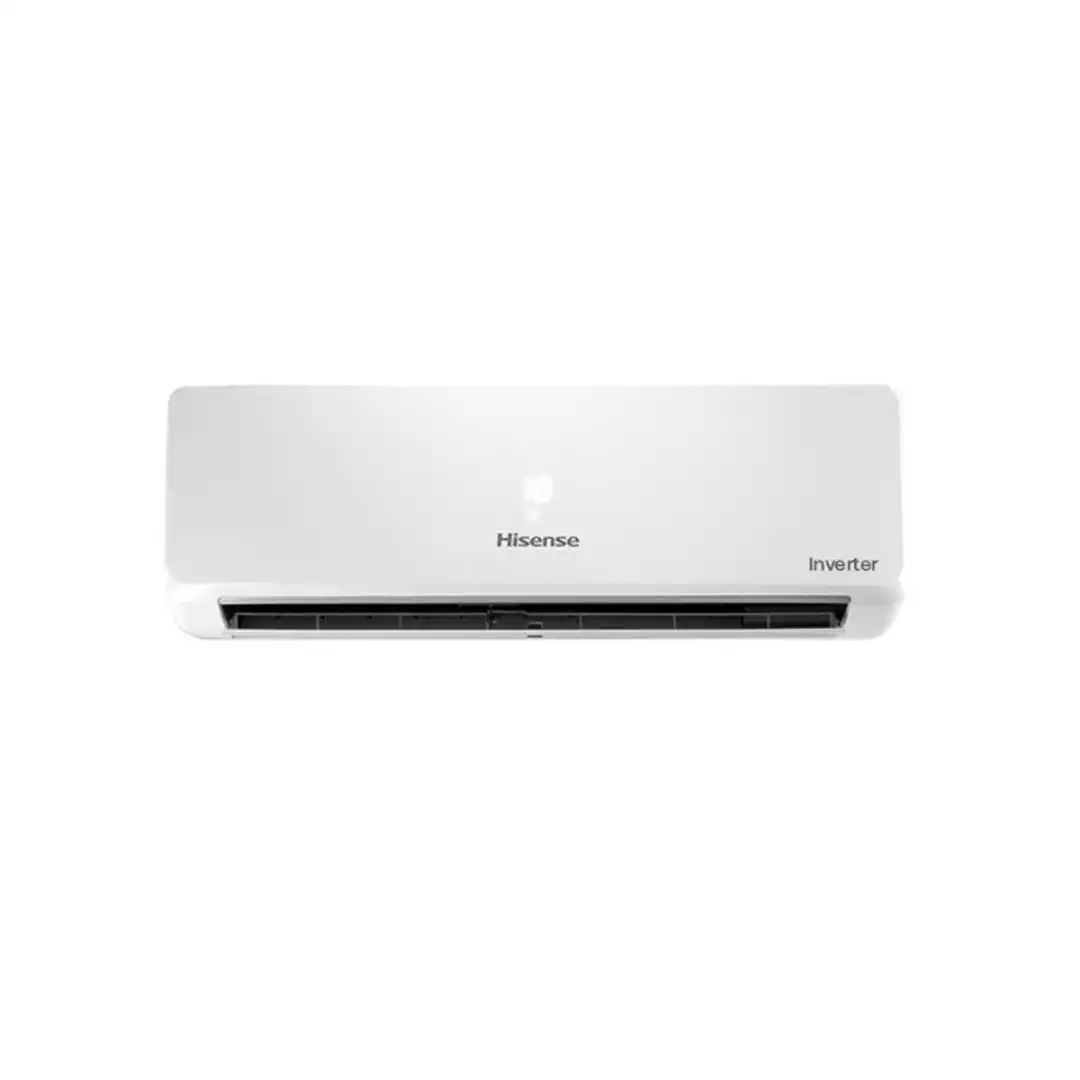

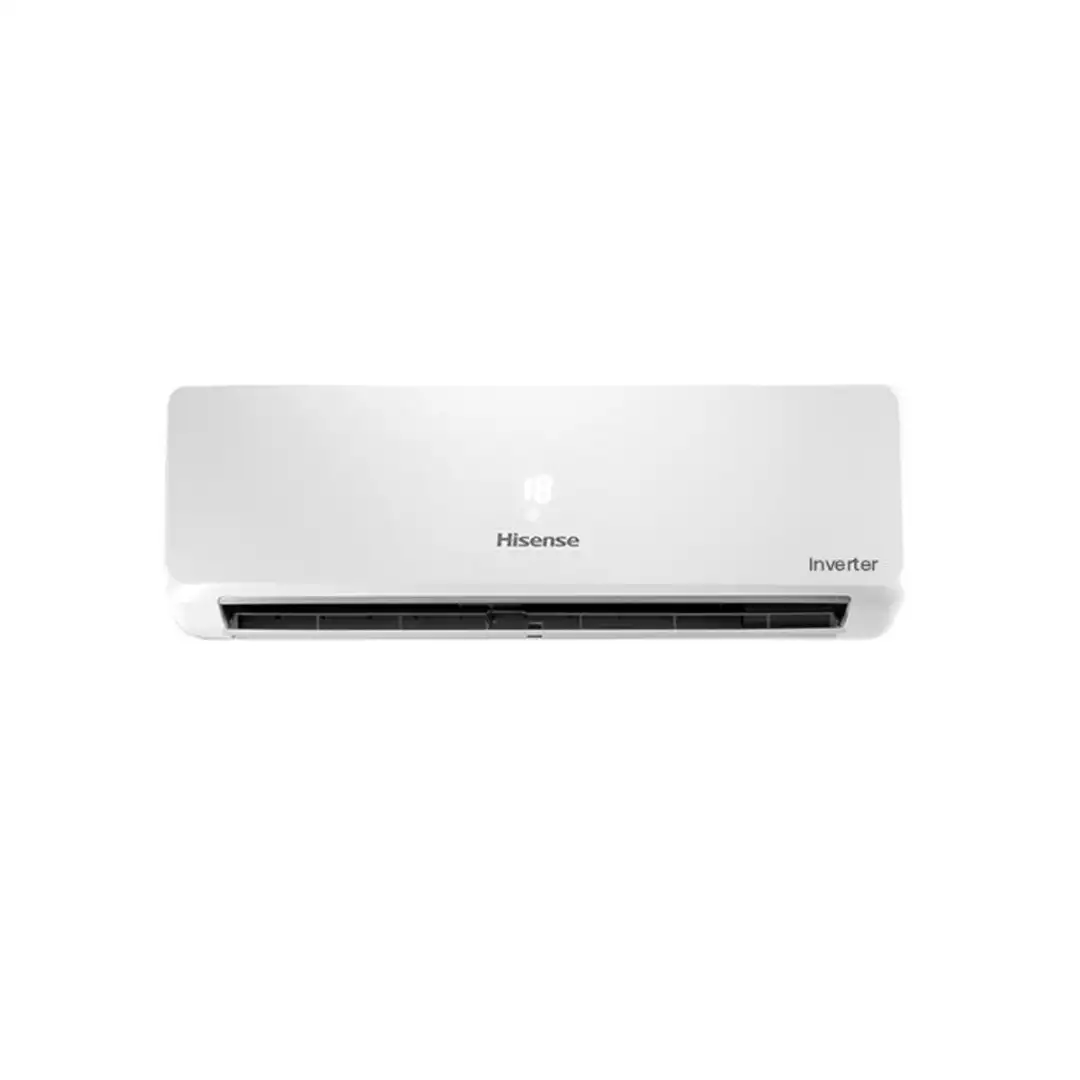

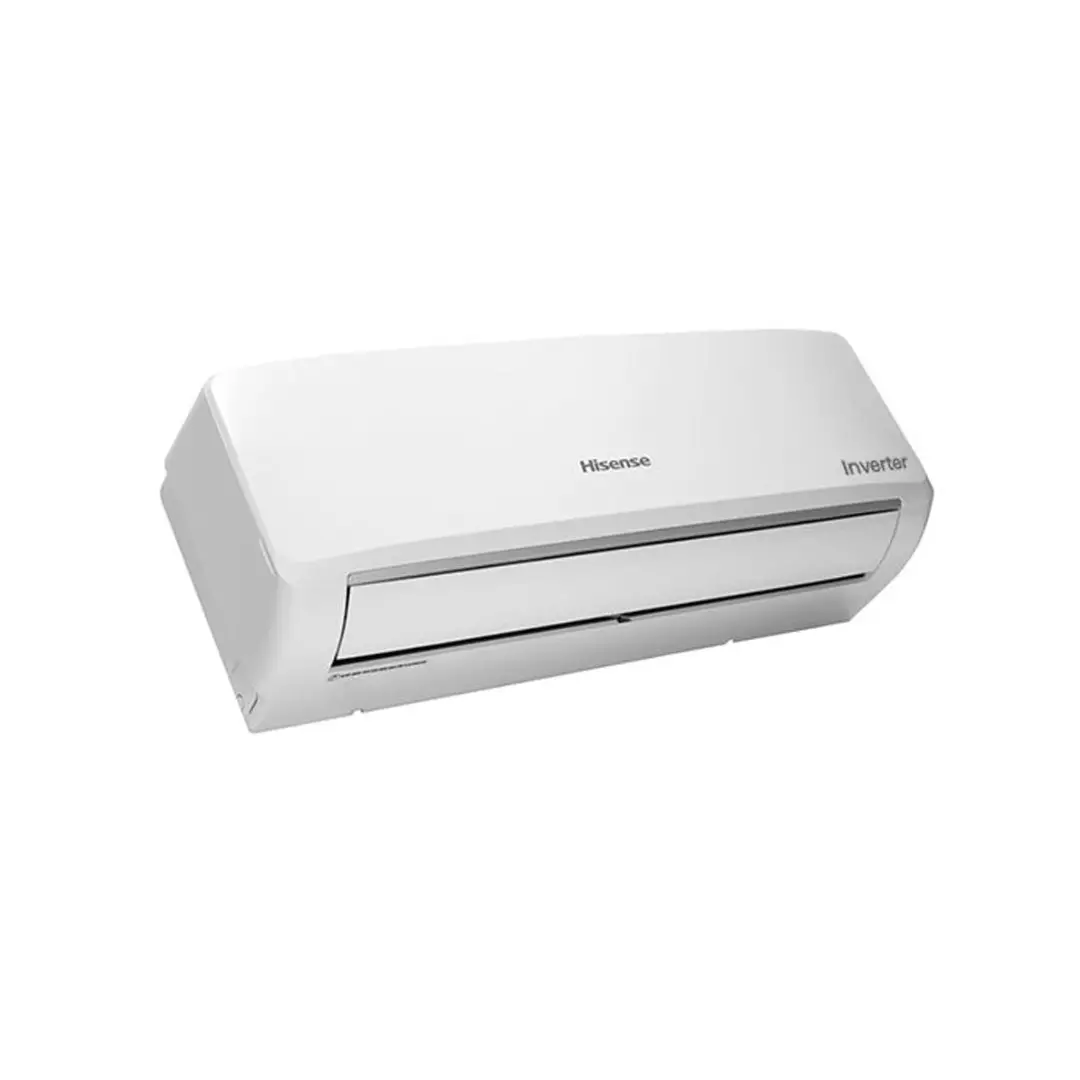

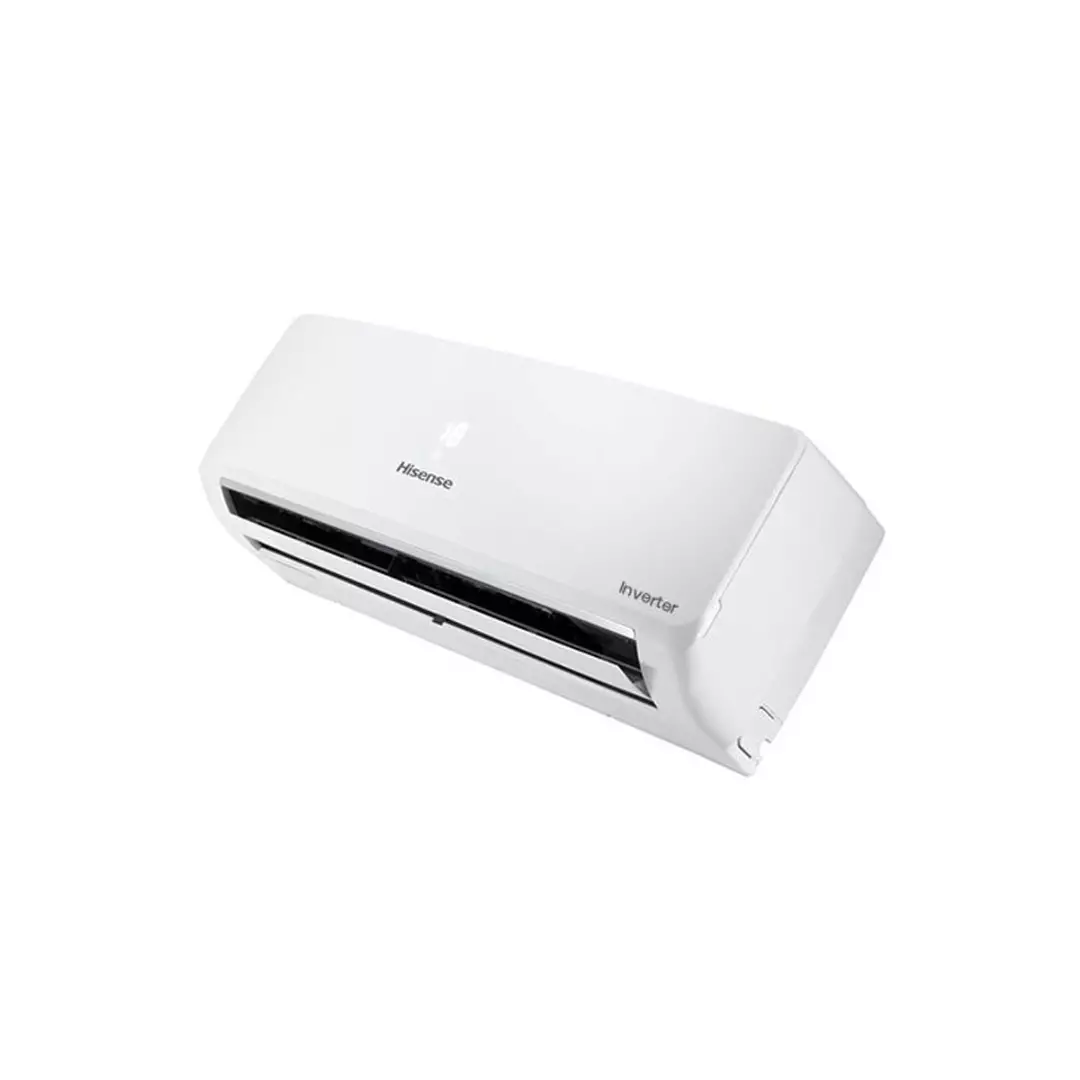

Hisense AS-22TW4RXBTD00BU is a 2 Ton Full DC Inverter AC Overview
The
Hisense AS-22TW4RXBTD00BU is a 2 Ton Full DC Inverter
AC available at TechLand BD. This AC unit operates at a voltage of 220-240V, with a frequency of 50Hz. It has a cooling capacity of 2.0 Ton or 21997 Btu/h, and a rated capacity for cooling of 6447W. The rated input for cooling is 2050W, and the rated current for cooling is 9.1A. The air circulation for the indoor unit is 1200 m3/h. The Energy Efficiency Ratio (EER) for cooling is 3.14. The unit uses R32 refrigerant with a charge volume of 950g. The indoor unit has a noise level of 46 dB (A) on high, 40 dB (A) on medium, and 36 dB (A) on low, while the outdoor unit has a noise level of 56 dB (A). The unit has a degree of protection of IPX0/IPX4 and a class of electroprotection of CLASS I. The maximum pipe length is 25m and the maximum height interval is 10m. The compressor type is rotary, with a model number of KTN150D42UFZB, manufactured by GMCC. The indoor fan motor model is K1B310497, with an input of 52.7W. The indoor coil has 2 rows, with a tube pitch of 21x13.6 mm and a fin spacing of 1.4 mm. The outdoor fan motor model is DG13Z1D-06, with an input of 48W. The outdoor coil has 1.5 rows, with a tube pitch of 21x18.19 mm and a fin spacing of 1.4 mm. The connecting pipe diameter for the liquid pipe is 3/8 inch and for the gas pipe is 5/8 inch. The design pressure is 4.15/1.6 MPa. The unit features an LED display on the front panel, refrigerant leakage detect, LCD wireless remote controller, removable and washable panel, washable PP filter, 24 hours timer, 3 speed and auto indoor fan control, vertical auto swing louver, horizontal auto swing louver, sleep operation, smart function, super function, auto restart, dimmer, 2 ways draining connection, and self-clean. The net dimensions for the indoor unit are 1131x230x315 mm and for the outdoor unit are 810x585x280 mm. The net weight for the indoor unit is 14.0 Kg and for the outdoor unit is 33.5 Kg.
