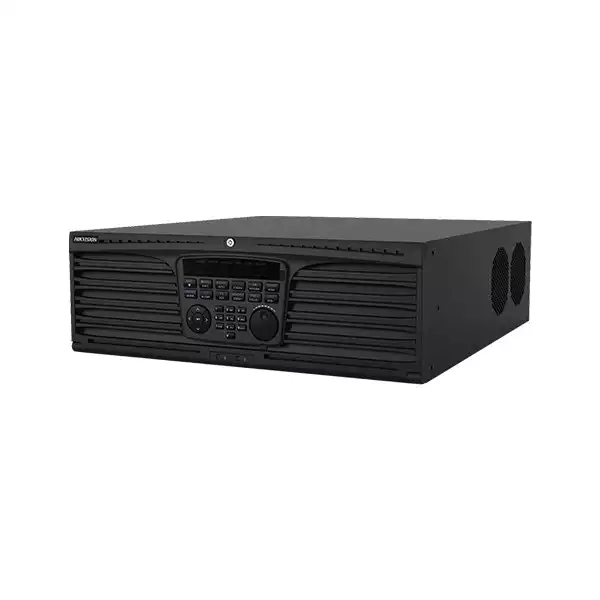

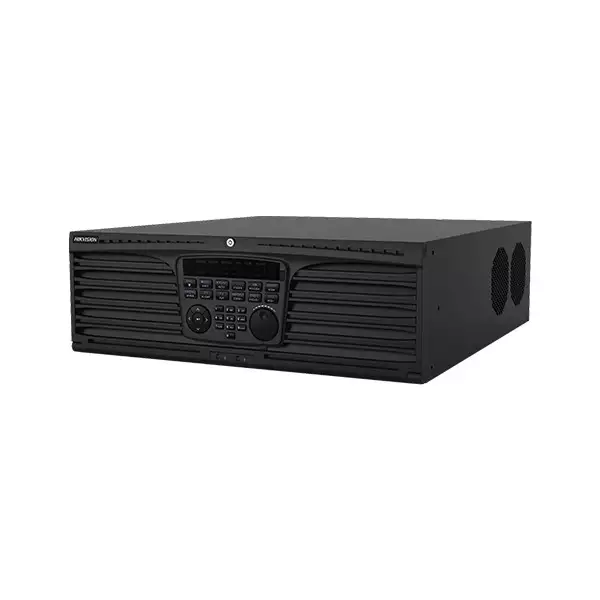

Hikvision DS-9664NI-I16 64-ch 3U 4K NVR

Hikvision DS-9664NI-I16 64-ch 3U 4K NVR

0 Reviews
Stock : Discontinued
PID : P0332506218
Brand : Hikvision
Model : DS-9664NI-I16
Warranty : 1 Year
  • Up to 64 channel IP cameras can be connected
  • Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 2 VGA (different source) interfaces
  • 16 HDD can be used for continuous video recording

SPECIFICATIONS

Networking & Connectivity

Networking Remote Connection: 128

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Battery And Power

Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption ≤ 45 W

Ports

Auxiliary Interface Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard

SATA: 16 SATA interfaces supporting hot-plug

ESATA: 1 eSATA interface

Capacity: Up to 10TB capacity for each disk

Alarm In/Out: 16/8

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Physical Specification

Working Humidity 10 to 90 %
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Dimension 445 × 496 × 146 mm (17.5" × 19.5" × 5.7")
Weight ≤ 12.5 kg (27.6 lb)

Technical Info

Video And Audio IP Video Input

64-ch


Up to 12 MP resolution


*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.


Incoming Bandwidth: 320 Mbps

Outgoing Bandwidth: 256 Mbps

Incoming Bandwidth (RAID Mode): 200 Mbps

Outgoing Bandwidth (RAID Mode): 200 Mbps

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output: 2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF


*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.


Synchronous Playback: 16-ch

Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)

Dual-Stream Recording: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Warranty Information

Manufacturing Warranty 1 Year

DESCRIPTION

Hikvision DS-9664NI-I16 64-ch 3U 4K NVR

Hikvision DS-9664NI-I16 4K network video recorder supports two HDMI channels, two VGA channels, and one HMDI channel. A third-party network camera is supported by the NVR, which has a recording resolution of up to 12 megapixels. With 320M incoming bandwidth, up to 64 IP cameras can be connected. Support HDD hot-swaps with customizable RAID 0, 1, 5, 6, 10 data storage schemes. Support for a variety of VCA detection alarms and VCA searches, as well as H.265 / H.264 / MPEG4 video format.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Hikvision DS-9664NI-I16 64-ch 3U 4K NVR Price in Bangladesh 2026 ?

The Hikvision DS-9664NI-I16 Price in BD is 210,000৳ . This Hikvision DS-9664NI-I16 64-ch 3U 4K NVR Manufacturing by Hikvision Comes With 1 Year Warranty & Based on 0 reviews. Tech Land BD Offers you Hikvision DS-9664NI-I16 by 210,000৳ and its regular price is 245,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
