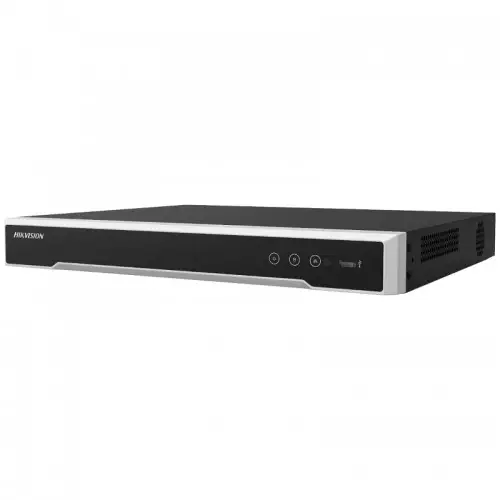

Hikvision DS-7632NI-K2 32-ch 1U 4K NVR

Hikvision DS-7632NI-K2 32-ch 1U 4K NVR

0 Reviews
Stock : Out of Stock
PID : P00025065389
Brand : Hikvision
Model : DS-7632NI-K2
Warranty : 1 Year
  • Up to 32 IP camera Channel
  • Up to 5 Megapixels resolution
  • IP video input: 16-ch
  • Up to 4 SATA interfaces

SPECIFICATIONS

Networking & Connectivity

Networking Remote Connection: 128-ch

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Battery And Power

Power Supply 12 VDC, 3.33 A
Power Consumption ≤ 15 W (without HDD)

Ports

Auxiliary Interface SATA: 2 SATA interfaces

Capacity: Up to 10 TB capacity for each HDD

USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out: 4/1

Physical Specification

Working Humidity 10 to 90 %
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Dimension 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight ≤ 1 kg (without HDD, 2.2 lb.)

Technical Info

Video And Audio IP Video Input: 32-ch

Incoming Bandwidth: 256 Mbps

Outgoing Bandwidth: 160 Mbps

HDMI Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode: HDMI/VGA independent output

Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Decoding Format: H.265/H.265+/H.264/H.264+

Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-ch

Decoding Capability: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

Warranty Information

Manufacturing Warranty 1 Year

DESCRIPTION

Hikvision DS-7632NI-K2 32-ch 1U 4K NVR

Hikvision 4K NVR can be attached up to 32 channels with IP camera. 1080p decoding capacity, H-265+ / H-265 / H-264+ / H-264 video formats, 256 Mbps high incoming bandwidth, 1 HDMI and 1 VGA interfaces, 160 Mbps incoming bandwidth, 8MP recording resolution, 1920 x 1080 VGA output, 16-channel synchronous playback, 2 SATA, 12 VDC power supply, 385 x 315 x 52mm dimension.
