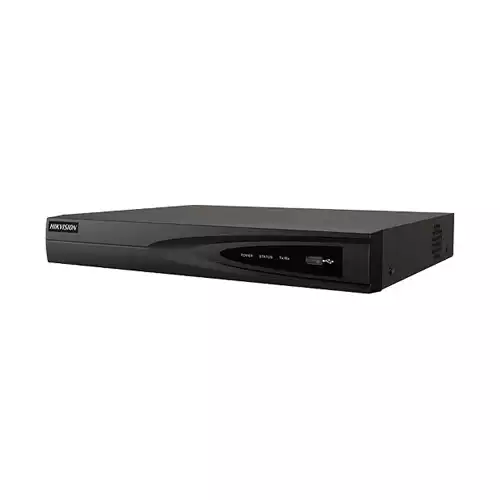

Hikvision DS-7604NI-Q1/4P 4-ch 1U 4 PoE 4K NVR

Hikvision DS-7604NI-Q1/4P 4-ch 1U 4 PoE 4K NVR

0 Reviews
Stock : Discontinued
PID : P0332506209
Brand : Hikvision
Model : DS-7604NI-Q1/4P
Warranty : 1 Year
  • Record from and Manage up to 4 Cameras
  • Up to 8MP Recording Resolution
  • 6TB HDD Capacity (Available Separately)
  • H.265, H.265+, H.264, and H.264+ Codecs

SPECIFICATIONS

Networking & Connectivity

Networking Remote Connection: 32

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Battery And Power

Power Supply 48 VDC, 1.35 A
Power Consumption ≤ 10 W (without HDD, and PoE off)

Ports

Auxiliary Interface SATA: 1 SATA interface

Capacity: Up to 8 TB capacity for each disk

USB Interface: 2 × USB 2.0

Alarm In/Out: N/A (4/1 is optional)

Physical Specification

Working Humidity 10% to 90%
Working temperature -10 to +55º C (+14 to +131º F)
Dimension 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight ≤ 1 kg (without HDD, 2.2 lb.)

Technical Info

Recording Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Video And Audio IP Video Input: 4-ch

Incoming Bandwidth: 40 Mbps

Outgoing Bandwidth: 80 Mbps

HDMI Output

1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz;

VGA Output

1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920 × 1080p/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Decoding Format: H.265+,H.265,H.264+,H.264

Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Synchronous Playback: 4-ch

DESCRIPTION

Hikvision DS-7604NI-Q1/4P 4-ch 1U 4 PoE 4K NVR

Record from and manage up to four cameras with the DS-7604NI-Q1/4P 4-Channel 4K UHD NVR (No HDD) from Hikvision. It is equipped with a SATA port that supports an HDD up to 6TB (available separately). H.265, H.265+, H.264, and H.264+ video codecs keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.This NVR has simultaneous HDMI and VGA video outputs. Hik-Connect enables seamless network management
