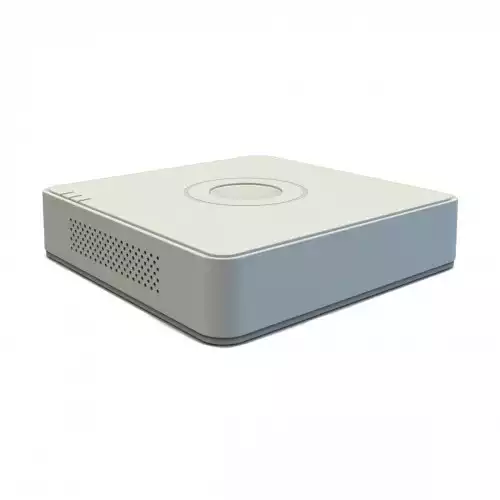

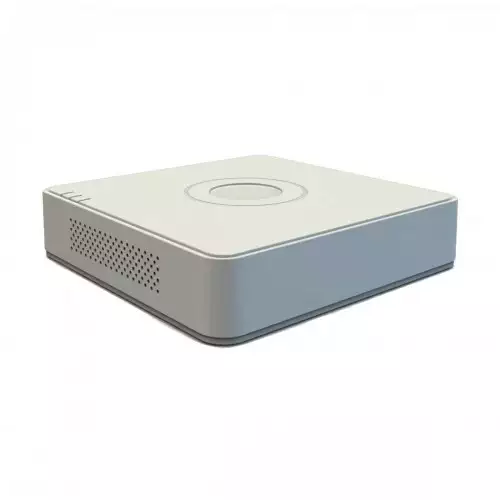

Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR

Total Bandwidth: 96 Mbps

Remote Connection: 64

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface

12 VDC, 1.33 A

≤ 12 W

SATA: 1 SATA interface

Capacity: Up to 6 TB capacity for each disk

Alarm In/Out: N/A

USB Interface: Real panel: 2 × USB 2.0

10% to 90%

-10 °C to +55 °C (+14 °F to +131 °F)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

≤ 1 kg (2.2 lb)

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:


4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;


When 1080p Lite mode is enabled:


4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:


When 1080p Lite mode is not enabled:


For 4 MP stream access:


4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)


For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

Video Bitrate: 32 Kbps to 6 Mbps

Dual-Stream: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps

IP Video Input: 2-ch (up to 10-ch)


Enhanced IP mode on:


4-ch (up to 12-ch), each up to 4 Mbps


Up to 6 MP resolution


Support H.265+/H.265/H.264+/H.264 IP cameras


Incoming Bandwidth

48 Mbps

Analog Video Input

8-ch


BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection


HDTVI Input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60


*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.


AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)


8-ch via coaxial cable


Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback: 8-ch
