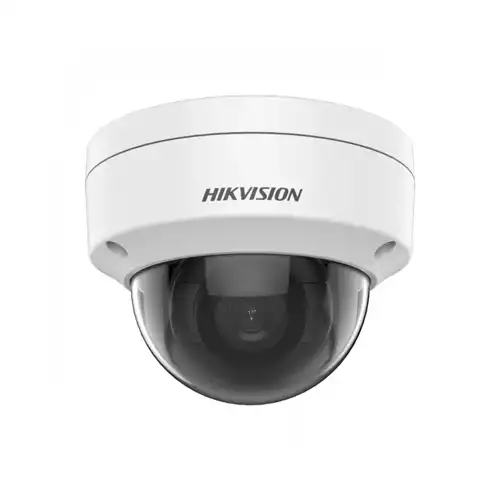

Hikvision DS-2CD1143G0-IUF/PAK 4 MP Fixed Dome Network Camera

Hikvision DS-2CD1143G0-IUF/PAK 4 MP Fixed Dome Network Camera

0 Reviews
Stock : Discontinued
PID : P0332506203
Brand : Hikvision
Model : DS-2CD1143G0-IUF/PAK
Warranty : 1 Year
  • High quality imaging with 4 MP resolution
  •  Efficient H.265+ compression technology
  •  Clear imaging even with strong back lighting due to 120 dB WDR
  •  Water and dust resistant (IP67) and vandal resistant (IK10)

SPECIFICATIONS

Camera

LENS Focal Length & FOV

2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

Lens Mount M12

Focus Fixed

Aperture F2.0

Networking & Connectivity

Network Interface Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,

UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels


API Open Network Video Interface, ISAPI

User/Host Up to 32 users. 3 levels: administrator, operator and user

Network Storage NAS (NFS, SMB/CIFS), ANR

Client iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Battery And Power

Power 12 VDC ± 25%

PoE: 802.3af, Class 3

Ports

Interface Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB

Built-in Microphone Yes

Hardware Reset Yes

Video Features

Video standard Max. Resolution 2688×1520

Main Stream

50 Hz: 20 fps (2688×1520)

25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440)

30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 8 Mbps

H.264 Type Baseline Profile/Main Profile/High Profile

H.265 Type Main Profile

H.264+ Main stream supports

H.265+ Main stream supports

Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Physical Specification

Dimension Ø120 mm × 92.2 mm (4.72" × 3.63")
Weight Camera Weight Approx. 440 g (1.0 lb.)

With Package Weight Approx. 680 g (1.5 lb.)

Warranty Information

Warranty 1 Year

DESCRIPTION

Hikvision DS-2CD1143G0-IUF/PAK 4 MP Fixed Dome Network Camera

High quality imaging with 4 MP resolution, Efficient H.265+ compression technology  Clear imaging even with strong back lighting due to 120 dB WDR . Water and dust resistant (IP67) and vandal resistant (IK10) , EXIR 2.0: advanced infrared technology with long IR range , Support up to 256 GB SD card storage . Built-in microphone for real-time audio security IP Camera.
