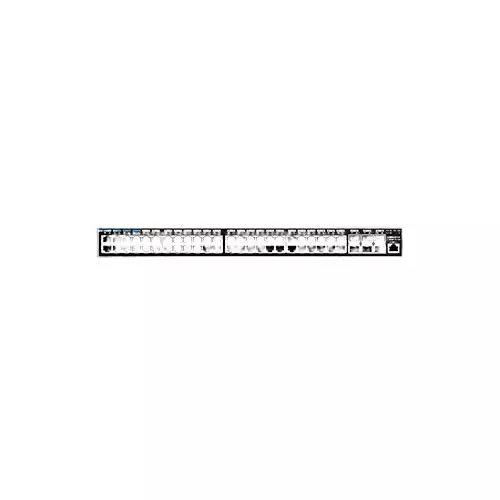

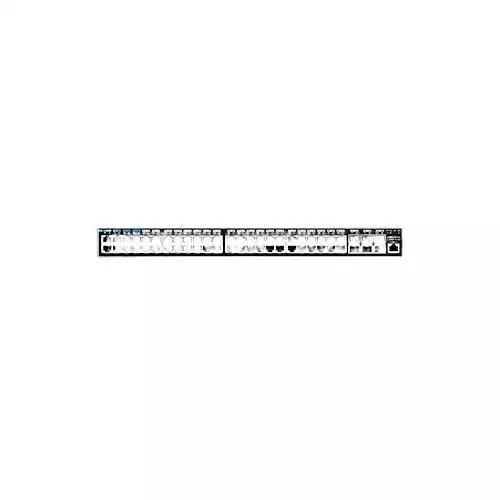

Grandstream GWN7816P 48 Port Layer 3 Gigabit Managed PoE Switch

Name: Grandstream GWN7816P 48 Port Layer 3 Gigabit Managed PoE Switch
Brand: Grandstream
SKU: P3032506100

0 Reviews

Stock : Up Coming

PID : P3032506100

Brand : Grandstream

Model : GWN7816P

Warranty : 1 Year

Ports: 48x GE, 6x 10GE SFP+
Switching: 216Gbps
Max PoE: 740W
Rate: 160.704Mpps

SPECIFICATIONS

Networking & Connectivity

Advanced Functions Built-in QoS allows for prioritization of network traffic

Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-
premise network management platform

ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping

Network Standard IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE
802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE
802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x

Transmission Method Forwarding Mode: Store-and-forward

MAC Address Table 16K MAC addresses, including static, dynamic and filtering MAC address

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP(pending)

27 link aggregation

Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)

Battery And Power

Power Supply 60W(1-8,PoE++) 30W(9-48) Max Output Power per PoE Port

1 PSU of 920W by default, support 1 Hot swap PSU(Purchased Separately)

740W with 1 PSU Max Total PoE Output Power

Ports

Port 48x Gigabit Ethernet Ports

6x 10Gigabit SFP+ Ports

Physical Specification

Temperature Operation: 0°C to 45°C

Storage: -10°C to 60°C

Humidity Operation:10% to 90% RH(Non-condensing)

Storage:10% to 90% RH(Non-condensing)

Dimension 440mm(L)x380mm(W)x44mm(H)

Weight 6Kg

Technical Info

LED Indicators 1x tri-color LED for device tracking and status indication

2x bi-color LEDs for per power supply PSU1/2

54x green-color LEDs for data transferring

48x yellow-color LEDs for PoE powered

Data Transmission Rate Switching Capability: 216Gbps

Total non-blocking throughput: 108Gbps

Forwarding Rate: 160.704Mpps

Packet Buffer: 16Mb

Network Latency: <4µs

Type Layer 3 PoE Managed Switch

Warranty Information

Warranty 1 Year

DESCRIPTION

Grandstream GWN7816P 48 Port Layer 3 Gigabit Managed PoE Switch in BD

Specifications

The Grandstream GWN7816P is a robust Layer 3 PoE managed switch featuring 48 Gigabit Ethernet ports and 6 10-Gigabit SFP+ ports. This switch supports extensive network standards such as IPv4, IPv6, and IEEE 802.3 series, ensuring broad compatibility. It boasts advanced functions, including built-in QoS for traffic prioritization, an embedded controller for easy management, and comprehensive security features like ARP Inspection, IP Source Guard, DoS protection, port security, and DHCP snooping. The GWN7816P offers impressive data transmission rates with a switching capability of 216 GB/s and a non-blocking throughput of 108 GB/s. It supports up to 16K MAC addresses and 4K VLANs, making it ideal for large network environments.

Availability and Usability

The Grandstream GWN7816P is available at Tech Land BD, your go-to destination for high-quality networking hardware in Bangladesh. This switch is perfect for enterprises needing reliable and high-performance networking solutions. Its substantial PoE power output, with a maximum of 740W, makes it suitable for powering various devices such as IP cameras, phones, and wireless access points. The switch's seamless integration with Grandstream’s GWN Cloud and GWN Manager allows for simplified network management and monitoring. Its advanced security features ensure a protected network environment, making the GWN7816P an excellent choice for enhancing any business's network infrastructure.

Highlights

48 Gigabit Ethernet ports and 6 10-Gigabit SFP+ ports
Advanced security features, including ARP Inspection and DoS protection
Built-in QoS for network traffic prioritization
Embedded controller for easy management
740W maximum PoE output power

Secure Your Grandstream GWN7816P from Tech Land BD Now!

Elevate your network capabilities with the Grandstream GWN7816P 48 Port Layer 3 Gigabit Managed PoE Switch, now available at Tech Land BD. This high-performance switch offers unmatched speed, security, and management features, making it an indispensable addition to any enterprise. Don't miss out on this opportunity to enhance your network infrastructure. Visit Tech Land BD today to purchase your Grandstream GWN7816P and ensure your business operates at its full potential!
