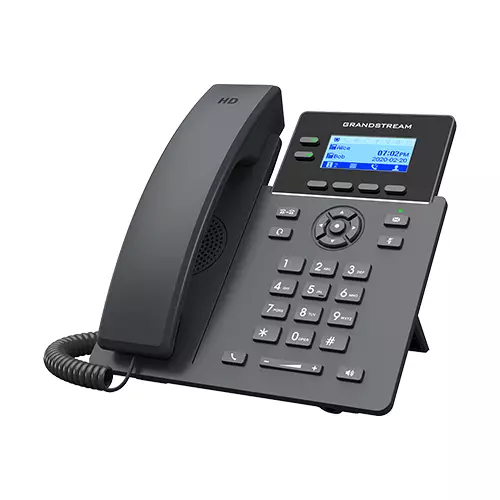

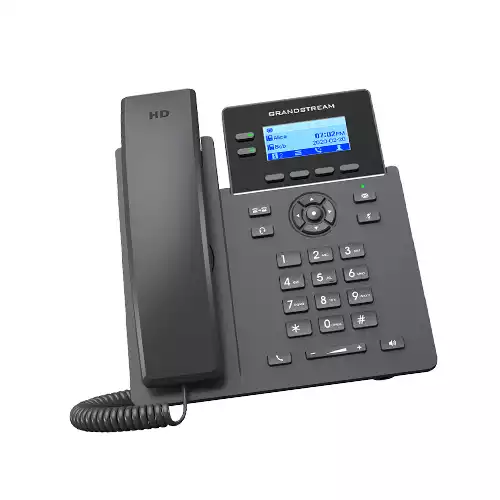

GRANDSTREAM GRP2602W 2 Lines 4 SIP IP phone Overview
Product Code
| GRP2602W
|
Protocols/Standards
| SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR)
DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6
|
Network Interfaces
| Dual switched auto-sensing 10/100 Mbps Ethernet ports
|
Wi-Fi
| GRP2602W, Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)
|
Graphic Display
| 132 x 48 (2.21’’) LCD display
|
Feature Keys
| 2 line keys with dual-colour LED and support for 4 SIP account, 4 XML programmable context-sensitive soft keys, 5 (navigation, menu) keys. 8
dedicated function keys for: MESSAGE(with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
|
Voice Codecs and Capabilities
| Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC
|
Telephony Features
| Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call appearance(SCA)/bridged-line appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalised music ringtones and music on hold, server redundancy and fail-over
|
Auxiliary Ports
| RJ9 headset jack (allowing EHS with Plantronics & Jabra & Sennheiser headsets)
|
HD Audio
| Yes, HD handset and speakerphone with support for wideband audio
|
Base Stand
| Yes, 1 angle position available (45°), Wall Mountable (*wall mount sold separately)
|
QoS
| Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
|
Security
| User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
|
Upgrade/Provisioning
| Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
|
Power & Green Energy Efficiency
| Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2602P Only)
|
Temperature and Humidity
| Operationx |
GRANDSTREAM GRP2602W 2 Lines 4 SIP IP phone in Bangladesh
Grandstream GRP2602W 2 Lines 4 SIP Account WiFi IP Phone. Part of the GRP series of Carrier-Grade IP Phones, the Grandstream GRP2602W is an essential 2-line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including Wi-Fi support, 5-way voice conferencing to maximise productivity, full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity, EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual firmware images and encrypted data storage. For cloud provisioning and centralised management, the GRP2602W is supported by Grandstream’s Device Management System (GDMS), which provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the needs of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and other high-volume markets, the GRP2602W offers an easy-to-use and easy-to-deploy voice endpoint.
Features
- 4 SIP account, 2 lines
- GDMS online device management and provisioning
- 5-way audio conferencing for easy conference calls
- Equipped with a noise shield technology to minimise background noise
- Electronic Hook Switch (EHS) support for Plantronics, Jabra, and Sennheiser headsets
- Enterprise-level protection including secure boot, dual firmware images and encrypted data storage
- Full-duplex speakerphone with HD audio to maximise audio quality and clarity
- The GRP2602W includes built-in PoE to power the device and give it a network connection
- Swappable faceplate to allow for easy logo customisation
