GIGABYTE AORUS P1200W 80+ PLATINUM FULL MODULAR POWER SUPPLY WITH LCD
Product Pricing
EMI Start From*
Gigabyte Aorus P1200w 80+ Platinum Power Supply
| Model | GP-AP1200PM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-7.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1200W |
| Fan Type | 140mm Double ball bearing Fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, all black |
| Dimension | 150 x 160 x 86mm |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2 SATA x 16 : 650mm+150mm+150mm+150mm*4 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2 |
| Warranty | 10 years |
Gigabyte Aorus P1200w 80+ Platinum Power Supply in Bangladesh
In the Gigabyte AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free-flowing style.

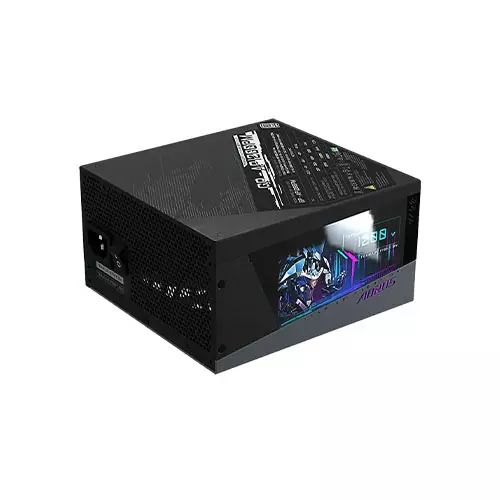

DIGITAL LCD MONITOR
The Digital LCD Monitor can not only display the power supply's health status in real time, but also display various text, pictures, GIFs, and MP4s. You can also adjust the lighting effect through the RGB FUSION 2.0 software.
FULLY MODULAR DESIGN
All the black flat cables are modular. Installing only the cables you need to reduce clutter, increase airflow, and improve the chassis' thermal performance.
QUALITY
Quality is the top priority of AORUS design. AORUS ensures the power supply delivers continuous, high-quality power, thereby enhancing the computer's performance and prolonging its service life.
EXCELLENCE
AORUS offers a variety of thoughtful designs that make users feel at ease while enjoying high-quality products.

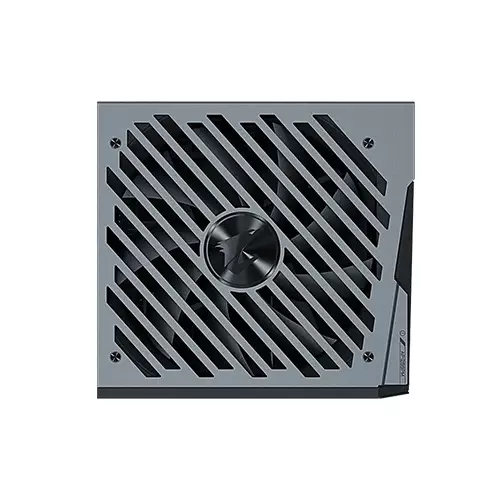

140mm bright double ball bearing fan
The fan speed is automatically adjusted based on power detection and will stop when the system is idle or under low load (less than 20 °C). The double ball bearing fan provides a longer, more stable lifetime.
RGB FUSION 2.0
With 16.7M customizable colour options and numerous lighting effects, you can choose lighting effects or synchronise with other AORUS devices.
COMPACT SIZE DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, AORUS has reduced the size of a 1200W power supply that is generally designed to be 200 mm long to an amazing 160 mm, so that it can be easily installed in any chassis without space.
