Generic
| - 4 SIP lines
- Built-in 2.4GHz WiFi
- 2.4” main color display
- HD audio on speakerphone and handset
- Support EHS wireless headset
- Support 6-way audio conference
- Stand with 2 adjustable angles of 45 and 50 degrees
|
Phone functions
| - Local Phonebook (1000 entries)
- Remote Phonebook (XML/LDAP, 1000 entries)
- Call logs (In/Out/Missed, 600 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Built-in 2.4GHz Wi-Fi
- Network standard: IEEE 802.11b/g/n
- Transmission rate: Up to 150Mbps (dynamic)
- Support Plantronics wireless headset (Through Plantronics
- APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Server)
- Action URL / Active URI
- uaCSTA
|
Call functions
| - Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 6-way Conference
- Hot Line
- Hot desking
|
Audio
| - HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
- VQM voice quality monitoring
|
Networking
| - Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static IP / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
|
Protocols
| - SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
- AES128 & AES256
|
Deployment & Management
| - Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP/PNP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
|
Physical Specifications
| - LCD: 2.4-inch (320x240) Color Screen
- Keypad: 34 keys, including
- - 4 Soft-keys
- - 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headset/Redial)
- - 2 Line keys (With LED Indicator Light)
- - 4 Navigation keys
- - 1 OK key
- - 12 Standard Phone Digits keys
- - 3 Volume Control keys (Up/Down/Mute (Microphone))
- - 1 Hands-free key
- HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT.5E Ethernet Cable x1
- Back Rack x1
- US Power adapter x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- Safety Keyhole x1
- DC Power Input: DC5V / 1A
- Power Consumption: Idle 0.9~1.3W,Peak 2.98~3.52W
- Working Temperature: 0~45°C
- Working Humidity: 10~95%
|
| Warranty | |

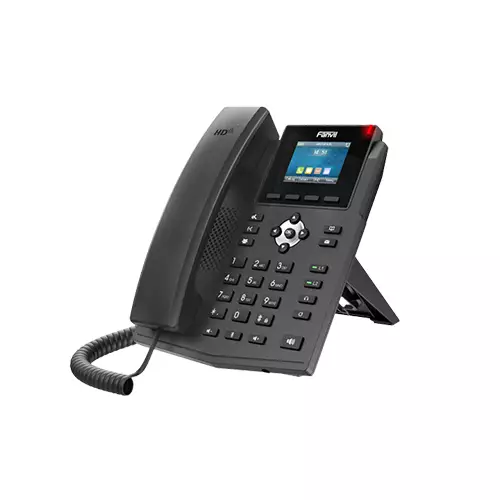

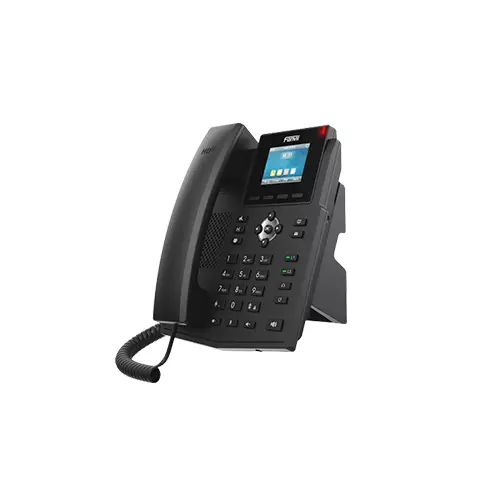

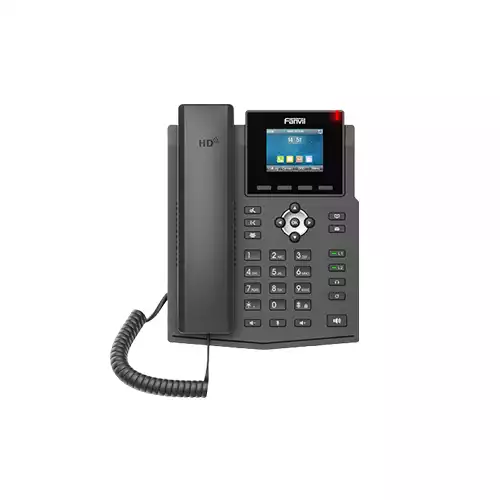

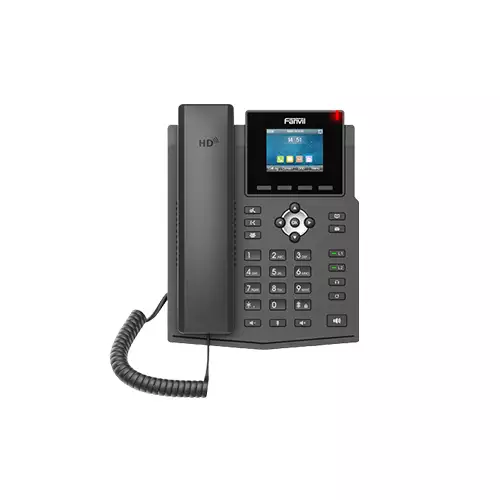

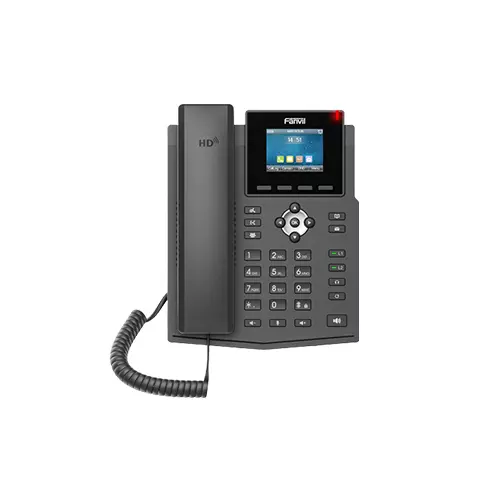

BEST FANVIL X3SW WiFi IP Phone PRICE IN BD
The Fanvil X3SW WiFi IP Phone is a cutting-edge communication device that combines the convenience of wireless connectivity with advanced IP telephony features. This SEO-friendly description highlights the key aspects of the product: The Fanvil X3SW WiFi IP Phone is an innovative and feature-packed communication solution for businesses in Bangladesh. This IP phone takes advantage of WiFi technology, allowing for seamless wireless connectivity and flexibility in office environments. With its sleek design and intuitive interface, the Fanvil X3SW offers a user-friendly experience. The high-resolution graphical LC D screen provides clear call information, while the backlit keypad ensures easy navigation, even in low-light conditions. HD audio guarantees crystal-clear voice quality, enhancing communication clarity during calls. Equipped with WiFi connectivity, the X3SW eliminates the need for traditional Ethernet cables, providing freedom of movement and allowing for convenient placement within the office space. This feature is especially beneficial for businesses looking to minimize cable clutter and simplify installation. The Fanvil X3SW supports multiple SIP accounts, enabling users to handle multiple lines and extensions simultaneously. It offers essential features such as call hold, call transfer, call waiting, and three-way conferencing, ensuring efficient call management. When it comes to pricing, it's recommended to check with local retailers or authorized Fanvil distributors in Bangladesh to get the best price for the Fanvil X3SW WiFi IP Phone. Prices may vary based on market factors and promotions. Choose the Fanvil X3SW WiFi IP Phone to experience the convenience of wireless connectivity and the reliability of advanced IP telephony features. Streamline your communication processes and enjoy a seamless calling experience in your business.The large selection of Fanvil available at Techland BD is well recognized. The large selection of FANVIL X3SW WiFi IP Phone available at Techland BD is well recognized.
