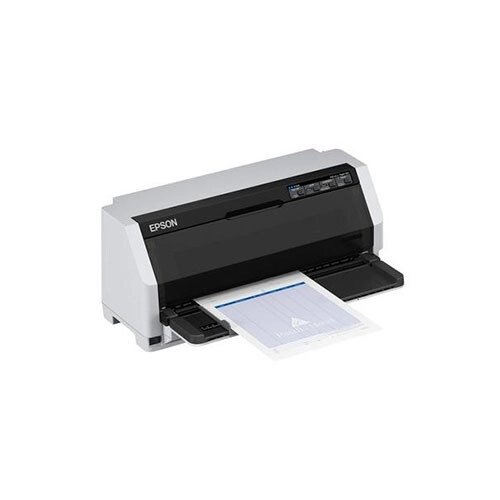

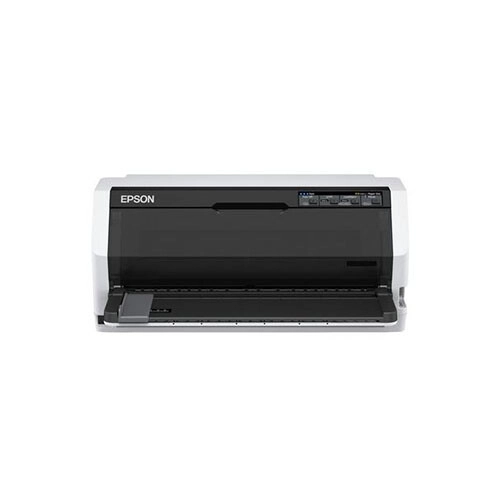

Epson LQ-690II 24-pin Dot Matrix Printer
- Function: Print
- Printing Method: Impact dot matrix
- Number of Pins:24 pins
- Number of columns:106 columns
Product Pricing
EMI Start From*
SPECIFICATIONS
HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10
cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
Document Feed
Single sheet front, Continuous media rear, Paper output front
Paper Formats
Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer),
Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper
0,065 mm - 0,49 mm
Paper Thickness Label Base Sheet
0,16 mm - 0,19 mm
Paper Thickness Label Total Sheet
0,16 mm - 0,19 mm
Paper Thickness Multi-Part
0,12 mm - 0,49 mm
Paper Thickness Single Sheet
0,065 mm - 0,15 mm
360 x 180 DPI
Impact dot matrix
Memory
128 kB Included
Battery And Power
38 Watt, 3 Watt (standby)
Ports
USB 2.0, Bidirectional parallel
24 Needles
Special Features
Epson Status Monitor
Others
Windows 10, Windows 11, Windows 2000, Windows 7,
Windows 8, Windows 98, Windows Vista, Windows XP,
Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Barcodes
Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8,
Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies
6 plus one original
Character Tables
PC437, PC708, PC720, PC850, PC858, PC864,
PCAR864, ISO-8859-15, Roman 8, Italic
Supported Temperature
Operation 5° C - 35° C
Supported Humidity
Operation 10% - 80%
Mean Time Between Failures
20.000 hours
Print Head Life
400 Million Strokes/Wire
Noise
Operation:59 dB (A)- Standby:54 dB (A)
Ribbon Yield
10000000 characters Black Draft
Emulations
ESC/P2, IBM PPDS
Physical Specification
6,8 kg
480 x 301 x 211 mm (Width x Depth x Height)
Warranty Information
1 Years
DESCRIPTION
Epson LQ-690II 24-pin dot matrix printer price in BD
The Epson LQ-690II is a reliable 24-pin dot-matrix printer designed for heavy office tasks. It delivers fast and sharp text printing for invoices, delivery notes, receipts, and multi-part forms. This printer suits banks, retail shops, logistics companies, and government offices that need continuous printing. It prints at speeds up to 576 characters per second. The 24-pin print head produces clear and precise text. It handles up to 7-part forms (1 original + 6 copies). This feature helps businesses manage carbon copies with ease. The printer supports both continuous paper and cut sheets. You can switch between paper types quickly. The LQ-690II offers strong durability. It has a long print head life and a high ribbon yield. The ribbon can print millions of characters before replacement. This reduces maintenance costs and downtime. Its robust design ensures stable performance even in demanding environments.
Connectivity remains simple and flexible. The printer includes USB, Serial, and Parallel interfaces. You can connect it to modern and legacy systems without issue. It works smoothly with the common office operating systems. Energy efficiency is another advantage. The printer consumes low power during operation and standby. This helps reduce electricity costs over time. It also operates quietly, making it suitable for busy workspaces. The Epson LQ-690II combines speed, clarity, and durability. It supports high-volume printing without compromising quality. If your business relies on continuous forms and multi-copy documents, this printer offers a practical, long-lasting solution.
FAQ
Can it print multi-part forms?
Yes, it supports up to 7-part forms, including one original and six copies.
Does it support continuous paper?
Yes, it works with continuous paper and cut sheets.
What connectivity options are available?
It includes USB, Serial, and Parallel interfaces for flexible connection.
Is it suitable for office use?
Yes, it is ideal for banks, retail shops, logistics, and other businesses that need reliable form printing.
