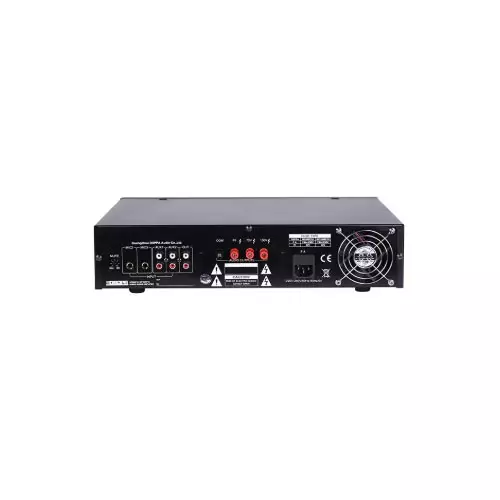

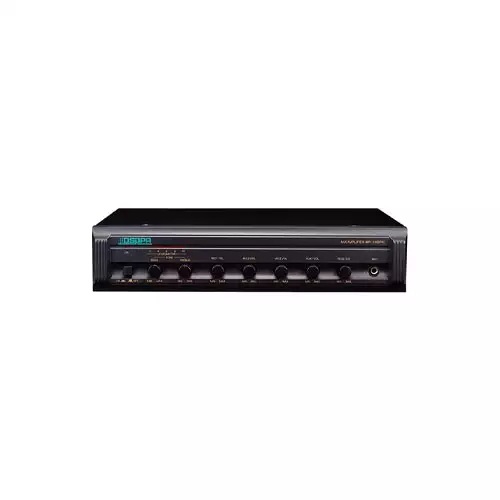

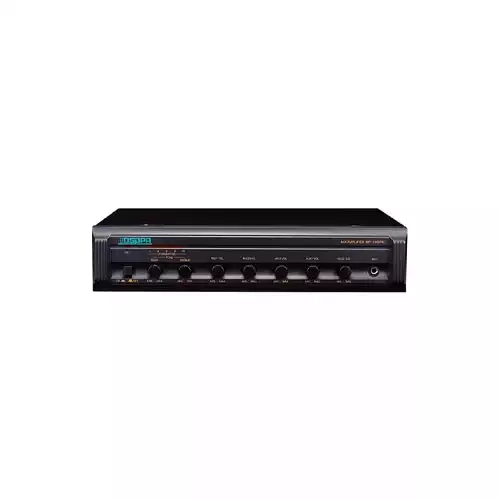

DSPPA MP1000PIII 350W 3 Mic & 2 AUX Mixing Amplifier

DSPPA MP1000PIII 350W 3 Mic & 2 AUX Mixing Amplifier in Bangladesh

The DSPPA MP1000PIII is a high-quality 350W mixing amplifier designed for commercial audio applications including public address, background music, and paging systems. With robust performance, user-friendly controls, and essential safety features, this amplifier is ideal for schools, offices, shopping centers, and more. Delivering a rated output power of 350W, the MP1000PIII supports 70V and 100V constant-voltage speaker outputs for easy integration with distributed audio systems. It includes three microphone inputs and two AUX line inputs, offering flexible connectivity for a variety of sources. The microphone input sensitivity is ≤3.3 mV, while the line input supports up to ≤300 mV, both unbalanced. The amplifier ensures clean and accurate sound with a frequency response of 80 Hz–16 kHz (±3 dB) and distortion below 1% at 1 kHz under normal operating conditions. With a signal-to-noise ratio of ≥74 dB on line input, it delivers clear audio with minimal background noise. For audio tuning, the MP1000PIII includes built-in tone control with ±10dB adjustment for both bass (100Hz) and treble (10kHz), giving users the ability to tailor sound output based on room acoustics and application needs. The unit is equipped with advanced protection features such as AC fuse protection, DC voltage protection, overload, and short-circuit protection, ensuring durability and operational safety. A muting function is also built in, allowing Mic 1 to override all other input signals with 0 to -30 dB attenuation—ideal for priority announcements. Built for reliability and ease of installation, the MP1000PIII operates on AC 220V/50Hz and consumes 650W of power. The compact rack-mountable design features dimensions of 483×338×88mm, with outer packaging measuring 520×430×195mm. Whether for announcements, background music, or emergency messaging, the DSPPA MP1000PIII offers the performance, features, and protection needed in a professional audio environment.

FAQ:

1. What type of speakers can be connected to the MP1000PIII?

This amplifier supports 70V and 100V constant-voltage speaker outputs, making it ideal for distributed speaker systems in commercial environments.

2. Does the amplifier support microphone priority?

Yes, Mic 1 has a muting function that overrides other inputs with 0 to -30 dB attenuation, perfect for priority announcements or paging.

3. What protection features are included?

The MP1000PIII offers multiple protections, including AC fuse, DC voltage, overload, and short-circuit protection, ensuring stable and safe operation.
