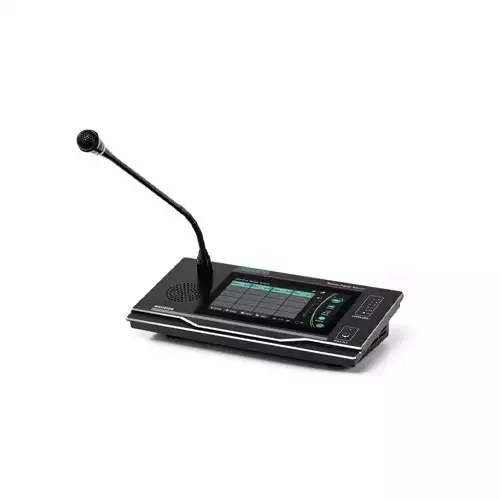

DSPPA MAG6588 Intelligent Network Paging Station

DSPPA MAG6588 Intelligent Network Paging Station in Bangladesh

The DSPPA MAG6588 Intelligent Network Paging Station is a high-performance, professional-grade audio communication device designed to deliver reliable, crystal-clear paging and intercom capabilities across intelligent networked environments. Engineered for modern public address systems, this paging station excels in clarity, efficiency, and integration, making it ideal for commercial complexes, educational institutions, transport hubs, and smart buildings. Equipped with a 1.0V±0.2V AUX OUT and NET OUT, the MAG6588 ensures consistent and stable output performance, making it highly adaptable for varied amplification and networked audio applications. The MIC input sensitivity of 50±10mV guarantees optimal voice pickup, while maintaining a MIC distortion rate of ≤0.3% at 1kHz for undistorted, natural sound reproduction. It operates within a frequency range of 100Hz to 16kHz, offering a full and accurate vocal presence. A standout feature is the Signal-to-Noise Ratio (SNR) of ≥68dB for both MIC and AUX inputs, ensuring minimal background noise and maximum audio intelligibility. The AUX input, rated at 300±50mV, also features low distortion levels (≤0.3%) and a wide frequency response of 50Hz to 18kHz, allowing the system to handle a wide range of input sources with high fidelity. Designed for versatility, the unit supports effective intercom voice monitoring with a frequency range of 80Hz to 16kHz and a monitoring SNR of ≥65dB, making it a reliable solution for internal communications. The MAG6588 operates on DC+14V with a power consumption of just 9.5W, including a low 7.3W in standby mode—ensuring energy efficiency without compromising performance. Its sleek and compact design measures 300×160×56mm, with a lightweight build of only 1.8kg, housed in a robust enclosure that suits both desktop and wall-mounted installations. The overall packaging is thoughtfully sized at 415×280×121mm, simplifying transport and installation. Combining smart design with powerful functionality, the DSPPA MAG6588 is a reliable, intelligent paging station crafted for seamless integration into modern IP-based PA systems, delivering top-tier audio communication with minimal footprint.

FAQs:

1. What type of network infrastructure is required to use the MAG6588 Paging Station?

The MAG6588 is designed to operate on standard IP-based networks. It integrates easily with existing LAN/WAN infrastructures using Ethernet connections, allowing seamless deployment within most modern communication or public address systems.

2. Can the MAG6588 support both paging and intercom functionalities simultaneously?

Yes, the MAG6588 supports both paging and intercom functions. It features dedicated signal processing for each function, including optimized frequency response and signal-to-noise ratio for clear voice communication across the system, whether it's for general announcements or two-way intercom voice monitoring.

3. What kind of power supply does the MAG6588 require, and is it energy-efficient?

The MAG6588 operates on a DC+14V power input and comes with an AC220V/50Hz power supply adapter. It is highly energy-efficient, with a standby power consumption of only 7.3W and a total consumption of 9.5W during operation—making it suitable for continuous, low-cost operation in large-scale installations.
