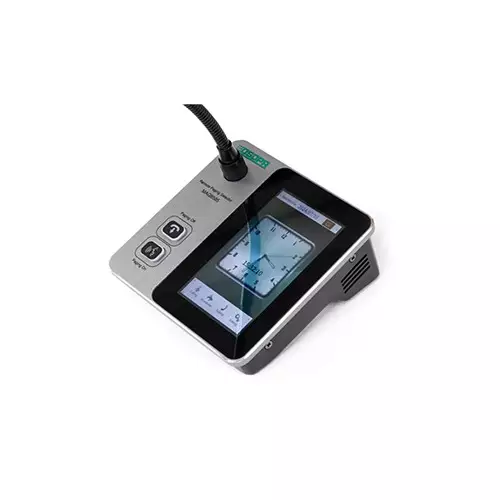

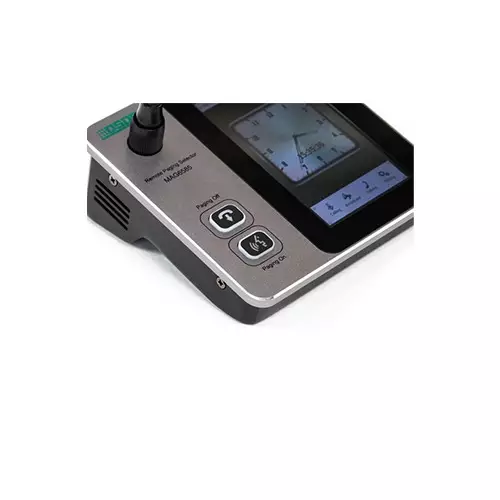

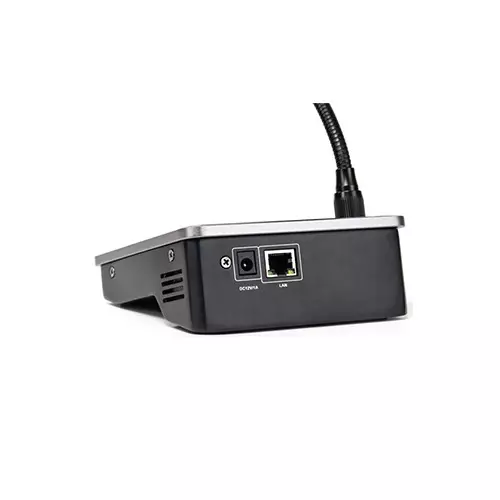

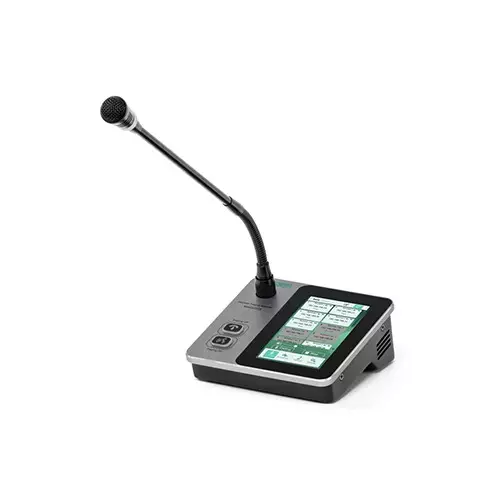

DSPPA MAG6585 Compact IP PA Paging Microphone

DSPPA MAG6585 Compact IP PA Paging Microphone in Bangladesh

DSPPA MAG6585 Compact IP PA Paging Microphone, now available in Bangladesh from Tech Land BD. This sleek, rack-mountable unit combines rich audio performance with the flexibility of IP networking to deliver crystal-clear announcements, background music, and two-way intercom communication across your facility. Powered by a reliable DC 12V supply (with AC100–250V adapter included), the MAG6585 draws just 7W in operation and under 3W on standby, making it energy-efficient while capable of driving both microphone and auxiliary inputs. It's sensitive 30 mV mic input offers an effective frequency response of 120 Hz–12 kHz (±3 dB) and a signal-to-noise ratio ≥ 75 dB, ensuring your voice is heard with clarity over ambient noise. The built-in AUX input, calibrated at 300 ± 50 mV, supports line-level devices such as CD players or mixers, with full bandwidth from 50 Hz to 18 kHz and low distortion (≤ 0.3%), making it ideal for music or paging pre-recorded messages. For local monitoring, the MAG6585’s intercom voice output mirrors the microphone’s audio quality and S/N ratio, allowing personnel to confirm broadcast content in real time. Networking is seamless via standard Ethernet, compatible with DHCP, TCP/IP, UDP, IGMP, and ARP protocols, enabling multiple units to be linked over Local Area Networks for zone paging, scheduled announcements, or emergency messaging. Its compact 125 × 125 × 52 mm chassis (gross weight 1.2 kg) fits neatly into 1/3-rack spaces or desktop mounts, while the robust metal housing ensures durability in commercial and industrial environments. LEDs on the front panel indicate power, LAN status, and input activity, providing at-a-glance system health checks. Whether you’re installing a campus-wide intercom, enhancing retail background music, or adding emergency paging to a corporate office, the DSPPA MAG6585 offers professional-grade audio, intuitive controls, and networked versatility. Backed by Tech Land BD’s genuine product warranty and expert support, this compact IP PA microphone host is the perfect solution for integrators and end-users seeking reliable, high-quality voice communication across any IP-connected venue.

FAQs:

Can the MAG6585 be used for multiple paging zones over a network?

Yes, it supports standard IP protocols (TCP/IP, UDP, IGMP) and can be configured via DSPPA software to broadcast selectively to multiple paging zones on your LAN.

How do I connect external audio sources for background music?

Use the AUX input (300 ± 50 mV) to connect line-level devices like CD players or mixers; the unit’s low distortion and wide frequency response ensure high-fidelity playback.

What are the power requirements and backup options?

The MAG6585 runs on DC 12V (internal draw ~7W) via the supplied AC100–250V adapter; for backup, you can pair it with a UPS to maintain paging during power outages.
