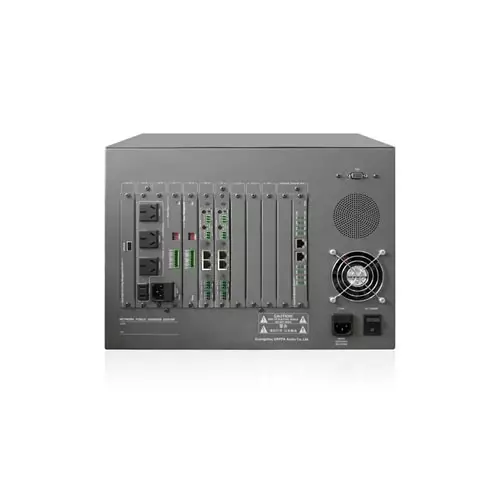

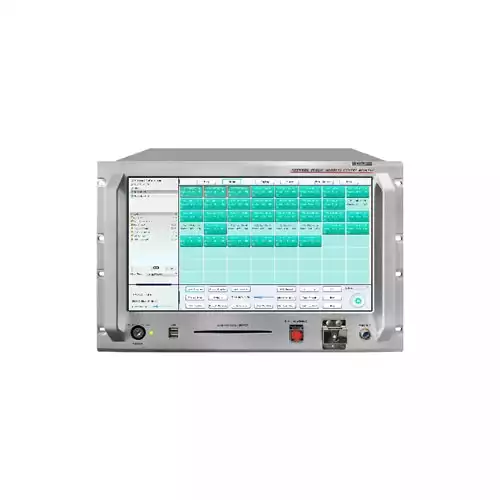

DSPPA MAG6182II IP Network PA Center

DSPPA MAG6182II IP Network PA Center in Bangladesh

The DSPPA MAG6182II IP Network PA Center is a high-performance, all-in-one public address system designed for smart and scalable audio broadcasting across various environments such as campuses, commercial complexes, transportation hubs, and industrial zones. With a robust build and advanced technology integration, the MAG6182II offers reliable performance, intuitive control, and seamless network communication. At its core, the MAG6182II is powered by a powerful Intel Core i5-6300U processor, supported by 8GB DDR4 RAM for fast and efficient operation. The system includes a 250GB M.2 SSD paired with a 512GB 2.5-inch SSD, ensuring ample storage for audio files, system logs, and configurations. It runs on Windows 7 and above, supporting both 32-bit and 64-bit operating systems, providing compatibility with a wide range of applications and network environments. The unit features a large 17.3-inch LCD touch screen, allowing for user-friendly and efficient control. Its audio capabilities are equally impressive, with support for MP3 playback ranging from 120K to 320K bitrates. The system delivers clear sound output with >70dB SNR for LINE input and >60dB for MIC, keeping audio distortion below 0.5% at 1kHz. Designed for flexibility and scalability, the MAG6182II supports up to 110 unicast terminals and unlimited multicast, making it ideal for both small and large-scale deployments. The constant resistance output ensures stable audio performance, delivering 10W of undistorted output power. Each timing power channel supports up to 2A current, perfect for scheduled announcements or energy-saving automation. The system also includes comprehensive software tailored specifically for network PA systems, ensuring secure operation with rights reserved and prohibitions on copying or counterfeiting. Housed in a compact yet sturdy chassis (483×308×445 mm), the MAG6182II weighs 19.5kg net, making it easy to integrate into existing AV racks or control rooms. It operates at AC 220V/50Hz with a 150W power consumption, ensuring energy-efficient performance.

FAQs:

1. What is the maximum number of terminals the MAG6182II can support?

The MAG6182II supports up to 110 unicast terminals and unlimited multicast terminals, making it highly scalable for both small and large-scale public address installations.

2. What audio formats and bitrates does the system support for playback?

The system supports MP3 audio playback with streaming bitrates ranging from 120Kbps to 320Kbps, ensuring high-quality sound delivery across all connected terminals.

3. Is the MAG6182II compatible with modern computer systems and software environments?

Yes, the MAG6182II runs on Windows 7 and above, supporting both 32-bit and 64-bit operating systems. It comes with a dedicated Network PA system software package, offering robust control, scheduling, and broadcasting features.
