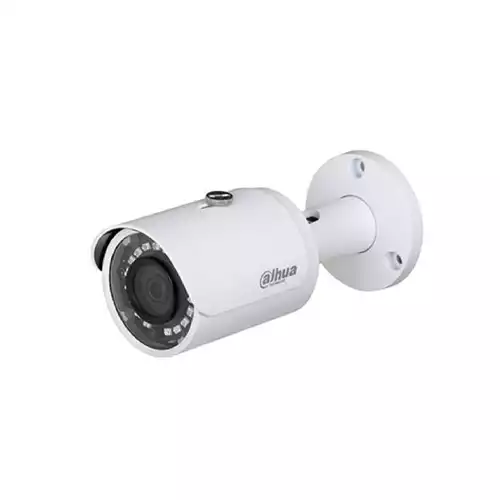

DAHUA HAC-HFW1200S-POC CAMERA OVERVIEW
Camera
| - Image Sensor : 1/2.7" CMOS
- Effective Pixels : 1920(H)×1080(V), 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25~1/100000s
- NTSC: 1/30~1/100000s
- Minimum Illumination : 0.02Lux/F1.85, 30IRE, 0Lux IR on
- S/N Ratio : More than 65dB
- IR Distance : Up to 30m (98feet)
- IR On/Off Control : Auto / Manual
- IR LEDs : 18
|
Lens
| - Lens Type : Fixed lens / Fixed iris
- Mount Type : Board-in
- Focal Length : 3.6mm (2.8mm Optional)
- Max Aperture : F1.85
- Angle of View : H: 87.5° (103°); V: 47° (59°)
- Focus Control : N/A
- Close Focus Distance : 900mm (500mm)/35.43" (19.69'')
|
Pan/Tilt/Rotation
| - Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotation: 0° ~ 360°
|
Video | - Resolution : 1080P (1920×1080)
- Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
- Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
- Day/Night : Auto (ICR) / Manual
- OSD Menu : Multi-language
- BLC Mode : BLC / HLC / DWDR
- WDR : DWDR
- Gain Control : AGC
- Noise Reduction : 2D
- White Balance : Auto / Manual
- Smart IR : Auto / Manual
|
Certifications
| - CE (EN55032, EN55024, EN50130-4)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
- UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
|
Electrical
| - Power Supply : POC/12V DC ±30%
- Power Consumption : Max 4.3W (12V DC, IR on)
|
Environmental
| - Operating Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Storage Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Ingress Protection & Vandal Resistance : IP67
|
Construction
| - Casing : Aluminium
- Dimensions : 164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
- Net Weight : 0.38kg (0.84lb)
- Gross Weight : 0.47kg (1.04lb)
|
DAHUA HAC-HFW1200S-POC CAMERA IN BANGLADESH
Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/ SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
Functions
4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
Smart IR
The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
