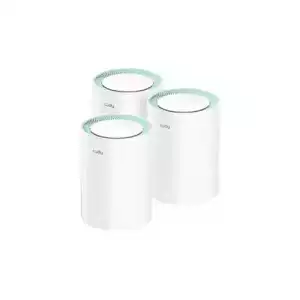

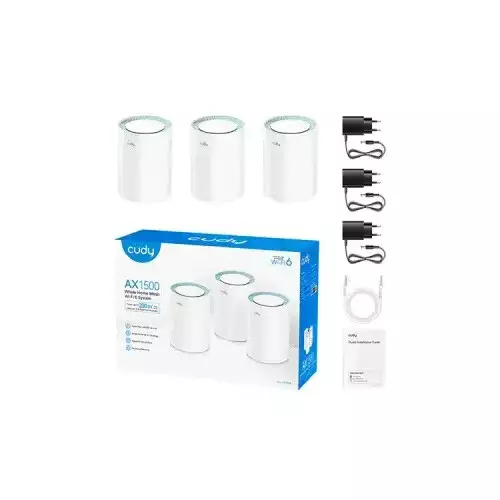

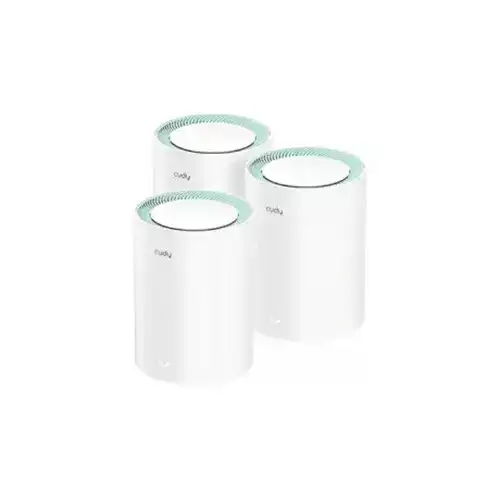

Cudy M1500 3-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router
- CPU Details - 1 GHz Single-Core CPU
- Gigabit RJ45 Ports - 3
- Power Input - DC Jack
- Power Consumption - 10W
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
CPU Details: 1 GHz Single-Core CPU
Memory
128 MB (1 Gbit) DDR3
Storage
16 MB (128 Mbit) NOR
Networking & Connectivity
- PPTP
- L2TP
- Wireguard
Wake on LAN: True
Online Detection: True
5 GHz Wi-Fi Speed: 1201 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
5 GHz Antenna Gain Max: 5.56dBi
2.4 GHz Antenna Gain Max: 4.41dBi
FEM or PA/LNA:
- 5 GHz: 2× Internal
- 2.4 GHz: 2× Internal
Beamforming: True
Range Performance: Max: 170 m (558 ft)
Tested in open-space environments
with minimal interference.
Actual WiFi range may vary
depending on layout and wall
materials. Refer to the Wall
Performance specifications
for placement suggestions.
Wall Performance:
Two wooden walls with a thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Indoor Coverage Reference:
2 Pack: 3200 sq ft
3 Pack: 4500 sq ft
DHCP:
- Address Reservation
- DHCP Client List
- Server
IP Versions: IPv4/IPv6
IPv6 Protocols:
- Relay
- Dynamic (SLAAC/DHCPv6)
- Static (Fixed IP)
- Passthrough
- 464XLAT
- MAP-E
- DS-Lite
IPTV/VLAN:
- Bridge
- Tag VLAN
- VoIP VLAN
- IPTV VLAN
IGMP:
- IGMP Proxy
- IGMP Snooping
Forwarding:
- Port Forwarding
- UPnP
- DMZ
Firewall:
- SPI Firewall
- Block PING
Wi-Fi Standards: Wi-Fi 6
Max Wi-Fi Modulation: 1024-QAM
Wi-Fi Efficiency: Beamforming
Max Capacity: 128
Recommended Client Upper Limit: 60
Max Wi-Fi Channel Width: 80 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True
Ethernet Notes: 1× WAN port, the rest are LAN ports
Uplink Ethernet Ports:
3-Pack: 53.6×40×28.7 cm
21.1×15.75×11.3 inches
Battery And Power
Power Input: DC Jack
Power
Power Methods: DC
DC Input: 12V 1A
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
Max Power Consumption (W): 10W
Ports
Gigabit RJ45 Ports: 3
Special Features
FCC, CE
Others
- WPS Button
- Reset Button
Operation Modes:
- Wi-Fi Router
- Access Point
- Range Extender
- WISP
- Client
Mesh: Cudy Mesh
Mesh Backhaul:
- Wireless Backhaul
- Wired Backhaul
Multi-Band Backhaul: True
WAN Mode:
- DHCP
- Static IP
- PPPOE
- PPTP
- L2TP
Internet Failover Sequence:
- WAN
- WISP
Physical Specification
White
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
110×154.5 mm
4.33×6.08 inches
Technical Info
- Profile Settings
- Offline Time
- Online Time
- Pause the Internet
- Web Filter
Warranty Information
1 year
DESCRIPTION
Cudy M1500 3-Pack AX1500 Mesh System Router in Bangladesh
The Cudy M1500 3-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router delivers next-generation wireless performance to keep your entire home or office connected with ultra-fast, stable internet. Available now at the best price in Bangladesh from Techland BD, this Wi-Fi 6 mesh system delivers high-speed, low-latency coverage that eliminates dead zones and buffering. Powered by a 1 GHz single-core CPU, 128 MB DDR3 RAM, and 16 MB NOR flash storage, the Cudy M1500 provides efficient data processing and reliable performance for smooth browsing, gaming, streaming, and smart device connectivity. With Wi-Fi 6 (802.11ax) technology, the M1500 delivers speeds up to 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, so you can enjoy seamless performance across multiple devices at once. Its dual-band connectivity ensures optimal traffic distribution for a smoother online experience.
With two internal antennas per band, beamforming, and 2×2 MU-MIMO technology, this router improves signal strength and stability throughout your home. Each unit provides up to 170 meters (558 ft) of range and 4500 sq ft (3-pack) of indoor coverage, ideal for large homes or offices. The Cudy M1500 Mesh System supports both wireless and wired backhaul, ensuring flexible deployment and stable performance. Its mesh networking technology automatically synchronises units, creating a single, seamless network name (SSID) for effortless roaming. Users can manage everything through the Cudy app, making setup and network management simple and intuitive. Security and control are top priorities, with features such as WPA/WPA2/WPA3 encryption, guest networks, firewall protection, and parental controls, including online time limits, web filtering, and device pause options—ensuring a safe, manageable network environment for families.
For advanced users, the router supports VPNs (PPTP, L2TP, WireGuard), IPv4/IPv6, and port forwarding, plus QoS, IGMP snooping, and IPTV VLAN configurations for more personalised network management. It also includes 3 Gigabit RJ45 ports for high-speed wired connections and consumes only 10W of power, making it both efficient and powerful. The Cudy M1500 operates in multiple modes—Router, Access Point, Range Extender, WISP, and Client to fit any network setup, and its elegant white design complements any modern home or office. Buy the Cudy M1500 3-Pack AX1500 Dual Band Wi-Fi 6 Mesh Router today from Techland BD, Bangladesh's most trusted tech retailer, and enjoy the best price, an authentic product warranty (1 year), and exceptional after-sales service.
Cudy M1500 3-Pack AX1500 Mesh System Router Price in BD
The Cudy M1500 3-Pack AX1500 Mesh System offers fast dual-band WiFi 6 performance up to 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, with each node featuring 3× Gigabit Ethernet ports, seamless mesh roaming, beamforming, MU-MIMO, and cloud control via the Cudy app. For shoppers in Bangladesh looking for reliable networking gear, Techland BD is the best shop, renowned for genuine stock and excellent after-sales service
How much area does the 3-pack Cudy M1500 cover?
The 3-pack system covers up to 4500 sq ft, ensuring whole-home Wi-Fi coverage without dead zones.
Does the Cudy M1500 support VPN connections?
A3: Yes, it supports PPTP, L2TP, and WireGuard VPN for secure remote access and online privacy.
