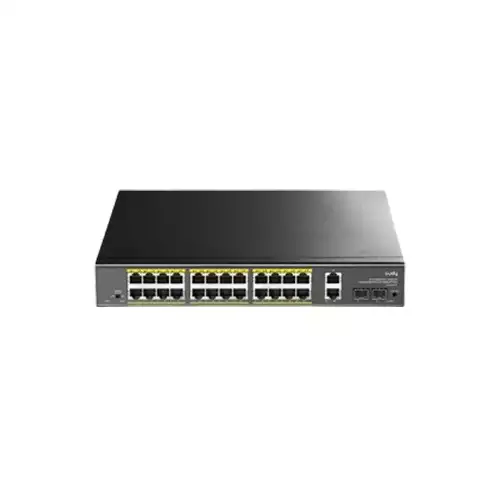

Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP - 1
Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP - 2

Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP

0 Reviews
Stock : Out of Stock
PID : P3002506064
Brand : Cudy
Model : GS1026PS2
Warranty : 1 year
  • 300W Power Supply
  • 2× Uplink GbE + 2× Uplink SFP
  • Watchdog under Extend Mode
  • Desktop, Rack-Mount

Product Pricing

Discount Price

৳18,900 ৳25,000
+ Available Payment Method

EMI Start From*

৳665

SPECIFICATIONS

Networking & Connectivity

Switching Capacity 802.3 Protocols:

802.3i 10BASE-T

802.3u 100BASE-T

802.3ab 1000BASE-T

802.3z 1.25 Gbps over Fiber

802.3x Flow Control

802.3af PoE

802.3at PoE

Port Management: Watchdog

Port Management Note: The Watchdog is on under the Extend

mode and will attempt to reboot the plugged-in but inactive client.

Battery And Power

Power Power Methods: AC

AC: 100-240V 50/60Hz

Max Power Consumption: 200W

Max Power Excluding PoE: 10W

Ports

Interface Physical Buttons: Default/Extend DIP switch,

PoE LED Toggle

1.25G SFP Slots: 2

Gigabit RJ45 Ports: 2

Gigabit RJ45 PoE Ports: 24

Max Power on a Single PoE Port: 30W

PoE Port Notes: PoE ports support 802.3at/af standards.

Extend Mode Ports: #17~#24

LED:

Power

DIP Mode (SW)

Link/ACT/PoE Status of Each PoE Port

Link/ACT of Each Ethernet Port

PoE Max Status

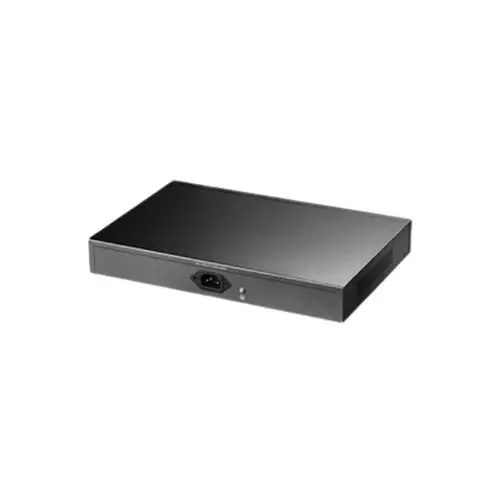

Power Input: AC Inlet

Others

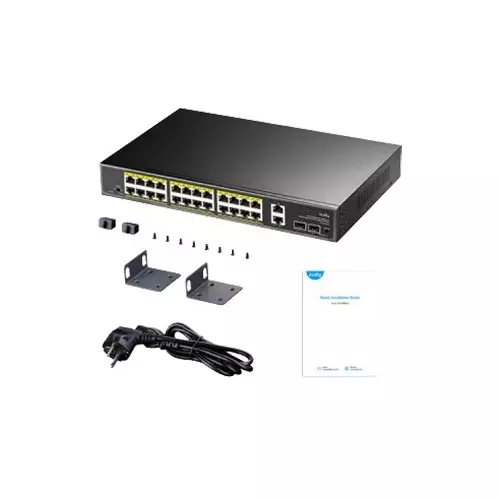

Included in the Box GS1026PS2

Power Cord

Mounting Kit

Installation Guide

Physical Specification

Color Black
Environment Operating Temperature: -10~50 ℃ (14~122 ℉)

Storage Temperature: -40~70 ℃ (-40~158 ℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
Materials Metal
Dimension 320×207×44 mm

12.6×8.15×1.73 inches
Weight 1986 g (70.05 oz.)

Technical Info

Installation Desktop, Rackmount via Brackets
Performance Copper Speed and Distance:

Cat. 3 or higher cable: 100 meters at 10 Mbps

Cat. 5 or higher cable: 100 meters at 100 Mbps

Cat. 5e or higher cable: 100 meters at Gigabit

Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance Note: 250-meter

Transmission is only available on the Extend Mode ports.

MAC Address Table: 8192

Max Switching Capacity: 56 Gbps

Max Forwarding Rate: 41.664 Mpps

Packet Buffer: 3 Mbit
Model GS1026PS2

Warranty Information

Warranty 1 year

DESCRIPTION

Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP in Bangladesh

Cudy GS1026PS2 24-GbE PoE Switch is a high-performance networking device available in Bangladesh at Tech Land BD, designed to deliver reliable Power over Ethernet (PoE) connectivity for businesses and advanced home networks. Featuring 24 Gigabit PoE ports (802.3at/af compliant) with a 30W max power per port, this switch efficiently powers IP cameras, VoIP phones, and wireless access points. It also includes 2 Gigabit RJ45 uplink ports and 2 SFP slots for fiber-optic or high-speed copper connections, ensuring flexible network expansion. The Extend Mode (ports #17–#24) supports 250-meter transmission over Cat5e cables, ideal for long-distance deployments. Built with a metal casing, it offers durability and supports both desktop and rackmount installations. With a 56 Gbps switching capacity, 41.664 Mpps forwarding rate, and 3 Mbit packet buffer, it ensures smooth data transfer. Additional features include PoE status LEDs, DIP switches for Default/Extend mode toggling, and Watchdog port management to reboot inactive devices. The switch operates in a wide temperature range (-10~50°C) and is backed by a 1-year warranty. Included in the box are the power cord, mounting kit, and installation guide. Perfect for SMEs and large networks, the Cudy GS1026PS2 combines power, efficiency, and scalability—available now at Tech Land BD for seamless PoE networking solutions.

Can I use the SFP ports for fiber-optic connections?

Yes, the two 1.25G SFP slots support both fiber-optic modules (SFP transceivers) and copper SFP modules, allowing for high-speed, long-distance network connections (up to several kilometers with fiber).

What is the "Extend Mode" feature, and how does it work?

The Extend Mode (ports #17–#24) enables 250-meter Ethernet transmission (at 10 Mbps) over Cat5e or higher cables, which is useful for remote devices like security cameras. This mode is activated via the DIP switch on the front panel.

Does the switch support rack mounting?

Yes, the metal-cased switch includes rack-mount brackets in the box, allowing for both desktop and standard 19-inch rack installation.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP Price in Bangladesh 2026 ?

The Cudy GS1026PS2 Price in BD is 18,900৳ . This Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP Manufacturing by Cudy Comes With 1 year Warranty & Based on 0 reviews. Tech Land BD Offers you Cudy GS1026PS2 by 18,900৳ and its regular price is 25,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
