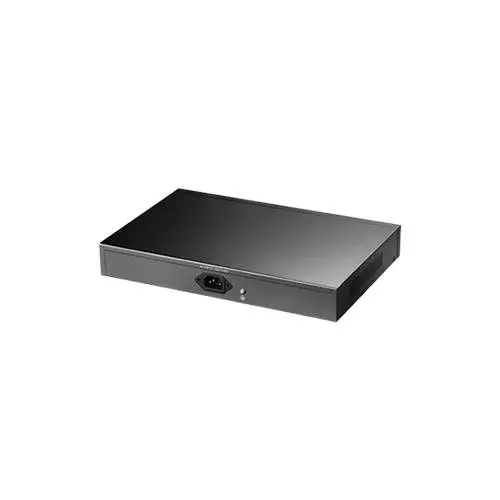

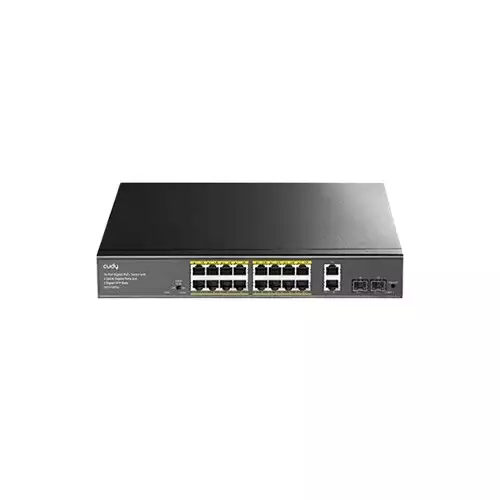

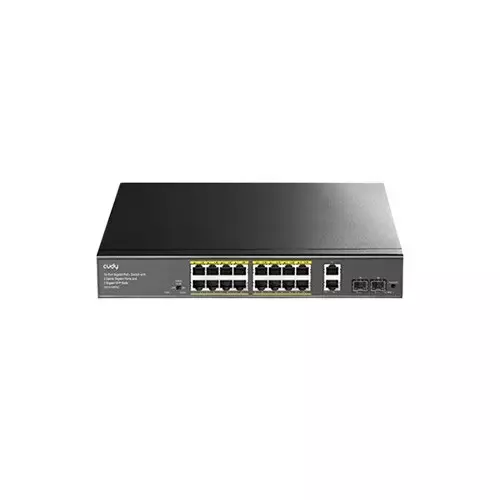

Cudy GS1018PS2 20 Port PoE Desktop Switch
Cudy GS1018PS2 20 Port PoE Desktop Switch
Cudy GS1018PS2 20 Port PoE Desktop Switch - 1
Cudy GS1018PS2 20 Port PoE Desktop Switch - 2

Cudy GS1018PS2 20 Port PoE Desktop Switch

0 Reviews
Stock : In Stock
PID : P3002506074
SKU : GS1018PS2 16-GBE
Brand : Cudy
Model : GS1018PS2
Warranty : 2-Years
  • Type - Network Switch
  • Number of Total Port - 20 Port
  • PoE - Yes
  • Data Transfer Rate - 10/100/1000 Mbps

Product Pricing

Discount Price

৳15,000 ৳15,500
+ Available Payment Method

EMI Start From*

৳528

SPECIFICATIONS

Networking & Connectivity

Switching Capacity 802.3 Protocols:

802.3i 10BASE-T

802.3u 100BASE-T

802.3ab 1000BASE-T

802.3z 1.25 Gbps over Fiber

802.3x Flow Control

802.3af PoE

802.3at PoE

Battery And Power

Power Consumption Max Power Consumption: 200W

Max Power Excluding PoE: 10W
Power AC: 100-240V 50/60Hz

Ports

Interface Physical Buttons: Default/Extend DIP switch

1.25G SFP Slots: 2

Gigabit RJ45 Ports: 2

Gigabit RJ45 PoE Ports: 16

Max Power on a Single PoE Port: 30W

PoE Port Notes: PoE ports support 802.3at/af standards.

Extend Mode Ports: #9~#16

LED: Power, Speed/Link/ACT of Each Ethernet Port, Extend Status

Power Input: AC Inlet

Others

Other Features Installation: Desktop, Rackmount via Brackets



Reliability

Grounding Methods: Three-Prong Plug

Lightning/Surge Protection: 4kV

ESD Contact Protection: 6kV

ESD Air Protection: 8kV

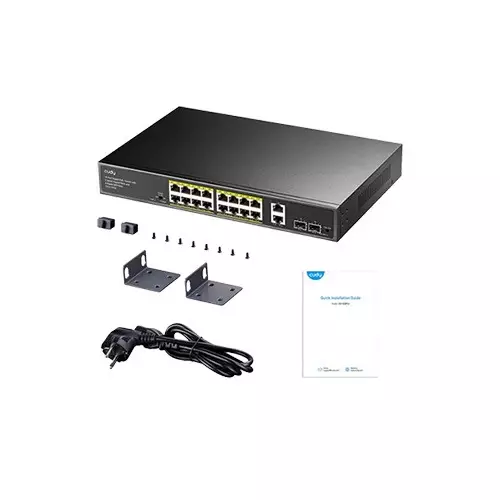

Included in the Box GS1018PS2

Power Cord

Mounting Kit

Installation Guide

Physical Specification

Color Black
Operating Humidity 10%~90% non-condensing
Storage humidity 5%~95% non-condensing
Materials Metal - (Casing)
Operating Temperature -10~50 ℃ (14~122 ℉)
Dimension 320×207×44 mm

12.6×8.15×1.73 inches
Storage Temperature -40~70 ℃ (-40~158 ℉)
Weight 1789g

Technical Info

Performance Copper Speed and Distance:

Cat. 3 or higher cable: 100 meters at 10 Mbps

Cat. 5 or higher cable: 100 meters at 100 Mbps

Cat. 5e or higher cable: 100 meters at Gigabit

Cat. 5e or higher cable: 250 meters at 10 Mbps

Copper Speed and Distance

Note: 250-meter transmission is only available on the Extend Mode ports.

MAC Address Table: 8192

Max Switching Capacity: 40 Gbps

Max Forwarding Rate: 29.76 Mpps

Packet Buffer: 3 Mbit
Brand Cudy
Model GS1018PS2

Warranty Information

Warranty 2-Years

DESCRIPTION

Cudy GS1018PS2 20-Port PoE Desktop Switch in Bangladesh

Cudy GS1018PS2 20-Port PoE Desktop Switch is a powerful and compact networking solution designed to support high-performance wired networks, ideal for small to medium-sized businesses, IP surveillance, and office environments in Bangladesh. This model features 16 Gigabit PoE+ ports, 2 standard Gigabit Ethernet ports, and 2 high-speed 1.25G SFP uplink slots, providing excellent connectivity options. With IEEE 802.3af/at compliance, each PoE port delivers up to 30W, while the total PoE budget of 200W ensures reliable operation of IP cameras, access points, and VoIP phones. A unique Extend Mode supports data transmission up to 250 meters (on ports 9–16), which is particularly useful for CCTV systems deployed over long distances. The switch boasts a switching capacity of 40 Gbps, forwarding rate of 29.76 Mpps, and a MAC address table supporting 8192 entries, making it suitable for demanding applications. For ease of use and diagnostics, it includes LED indicators for power, link/activity, and extend status, while the Default/Extend DIP switch makes configuration effortless. The durable metal casing ensures protection and longevity, while desktop and rackmount options offer flexible installation. With advanced ESD protection (6kV contact, 8kV air) and 4kV surge protection, this switch is built to withstand power fluctuations and harsh environments. Whether for expanding your office network or setting up a comprehensive CCTV system, the Cudy GS1018PS2 offers premium features and reliable performance at an affordable price. You can purchase this powerful PoE switch from Tech Land BD, the trusted destination for authentic Cudy networking products in Bangladesh.


Does this switch support long-distance CCTV connections?

Yes, the Extend Mode allows up to 250 meters transmission on ports 9 to 16.

Can I use fiber uplink with this model?

Yes, it includes 2× 1.25G SFP slots for fiber connectivity.

How many PoE devices can it power?

It can power up to 16 devices, each with a maximum of 30W per port, within a total PoE budget of 200W.
