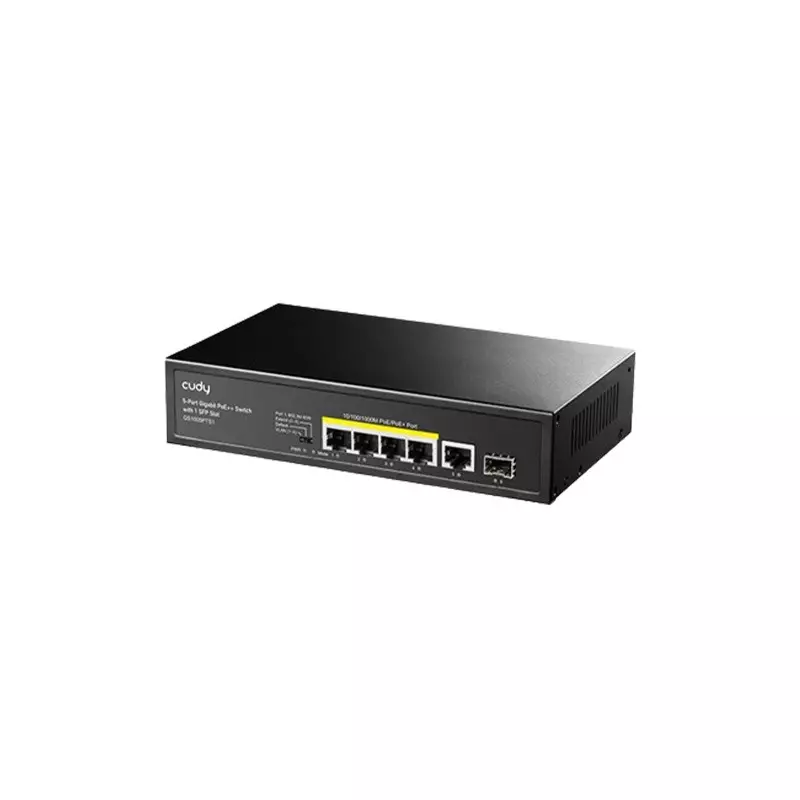

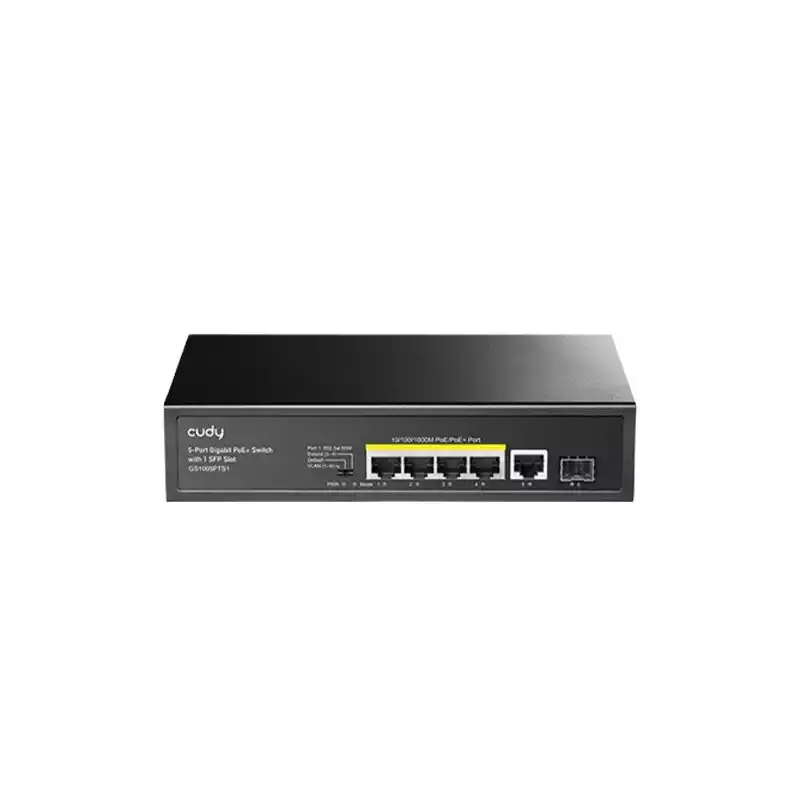

Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot
Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot
Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot - 1
Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot - 2

Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot

0 Reviews
Stock : In Stock
PID : P3002506038
Brand : Cudy
Model : GS1005PTS1
Warranty : 2 Years
  • Input Voltage: AC 100-240 V
  • Working Temperature: -20~50°C
  • Storage Temperature: -40~85°C
  • Switching Capacity: 12Gbps

Product Pricing

Discount Price

৳4,900 ৳6,000
+ Available Payment Method

SPECIFICATIONS

Networking & Connectivity

Network Protocol IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)
MAC Address Table 2K
Protocols PoE

IEEE802.3af -（15.4W

IEEE802.3at -（30W）

IEEE802.3at -（4 Pair 60W）
Network Media (Cable) 10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)
Switching Capacity 12Gbps
Jumbo Frame 9216bytes

Battery And Power

Input Power AC 100-240 V

Ports

Optical Drive Media:

Multimode fiber: 50/125, 62.5/125, 100/140μm

Single-mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Special Features

Lighting Powered

Un-Light: No Power



Mode（DIP):

Lighting: VLAN

Un-Light: Default



1-6 Gree（Link&Data):

Lighting: Connecting

Un-Light: Disconnect

Others

Other Features Throughput: 8.928Mpps

Packet Buffer: 1Mb

PWR（power supply)



DIP Switch:

VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default: In normal mode, all ports can communicate with each other, and the transmission distance is within 100 meters

Extend: Link extension mode, 3-4 ports PoE power supply, and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Physical Specification

Color Black
Package Contents Switch 1 pcs

Power cord 1 pcs

User manual 1 pc

Certification 1 pc
Working Humidity 10%~90%，non-condensing
Package Dimension 245*190*60mm
Working temperature -20~50°C
Height Working : Maximum10,000 feet

Storage : Maximum 10,000 feet
Dimension 200*118*44mm
Storage Temperature -40~85°C

5%~90%，non-condensing
Weight N.W: 0.6kg

G.W: 0.9kg

Technical Info

Flash Extend



1-6 Gree（Link&Data):

Flashing: Data Transmit
Transfer Method Store and forward
Model GS1005PTS1
MTBF 100000 hour

Warranty Information

Warranty 2 Year

DESCRIPTION

Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot in Bangladesh

The Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot, now available at TechLand BD, offers seamless connectivity and high-performance networking capabilities for both home and office environments. Cudy GS1005PTS1 Desktop Switch price in bd makes it an unbeatable deal. With a switching capacity of 12Gbps and throughput of 8.928Mpps, it ensures fast and reliable data transmission. Equipped with 5 Gigabit PoE+ ports and 1 SFP slot, it supports IEEE802.3af/at PoE protocols, providing power and data transmission over a single Ethernet cable, simplifying your network setup. The switch also features VLAN and port isolation modes for enhanced network security and control. With its compact design and easy installation, the Cudy GS1005PTS1 is a versatile networking solution. Upgrade your network infrastructure with the Cudy GS1005PTS1 5-Port Gigabit PoE+ Desktop Switch and enjoy seamless connectivity and high-performance networking, available now at TechLand BD!

Secure your Cudy GS1005PTS1 4-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot from Tech Land BD today.

Tech Land BD is your trusted source for the original Cudy GS1005PTS1 5-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot. We boast an extensive collection of the latest Cudy Desktop Switch for you to choose from. Place your order online or drop by your nearest Tech Land BD store to grab yours at an unbeatable price. Rest assured, your Cudy GS1005PTS1 5-Port Gigabit PoE+ Desktop Switch with 1 SFP Slot comes with a 1-year warranty.
