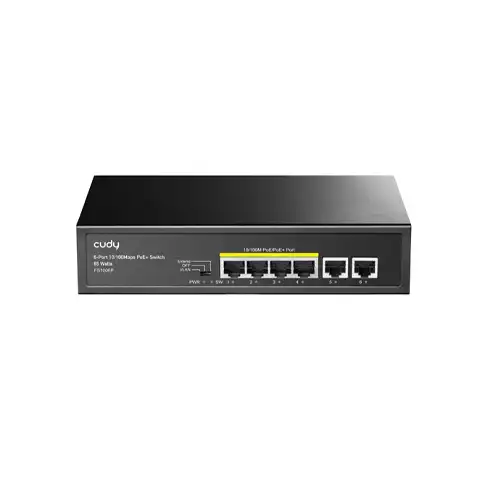

Cudy FS1006P 6-Port 10/100M PoE+ Switch
Best Cudy FS1006P 6-Port 10/100M PoE+ Switch BD
| Network Protocol | IEEE802.3 / IEEE802.3u IEEE802.3x / IEEE802.3af/at |
| Interface | 6*10/100Mbps RJ45 port |
| POE port output | DC 52V |
| PoE port | PoE port |
| AC Input Voltage | AC100~240V |
| Output | 52V ~ 1.25A |
| Power supply | 65W |
| Others | MAC Address: 1K MAC address table Packet buffer: 448K bit Transfer Mode: Store-and-forward Bandwidth: 1.2Gbps Device Dimension: 200mm*120mm*45mm |
| special features | Operating Temperature: -20°C ~ 50 °C Storage Temperature: -40 °C ~ 80 °C Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing Certification: CE, FCC Class A |
| Machine weight | <1kg |
Best Cudy FS1006P 6-Port 10/100M PoE+ Switch BD
Cuddy FS1006P 6-Port 10/100M PoE+ Switch it has come to 6 Ethernet ports, 4 port PoE+ with 60W total power budget, 2 port uplink ideal for connecting NVR and Internet. Compact Design with Internal Power Supply. Power over Ethernet with 802.3at and 802.3af compliant. Power-Over-Ethernet (PoE) and PoE+ options are available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices. CCTV function support remote power and data feeding up to 250m long distance, which is easy to expand network via ethernet cable to somewhere without power supply but needs fix device such as IP Cameras. With PD detect function, this PoE switch support auto-detect power device, and will not burn non-standard PoE device or normal PoE switch. Pin assignment: alternative 1/2 (+), 3/6 (-). The high-Quality chipset inside: Use a high-quality POE chip to ensure the stable operation of the product.Plug & play: Mode A alternative 1/2 (+), 3/6 (-) power supply, simple set up with no software or configuration needed.
