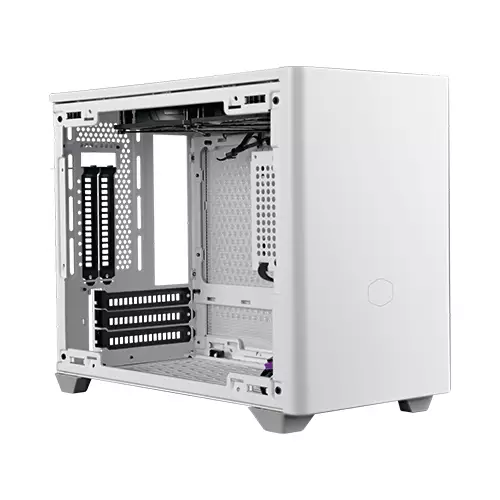

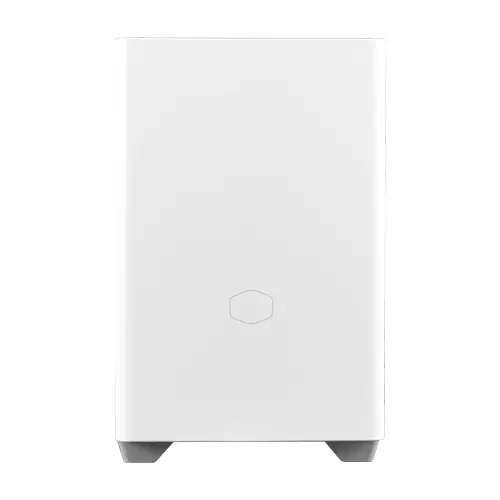

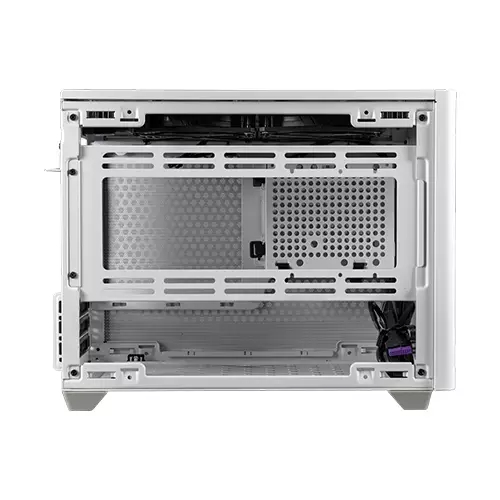

Cooler Master NR200P Max PC Case
PRODUCT NUMBER
| NR200P-MCNN85-SL0
|
EXTERIOR COLOR
| White
|
MATERIALS
| EXTERIOR- SGCC STEEL, MESH, ABS PLASTIC LEFT SIDE PANEL - TEMPERED GLASS X1, STEEL X1
|
VOLUME
| 18.30L
|
MOTHERBOARD SUPPORT
| MINI-ITX, MAX. SIZE: 170 X 180MM
|
EXPANSION SLOTS
| 3 |
LIQUID COOLER | 280mm AIO (Pre-installed)
|
DRIVE BAYS
| 5.25" ODD 0 3.5" HDD 1 (MAX. 2) 3.5" / 2.5" COMBO 1 2.5" SSD 2 (MAX. 3)
|
I/O PANEL
| 2 X USB 3.2 GEN 1 (USB 3.0), 1X 3.5MM HEADSET JACK (AUDIO + MIC)
|
INCLUDED ACCESSORIES
| 1X MASTERACCESSORY RISER CABLE PCIE 4.0 X16 - 50MM
|
INCLUDED CPU COOLING SOLUTION
| 280MM RADIATOR, 2 X 140MM SICKLEFLOW PWM, GEN 3 COOLER MASTER PUMP / CPU BLOCK
|
INCLUDED POWER SUPPLY UNIT
| V850 SFX GOLD 850 WATT
|
FAN SUPPORT
| TOP 2 X 120MM / 2 X 140MM BOTTOM 1 X 120MM (MAX 15MM, WITH 3.5" HDD AT THE BOTTOM), 2 X 120MM (MAX 15MM, W/O 3.5" HDD AT THE BOTTOM)
|
RADIATOR SUPPORT
| TOP 240MM / 280MM
|
CLEARANCES
| CPU COOLER 67MM POWER SUPPLY 130MM GRAPHICS CARD L: 336MM (INCL. POWER CONNECTOR), H: 160MM (INCL. POWER CONNECTOR), W: 75MM (TRIPLE SLOT)
|
DUST FILTERS
| BOTTOM, LEFT, RIGHT, TOP PANELS
|
POWER SUPPLY
| SUPPORT SFX, SFX-L 850W PSU (Pre-installed)
|
DIMENSIONS
| 377 X 185 X 292MM (INCL. PROTRUSIONS), 361 X 185 X 274MM
|
Cooler Master NR200P Max PC Case in Bangladesh
Optimized for entry-level builders, pre-customized for the perfect fit. The MAX namesake is Cooler Master’s insignia of our products evolving together. The ecosystem is designed as tailored PC with maximum cooling potential included, more than enough wattage for future upgrades, and a modified chassis for a truly unique build platform. Whether first-time builders want a more efficient journey to their dream PC or build veterans seek an exclusive aesthetic & upgrade, the MAX line provides an out-of-the-box custom experience.
PRE-INSTALLED FEATURES
The pre-installed, pre-routed power supply and CPU-cooler allows for ease of building and optimal cable & tubing management. Install a motherboard, HDDs and finish off with a GPU: no hassle, no routing. Stow away excess cables and you’re good to go.
SMALL YET POWERFUL
The NR200P MAX thermal and power delivery solutions are specifically tuned to ensure compatibility with any high-end system a user can dream of. Being only 18 liters in volume, the NR200P MAX is design to simultaneously satisfy power, performance, and minimal footprint.
QUICK INSTALL GPU PANEL
The exclusive removable GPU panel simplifies the process of mounting large GPUs while enabling handsfree installation.
DO IT YOUR WAY
NR200P MAX offers users multiple options to customize the appearance and performance of the system. The included ventilated steel panel is ideal for keeping power hungry builds cool and running efficiently, while the edge-to-edge tempered glass panel provides a premium aesthetic.
850W GOLD CERTIFIED PSU
Next gen systems are becoming more and more power hungry and to power it all, NR200P MAX implements a 850W Gold certified PSU with custom length textured cables specifically designed to cover all performance needs. A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans, and a highly acclaimed 3rd gen Cooler Master pump/CPU block provides reliable cooling for the CPU. AMD sockets up to AM4 and Intel sockets up to LGA1700 are fully supported.
TRIPLE-SLOT GPU SUPPORT
NR200P MAX supports high performance triple-slot GPUs up to 336mm in length and 140mm in height, four 6+2 pin power cables included. The chassis has been specifically designed for a vertically mounted GPU to ensure powerful performance.
ALL THE STORAGE YOU NEED
NR200P MAX provides three dedicated 2.5” hard drive mounting locations. For extra storage, two optional 3.5” hard drive mounting locations may be available depending on hardware configuration.
EASILY ACCESSIBLE M.2 DRIVES
The motherboard tray is designed for unrestricted access to any m.2 drives installed behind the motherboard. The ventilated paneling ensures that m.2 storage drives installed in this location runs cool and reliably.
PREMIUM PCIE GEN4 RISER CABLE INCLUDED
NR200P MAX comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.
360° ACCESSIBILITY

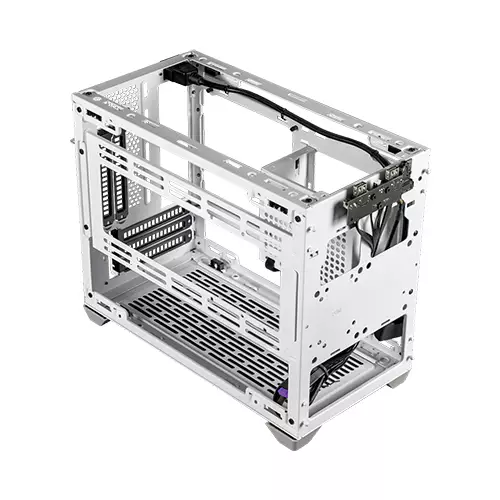

All exterior panels can be removed for component installation and cable management. The frame may also be disassembled for advanced access and freedom of customization in building complex systems.
COOLING EFFICIENCY BEYOND COMPARE
NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area. Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.
INCREASED RADIATOR DISSIPATION AREA
NR200P MAX’s radiator features a 25% increased aluminum fin surface area, outshining similarly sized water-cooling solutions on the market. Unmatched in thermal performance, this tailormade AIO is built to support a wide range of powerhungry components.
FEATURING THE LATEST GEN3 DUAL-CHAMBER PUMP
Cooler Master’s newly released dual-chamber pump allows you to enjoy a silent CPU cooling experience and heightened performance. Upgraded internal impeller and housing design enhances cooling efficiency while minimizing excessive noise
CUSTOM LENGTH PRE-ROUTED TUBING
Pre-routed for a user-friendly installation experience, water cooling components feature tailored length tubing for fast and hassle-free assembly.
INDUSTRIAL-GRADE MATERIALS
For 30 years Cooler Master has been renowned as the forerunner in industrial thermal solutions. NR200P MAX’s thermal solution utilizes industrial grade materials, thoroughly researched, developed and geared towards longevity and reliable performance.
