Product Information
Cooler Master MasterFrame 700 Custom Test Bench
Stock : Out of Stock
PID : P0462506054
SKU : MASTERF-700
Brand : Cooler Master
Model : MasterFrame 700
Warranty : 2 years
★
★
★
★
★
0 Reviews
Cooler Master MasterFrame 700 Custom Test Bench Overview
| SERIES | MASTER FRAME SERIES |
| SIZE | FULL TOWER |
| AVAILABLE COLOR(S) | BLACK |
| MATERIALS | STEEL, TEMPERED GLASS |
| DIMENSIONS (L X W X H) | 702 X 306 X 410MM / 27.64 X 12.05 X 16.14INCH (INCL. PANELS) |
| MOTHERBOARD SUPPORT | SSI EEB, SSI CEB, XL-ATX, E-ATX, ATX, MICRO ATX, MINI ITX |
| EXPANSION SLOTS | 8 |
| 2.5" / 3.5" DRIVE BAYS (COMBO) | UP TO 4 (PSU COVER) |
| 2.5" DRIVE BAYS | 7 (3 SSD BRACKETS + 4 PSU COVER) |
| I/O PANEL | 2X USB 3.1 GEN 2 TYPE-A, 1X USB 3.2 GEN 2 TYPE-C, 1X 3.5MM HEADSET JACK |
| SUPPORT | FAN SUPPORT - RIGHT SIDE: 3X 120MM / 2X 140MM FAN SUPPORT - LEFT SIDE: 3X 120MM / 2X 140MM RADIATOR SUPPORT - TOP UP TO: 360/420MM RADIATOR SUPPORT - RIGHT SIDE: UP TO 280/360MM RADIATOR SUPPORT - LEFT SIDE: UP TO 280/360MM |
| CLEARANCE | CLEARANCE - CPU COOLER: 158MM / 6.22INCH CLEARANCE - PSU: 210MM / 8.26INCH CLEARANCE - GFX: UP TO 450MM / 17.71INCH, 310MM / 12.20INCH RECOMMENDED FOR MAXIMUM COMPATIBILITY |
| CABLE ROUTING | 100MM |
| POWER SUPPLY SUPPORT | 2X ATX |
| MODEL NUMBER | MCF-MF700-KGNN-S00 |
| EAN CODE | 4719512115152 |
| UPC CODE | 884102087462 |
Cooler Master MasterFrame 700 Custom Test Bench in Bangladesh
The MasterFrame 700 is a highly customizable open-air frame that can convert between a showcase PC chassis or a highly flexible test bench. MasterFrame 700 features a 3-part design consisting of two side wings and a fully-featured motherboard tray. Four specially-designed friction hinges hold the side wings to the motherboard tray, allowing both full ranges of motion during assembly and stability when built, perfect for custom water-cooling loops.

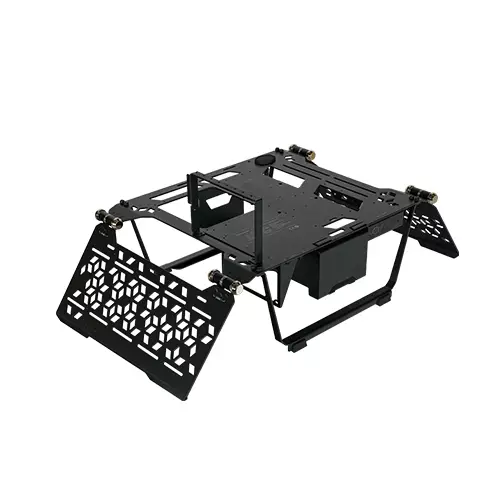

TEST BENCH MODE
The side wings can fold down towards the CPU socket and GPU areas to allow to localize the airflow to the components, especially useful when overclocking. The wings also serve as spots to hold triple-fan radiators and other accessories, and thanks to their full range of mobility, swapping components while keeping the cooling solution in place is now easier than ever.

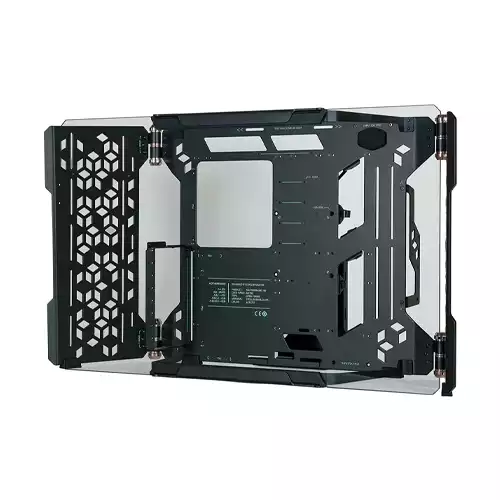

OPEN-AIR FRAME MODE
The MasterFrame 700 stands vertically to best display the components behind its panoramic tempered glass screen. The chassis offers an unmatched level of hardware compatibility, allowing for easy-fitting of oversized components.
UN-MATCHED HARDWARE SUPPORT
For its size, MasterFrame 700 sports an unmatched level of hardware compatibility. It is designed to fit any component available, even oversized ones. Users can mount up to SSI-EEB motherboards, multiple power supplies and multiple radiators at the same time and still have room for triple slots GPUs and storage.
MOTHERBOARD AND PSU SUPPORT
Our goal is to provide a limitless experience in hardware support. MasterFrame 700 allows you to mount any motherboard in the consumer market, even going so far as to support 14x14" SSI-EEB motherboards. Double support for ATX power supplies is available on the back, for systems that need double power supply and to cover every need during extreme overclocking sessions. If SSI-EEB motherboards are installed, the integrated support for custom watercooling pumps and reservoirs becomes unaccessible. In this case, users are recommended to install pump/reservoirs combos directly to the radiators.

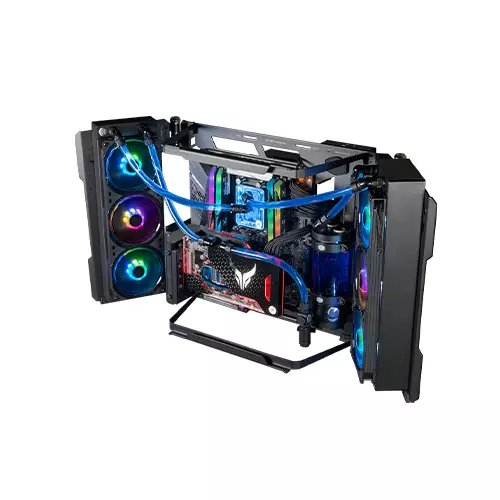

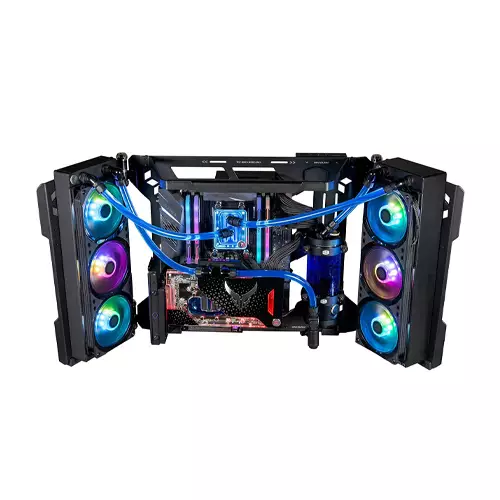

COOLING SUPPORT
With MasterFrame 700 users are able to install up to 2x 280/360mm radiators in "Open-Air" mode (on the two side wings) and a third 360/420mmradiator while in "Test-Bench" mode, in the proximity of the CPUsocket. The support for pumps and reservoirs on the right side of the motherboard tray allows to natively mount most of the solutions on the market, maintaining a high level of freedom with regard to the placement.
PREMIUM VARIABLE FRICTION HINGES
Heavy duty hinges hold the side wings to the mid-frame and allow for smooth repositioning at any angle depending on the user’s needs. Allen keys are included to adjust the tension of the hinges to make it easier to move or allow the side wings to hold heavier parts. This level of flexibility is a key factor for users creating extremely unique water-cooling loops and setups.
