Cooler Master Masterbox Td500 Specification
|
| Interface | Case Type: MID Tower Motherboard Support: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX Synchronization: 5V (3pin) with ASUS / MSI /ASROCK / GIGABYTE motherboard
Color: Black, White Expansion Slots: 7 MATERIALS : Steel, Plastic, Tempered Glass, Mesh
WEIGHT : 6.95 kg DUST FILTERS : Top, Bottom, Front POWER SUPPLY SUPPORT : Bottom mount, ATX Dimension(LxWxH): 493 x 217 x 469mm, 429.5 x 205x 447mm I/O Port: 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S00 versions), 1x ARGB 2-to-3 splitter |
Radiator Support
| TOP : 120mm, 240mm, 360mm, (44mm max motherboard component height) FRONT : 120mm, 140mm, 240mm, 280mm, 360mm REAR : 120mm |
Fan Support
| TOP : 3x 120mm, 2x 140mm FRONT : 3x 120mm, 2x 140mm REAR : 1x 120mm |
Pre-installed Fans
| FRONT : 3x 120mm ARGB Fans
|
| Drive Bays | 5.25" DRIVE BAYS : No
2.5" / 3.5" DRIVE BAYS (COMBO) : 2
2.5" DRIVE BAYS : 4 (2+2 combo) |
Clearance
| CPU COOLER : 165mm PSU : 180mm/7.08", 295mm/11.61" (w/ HDD cage removed) GFX : 410mm/16.1" |
AIRFLOW IN AN ART FORM
The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass.
Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge
POLYGONAL MESH
Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration. . | VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised. |

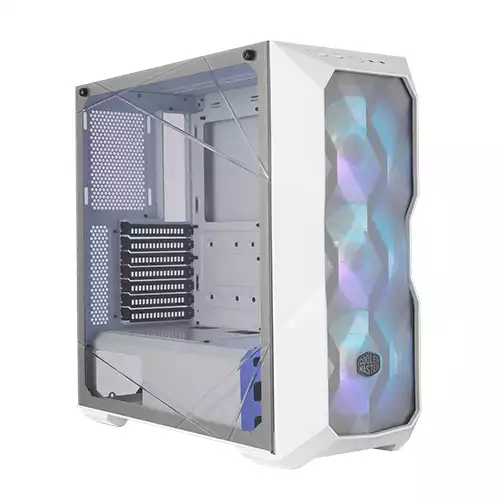

CRYSTALLINE TEMPERED GLASS
A crystalline design spans the edges of the tempered glass side panel, precision-engineered for strength as well as aesthetics, elevating how builds and system lighting interact with the design. | ROOM FOR UPGRADES
Support for up to a 410mm graphics card, a 165mm CPU cooler, and up to a 180mm PSU in length provides room for upgrades to stay ahead of the game. |
