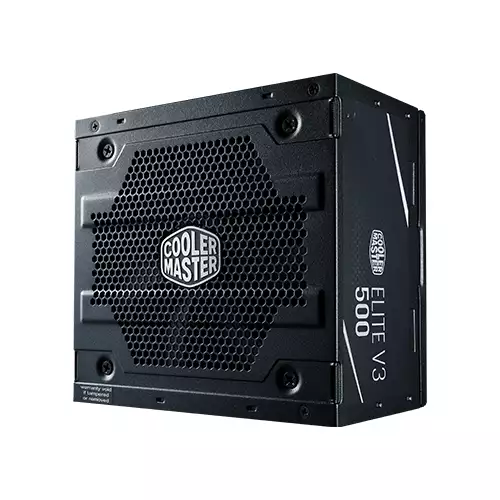

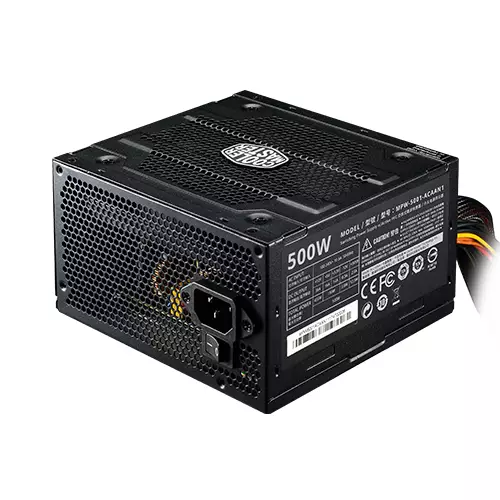

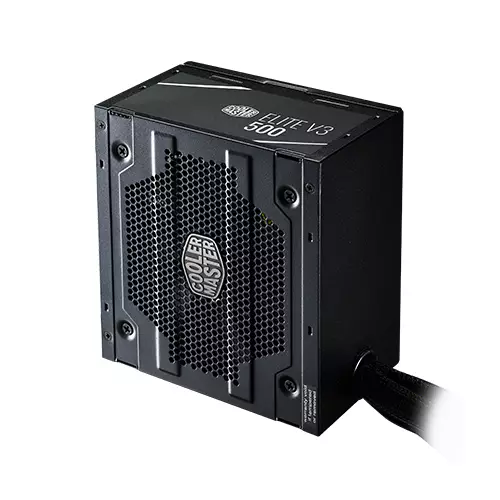

Cooler Master Elite V3 500W POWER SUPPLY
| Specification: |
- PRODUCT NAME : Elite V3 500W
- ATX VERSION : ATX 12V V2.31
- PFC : Active PFC (>0.9 typical)
- INPUT VOLTAGE : 100-240V
- INPUT CURRENT: 10-5A
- INPUT FREQUENCY : 50-60Hz
- DIMENSIONS (L X W X H) : 150 x 140 x 86 mm
- FAN SIZE : 120mm
- FAN BEARING : Sleeve Fan
- POWER GOOD SIGNAL : 100 - 500 ms
- HOLD UP TIME : >10ms at 100% Full Load
- EFFICIENCY : 75% @ Typical Load
- MTBF : >100,000 Hours
- OPERATING TEMPERATURE : 10-40°C
- PROTECTIONS : OVP, OPP, OTP, SCP
- REGULATORY : TUV, cTUVus, CE, FCC, BSMI
- MB 20+4 PIN CONNECTORS: 1
- CPU 12V 4+4 PIN CONNECTORS 1
- SATA CONNECTORS 6
- PERIPHERAL 4-PIN CONNECTORS 3
- FDD CABLE 4-PIN CONNECTORS 1
- PCI-E 6+2 PIN CONNECTORS : 2
|
**2 years warranty |
Cooler Master Elite V3 500W POWER SUPPLY
The Elite V3 500W Power Supply from Cooler Master. Capable of delivering up to 500W power output over a single +12V rail, this ATX 12V power supply comes with a non-modular design, meaning all its sleeved cables are attached to the device.
The Elite V3 500W PSU features two PCIe connectors, six SATA connectors, three peripheral connectors, and a floppy connector, while a 120mm fan with an intelligent fan controller is designated to keep the power supply cool and quiet. The PSU has a 75% efficiency rating.
ELITE V3
The new Elite V3 power supply is a dependable choice for the everyday PC user. The included 120mm quiet fan, PCI-E support, and global 3 year warranty delivers a PSU that provides function and resilience you can count on. It's the perfect option for users and applications that don't require 80 Plus efficiency to get the job done. This power supply has been engineered for reliability with a focus on reducing random shutdowns in brownout conditions when power sources are unstable. The Elite V3 is a complete solution delivering powerful stability in a small package for an affordable price.
75% EFFICIENCY
The efficiency of your power supply unit is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The new Elite V3 series has a guaranteed typical efficiency of 75%.
ACTIVE POWER FACTOR CORRECTION
A power supply unit works by taking power directly from the wall or other fixed power source, converting it to the correct output required by the connected components, and then distributing that power to said components. If any part of this process is interrupted or executed poorly, the connected components and the PSU itself could be damaged. Active PFC uses a circuit to correct power factor leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.
HIGHER TEMPERATURE RESISTANCE
The new Elite V3 has a maximum operating temperature of 40°C. That's at the level of many 80 Plus certified power supply units on the market today. This higher operating temperature allows you to power your system safely in warmer environments without having to worry about your system overheating or shutting off unexpectedly. The higher heat resistance also reduces temperature based wear, increasing the lifespan of the unit by a noticeable amount.
