| Stock Status | Call For Price |
| Product ID | 27826 |
| Product SKU | TLCNTZ-5300 |
| Brand | Canon |
| Product model | IMAGEPROGRAF TZ-5300 |
| Warranty | 1 Year |
| Total Reviews | Based on 0 reviews. - Write a review |
| Memory | |
| Memory | Standard: 128 GB Physical: 2 GB |
| Battery And Power | |
| Power | Power Supply AC 100 - 240 V, 50 - 60 Hz Power Consumption Printing*6 157 W or less Sleep Mode*6 2.0 W or less Power Off 0.3 W or less |
| Networking & Connectivity | |
| Connectivity | USB A Port: USB Memory (Direct Print) USB B Port (Series B, 4 pins): Hi-Speed USB Full Speed (12 Mbit/sec) High Speed (480 Mbit/sec) Bulk Transfer Gigabit Ethernet: IEEE 802.3 10base-T IEEE 802.3u 100base-TX/Auto-Negotiation IEEE 802.3ab 1000base-T/Auto-Negotiation IEEE 802.3x Full Duplex SNMP, HTTP, FTP, TCP/IP (IPv4/IPv6) Wireless LAN: IEEE802.11b/g/n WEP (64/128bit) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
| Resolution technology | 2400 x 1200 dpi |
| Media | Media Feed and Output Roll Paper Two Roll, Front Load, Front Output / Top Output Cut Sheet Front Load, Front Output*3 Media Width (Roll / Cut Sheet) 203.2 ～ 917 mm Min. Printable Length Roll Paper Front Output: 203.2 mm, Top Output: 205 mm Cut Sheet 203.2 mm Min. Printable Length Roll Paper 18 m*4 Cut Sheet 610 mm Maximum Outer Roll Diameter 175 mm or less Borderless Printing Width (Roll paper only) 203.2 ～ 917 mm Margins (Recommended Area) Roll Paper Top: 20 mm, Bottom: 3 mm, Side: 3 mm Cut Sheet (Apple AirPrint) Top: 20 mm, Bottom: 31 mm, Side: 3 mm Cut Sheet (Others) Top: 20 mm, Bottom: 20 mm, Side: 3 mm Margins (Printable Area) Roll Paper Top: 3 mm, Bottom: 3 mm, Side: 3 mm Roll Paper (Borderless Print) Top: 0 mm, Bottom: 0 mm, Side: 0 mm Cut Sheet (Apple AirPrint) Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm Cut Sheet (Others) Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
| Printing | Printer Language
SG Raster (Swift Graphic Raster)
HP-GL/2
HP RTL
PDF (Ver. 1.7)
JPEG (Ver. JFIF1.02)
Print Speed Plain Paper CAD Drawings, A0 26 sec [Fast (Custom Q5)] 35 sec [Fast] 1 min 6 sec [Standard] Poster, A0 29 sec [Fast (Custom Q5)] 41 sec [Fast] 1 min 15 sec [Standard] Heavyweight Coated Paper HG Poster, A0 2 min 34 sec [Standard] Glossy Photo Paper HG 170 Poster, A0 5 min 15 sec [Standard] |
| INK | Minimum Ink Droplet Size
5 pl Ink Capacity Sales Ink: 330 ml / 700 ml (MBK, BK, C, M, Y) Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y) Ink Type Pigment Ink |
| Technical Info | |
| Function Type | |
| Physical Specification | |
| Dimension | Main Unit
1548 x 762 x 1126 mm (Basket Closed)
Main Unit + Paper Output Support + Top Output Guide 1548 x 1293 x 1189 mm (Basket Open) 1548 x 960 x 1189 mm (Basket Closed) |
| Weight | Main Unit
206 kg Main Unit + Paper Output Support + Top Output Guide 207 kg |
| Others | |
| Other Features | Printer Type
5-Colour 36" (914 mm) Number of Nozzles 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） Nozzle Pitch 1200 dpi (2 lines) Line Accuracy ± 0.1% or less Hard Disk 500 GB (Encrypted) |
| Warranty Information | |
| Warranty | 1 Year |

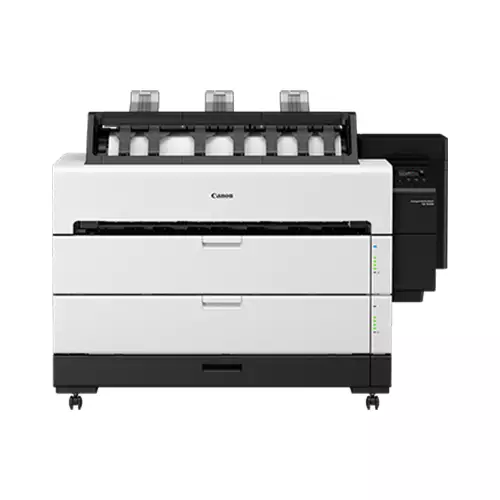

CANON IMAGEPROGRAF TZ-5300 LARGE FORMAT PRINTER IN BANGLADESH
Features
Fast Print Speed
Twin carriage motors ensure maximum productivity is achieved on the TZ series. With print data processing, pre-print operation and print spooling optimised, the TZ series realised fast throughput during continuous printing (up to 4 pages per minute for A1 sheets) and fast first print from standby or sleep mode (as fast as 19 seconds).
Productivity At Its Peak
Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Top delivery tray supports stacking of up to 100 A0 size sheets, while hot-swap replacement allows empty ink tanks and media roll to be replaced while the printer continues to print, maximising productivity.
Simplified Media Handling
Automatic media loading and automatic media type detection simplified the media loading and replacement workflow to just one step, which is to "simply place the roll and slide" into the printer. Roll paper indicator allows user to check from a distance if a roll is loaded, the approximate remaining media amount and time to switch the roll. Remaining roll amount is displayed on operation panel and alert will be sent out when media is not sufficient to complete the print job.
Borderless Printing
Borderless printing on standard and custom sizes for all supported media. With additional feature such as three-sided edge-to-edge printing, the TZ series can handle any poster printing task with ease.
Unparalleled Security
Print jobs and data are encrypted and transmitted through secured protocol throughout the print process. Secure file and disk erasure, user access restriction and printer functionality restriction further prevent information leaks and other security risks, result in unparalleled security.
LUCIA TD Ink
5-colour LUCIA TD pigment ink is formulated to produce sharp text, accurate lines, and vivid colours with excellent weather resistance, even on plain paper.
FINE Print Head
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
L-COA PRO Image Processing Engine
L-COA PRO imaging processor is capable of processing massive image data, drives high printing speed while maintaining supreme print quality, enabling fast first print out time and continuous printing speed.
High Precision Mechanical Platform
The unibody structure is engineered to provide strong and stable platform, maintaining a precise distance between print head and media, virtually eliminating oscillation for high-precision ink placement with minimal inter-colour discrepancy.
Non-Firing Detection and Compensation System
Equipped with in-built sensor, the non-firing detection and compensation system checks the ink ejection from print head nozzles and when a blockage is detected, another nozzle automatically provides backup. This prevents banding and reduces the frequency of print head cleaning required.
