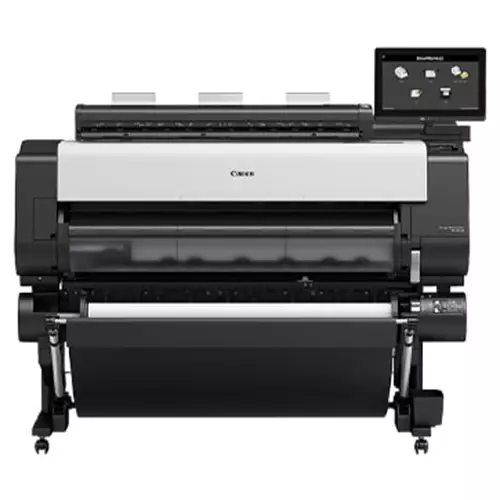

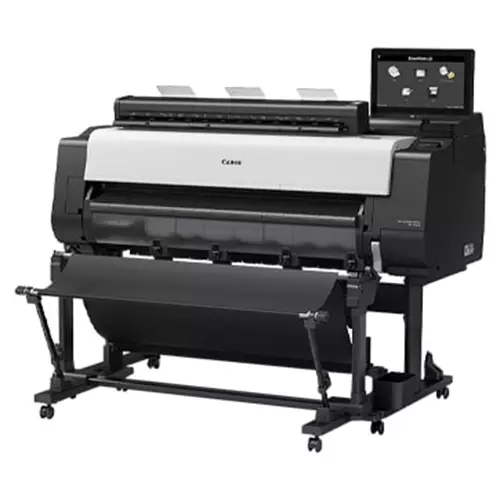

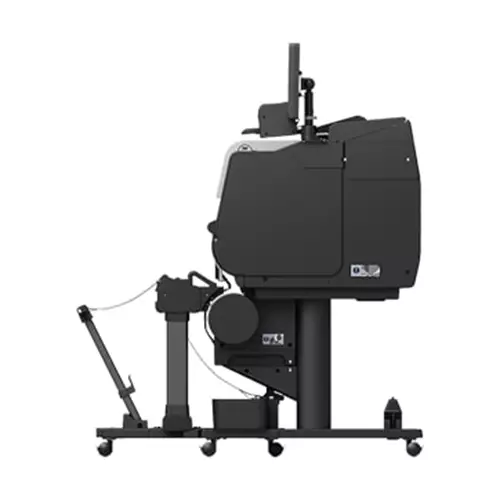

CANON IMAGEPROGRAF TM-5410 LARGE FORMAT PRINTER
CANON IMAGEPROGRAF TM-5410 |
| Printer Type | 5-Colour 44" (1,118 mm), (Only Print) |
| Number of Nozzles | 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each) |
| Maximum Print Resolution | 2400 x 1200 dpi |
| Nozzle Pitch | 1200 dpi (2 lines) |
| Line Accuracy | ±0.1% or less |
| Minimum Ink Droplet Size | 5 pl |
| Ink Capacity | Sales Ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y) Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y) |
| Ink Type | Pigment Ink |
| Printer Language | SG Raster (Swift Graphic Raster) HP-GL/2 HP RTL JPEG (Ver. JFIF 1.02) |
| Printing Solutions | Apple AirPrint, Direct Print Plus, Direct Print And Share CPP Driver Select And Publisher Select AutoCAD Optimized Printer Driver Easy-PhotoPrint Editor Canon PRINT Inkjet/SELPHY Canon Print Service Free Layout plus PosterArtist Lite imageRUNNER ADVANCE Direct Enlargement Copy |
| Management Solutions | Media Configuration Tool Accounting Manager Device Management Console > Quick Utility Box |
| Standard Interfaces (Built-in) | USB A Port: USB Memory (Direct Print) USB B Port (Series B, 4 pins): Hi-Speed USB Full Speed (12 Mb/sec) > High Speed (480 Mb/sec) Bulk Transfer, Series B (4 pins) Gigabit Ethernet: IEEE 802.3 10base-T, IEEE 802.3u 100base-TX/Auto Negotiation , IEEE 802.3ab 1000base-T/Auto Negotiation , IEEE 802.3x Full Duplex SNMP, HTTP, FTP, TCP/IP (IPv4/IPv6) Wireless LAN: IEEE802.11n/g/b WEP (64/128bit) WPA-PSK (TKIP/AES)WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
| Memory | Standard: 128 GB Physical: 2 GB |
| Hard Disk | 500 GB (Encrypted) |
| Plain Paper | |
| CAD Drawing - (A1) | 24 sec [Fast (Custom Q5)] 27 sec (Fast) 42 sec (Standard) |
| Poster - (A1) | 25 sec (Fast Custom Mode) 25 sec (Fast) 44 sec (Standard) |
| Heavyweight Coated Paper HG Poster (A1) | 40 sec (Fast) 1 min 17 sec (Standard) |
| Glossy Photo Paper HG 170 | |
| Poster, A0 | 2 min 59 sec [Fast] 5 min 44 sec [Standard] |
| Media Handling | |
| Media Feed And Output | |
| Roll Paper (Single) | Front Load, Front Output |
| Cut Sheet | Front Load, Front Output*3 |
| Media Width (Roll / Cut Sheet) | 152.4 ～ 1,118 mm |
| Media Thickness (Roll / Cut Sheet) | 0.07 ～ 0.8 mm |
| Min. Printable Length | |
| Roll Paper | 18 m*5 |
| Cut Sheet | 203.2 mm |
| Max. Printable Length | |
| Roll Paper | 18 m*5 |
| Cut Sheet | 1.6 m |
| Maximum Outer Roll Diameter | 170 mm or less |
| Borderless Printing Width | 152.4 ～ 1,118 mm |
| (Roll paper only) | |
| Margins (Recommended Area) | |
| Roll Paper | Top: 20 mm, Bottom: 3 mm, Side: 3 mm |
| Cut Sheet (Apple AirPrint) | Top: 20 mm, Bottom: 31 mm, Side: 3 mm |
| Cut Sheet (Others) | Top: 20 mm, Bottom: 20 mm, Side: 3 mm |
| Margins (Printable Area) | |
| Roll Paper | Top: 20 mm, Bottom: 3 mm, Side: 3 mm |
| Roll Paper (Borderless Print) | Top: 0 mm, Bottom: 0 mm, Side: 0 mm |
| Cut Sheet (Apple AirPrint) | Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm |
| Cut Sheet (Others) | Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
| Dimensions And Weight*6 | |
| Dimensions (W x D x H) | |
| Main Unit + Stand + Basket | 1593 x 984 x 1168 mm (Basket Open) 1593 x 766 x 1168 mm (Basket Closed) |
| Main Unit + Roll Unit + Stand + Stacker | 1593 x 1188 x 1168 mm (Basket Open) 1593 x 1122 x 1168 mm (Basket Closed) |
| Roll Unit | 1577 x 336 x 318 mm |
| Weight | |
| Main Unit + Stand + Basket | 114 kg |
| Main Unit + Roll Unit + Stand + Stacker | 146 kg |
| Roll Unit | 20 kg |
| Packaged Dimensions (W x D x H) | |
| Main Unit + Stand + Basket + Pallet | 1820 x 915 x 1061 mm |
| Stacker | 1464 x 906 x 291 mm |
| Roll Unit | 1727 x 562 x 461 mm |
| Packaged Weight | |
| Main Unit + Stand + Basket + Pallet | 165 kg |
| Stacker | 25 kg |
| Roll Unit | 30 kg |
| Power And Operating Requirements | |
| Power Supply | AC 100 - 240 V, 50 - 60 Hz |
| Power Consumption | |
| Printing | 116 W or less |
| Sleep Mode | 2.0 W or less |
| Power Off | 0.3 W or less |
| Operating Environment | |
| Temperature | 15 ～ 30 ℃ |
| Humidity | 10 ～ 80 % RH (no dew condensation) |
| Acoustic Sound | |
| Acoustic Power*7 | Operation: Approx. 69 dB |
| Acoustic Pressure*7 | Operation: Approx. 51 dB (A) |
| Accessories | |
| Roll Unit (Required) | RU-42 |
| Stacker (Optional) | SS-41 |
| 2"/3" Roll Holder (Optional) | RH2-46 |
| Consumables | |
| Print Head | PF-06 |
| Cutter Blade | CT-07 |
| Maintenance Cartridge | MC-30 |
| Ink Tank | PFI-8110 (160 ml) / PFI-8310 (330 ml) / PFI-8710 (700 ml) Matte Black / Black / Cyan / Magenta / Yellow |
| Included Accessories | |
| Ink Tank | 330 ml (MBK), 160 ml (BK, C, M, Y) |
| Print Head | PF-06 |
| Cutter Blade | CT-07 |
| Maintenance Cartridge | MC-30 |
CANON IMAGEPROGRAF TM-5410 LARGE FORMAT PRINTER in Bangladesh
The 44" printer is designed for businesses that demand advanced productivity, reliable quality, and streamlined workflow. With dual-roll feeding, impressive media handling capabilities, and all new MFP solutions, the TX-5410 MFP Z36 is ideal for printing CAD drawings and posters.
Features
- Perfect for CAD & poster printing
- Standard dual roll system
- Impressive media handling system
- 500 GB Encrypted hard disk drive
- Robust security, an extensive suite of software and solutions
- Multi-function printer
Fast Print Speed
The TX series realised faster throughput during continuous printing by optimising the pre-processing of print data, process of media cutting and media transport. Pre-print operation and print spooling have been optimised to achieve faster first print from standby or sleep mode.
Productivity at Its Peak
Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports stacking of up to 100 A0 size sheets, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.
Media Handling Simplified
Automatic media loading and automatic media type detection simplified the media loading and replacement workflow to just one step, which is to "simply place the roll" into the printer. Printer will automatically carry out necessary adjustment and enters print-ready state with minimal supervision. Automatic remaining media estimation will display remaining roll amount on operation panel and send out alert when media is not sufficient to complete the print job.
Borderless Printing
Borderless printing on standard and custom sizes is now possible for all supported media. The printer is also capable of three-sided edge-to-edge printing on various sizes that do not match the roll paper width. This allows more flexibility in borderless printing task compared to the traditional standard four-sided borderless print.
Unparalleled Security
Print jobs and data are encrypted and transmitted through secured protocol throughout the print process. Secure file and disk erasure, user access restriction and printer functionality restriction further prevent information leaks and other security risks, result in unparalleled security.
New Generation Multi-function Printer
The Z36 scanner is designed to integrate with TX series to provide powerful scan, copy and print solution. With a scan resolution of 1200 dpi and powerful system controller that delivers speed and precision, TX series multi-function printer has everything needed to copy, scan, archive and share maps, drawings, renderings and posters.
Technologies
LUCIA TD Ink
5-colour LUCIA TD pigment ink is formulated to produce sharp text, accurate lines, and vivid colours with excellent weather resistance, even on plain paper.
FINE Print head
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
L-COA PRO Image Processing Engine
