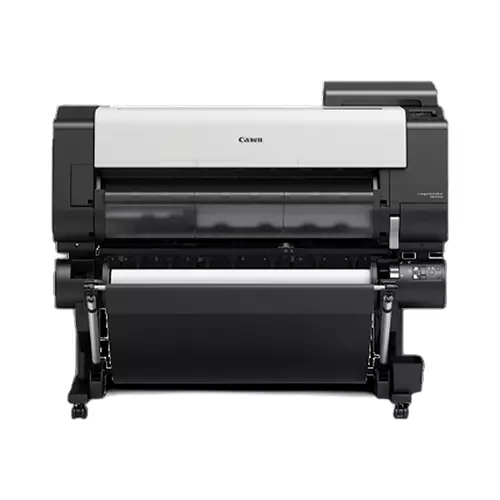

CANON IMAGEPROGRAF TX-5310 LARGE FORMAT PRINTER
- Brand: Canon
- Name: CANON IMAGEPROGRAF TX-5310 LARGE-FORMAT PRINTER
- Model: IMAGEPROGRAF TM-5310
SPECIFICATIONS
SG Raster (Swift Graphic Raster)
HP-GL/2
HP RTL
PDF (Ver. 1.7)
JPEG (Ver. JFIF1.02)
Printing Solutions
Apple AirPrint, Direct Print Plus, Direct Print & Share, CPP Driver Select & Publisher Select, AutoCAD Optimized Printer Driver, Easy-PhotoPrint Editor, Canon PRINT Inkjet/SELPHY, Canon Print Service, Free Layout Plus, PosterArtist Lite, imageRUNNER ADVANCE Direct Enlargement Copy
Print Speed
Plain Paper
CAD Drawings, A0
34 sec [Fast (Custom Q5)]
37 sec [Fast]
1 min 4 sec [Standard]
Poster, A0
37 sec [Fast (Custom Q5)]
42 sec [Fast]
1 min 15 sec [Standard]
Heavyweight Coated Paper HG
Poster, A0
1 min 38 sec [Fast]
2 min 33 sec [Standard]
Glossy Photo Paper HG 170
Poster, A0
2 min 59 sec [Fast]
5 min 44 sec [Standard]
Roll Paper (Single)
Front Load, Front Output
Cut Sheet
Front Load, Front Output*3
Media Width (Roll / Cut Sheet)
152.4 ~ 917 mm
Media Thickness (Roll / Cut Sheet)
0.07 ~ 0.8 mm
Min. Printable Length
Roll Paper
101.6 mm*4
Cut Sheet
203.2 mm
Max. Printable Length
Roll Paper
18 m*5
Cut Sheet
1.6 m
Maximum Outer Roll Diameter
170 mm or less
Borderless Printing Width
(Roll paper only)
152.4 ~ 917 mm
Margins (Recommended Area)
Roll Paper
Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut Sheet (Apple AirPrint)
Top: 20 mm, Bottom: 31 mm, Side: 3 mm
Cut Sheet (Others)
Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins (Printable Area)
Roll Paper
Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll Paper (Borderless Print)
Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut Sheet (Apple AirPrint)
Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut Sheet (Others)
Top: 3 mm, Bottom: 20 mm, Side: 3 mm
5 pl
Ink Capacity
Sales Ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y)
Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y)
Ink Type
Pigment Ink
Memory
Physical: 2 GB
Networking & Connectivity
USB Memory (Direct Print)
USB B Port (Series B, 4 pins):
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer
Gigabit Ethernet:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX/Auto-Negotiation
IEEE 802.3ab 1000base-T/Auto-Negotiation
IEEE 802.3x Full Duplex
SNMP, HTTP, FTP, TCP/IP (IPv4/IPv6)
Wireless LAN:
IEEE802.11 b/g/n
WEP (64/128bit)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Battery And Power
AC 100 - 240 V, 50 - 60 Hz
Power Consumption
Printing
115 W or less
Sleep Mode
2.0 W or less
Power Off
0.3 W or less
Others
5-Colour 36" (914 mm)
Number of Nozzles
15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each)
Nozzle Pitch
1200 dpi (2 lines)
Line Accuracy
± 0.1% or less
Hard Disk
500 GB (Encrypted)
Physical Specification
1390 x 984 x 1168 mm (Basket Open)
1390 x 766 x 1168 mm (Basket Closed)
Main Unit + Roll Unit + Stand + Stacker
1390 x 1188 x 1168 mm (Basket Open)
1390 x 1122 x 1168 mm (Basket Closed)
Roll Unit
1374 x 336 x 318 mm
124 kg
Main Unit + Roll Unit + Stand + Stacker
136 kg
Roll Unit
19 kg
Technical Info
Warranty Information
DESCRIPTION
CANON IMAGEPROGRAF TX-5310 LARGE FORMAT PRINTER IN BANGLADESH
Features
- Accounting Manager - Track ink and media usage for cost calculation and reporting.
- Media Configuration Tool - Easily manage, update and arrange media information in printer's operation panel and printer driver.
- Device Management Console - Effectively manages multiple printers, monitor activities such as error messages and printer information up to 50 printers.
- Quick Utility Toolbox - Quick access to supporting utilities and settings. From printer information, speed dial and destination folder settings to scanning and cloud sharing.
- Direct Print & Share - Batch printing, job presets, shortcut prints and cloud printing can be managed easily and efficiently.
- Free Layout Plus - Enjoy nesting, tiling and duplex printing features.
- AutoCAD® Optimized Printer Driver - Optimised printer driver for optimal printing control and enables faithful printing of drawing data created with AutoCAD®.
- Easy-PhotoPrint Editor - Edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more. Available on iOS, Android OS.
- Apple AirPrint - Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®.
- Canon Print Service - Direct document and photo printing via mobile app from Android devices without the need to download any printer-specific applications.
- Canon PRINT Inkjet/SELPHY - Print PDF files wirelessly via mobile app for Android tablet and smartphone.
Fast Print Speed
The TX series realised faster throughput during continuous printing by optimising the pre-processing of print data, process of media cutting and media transport. Pre-print operation and print spooling have been optimised to achieve faster first print from standby or sleep mode.
Productivity at Its Peak
Dual-roll feeding unit enables users to load up to two rolls of media, reducing the frequency of switching between different media types or sizes in high volume printing. Optional stacker supports stacking of up to 100 A0 size sheets, while the sub ink tank system allows empty ink tanks to be replaced while the printer continues to print, maximising productivity.
Media Handling Simplified
Automatic media loading and automatic media type detection simplified the media loading and replacement workflow to just one step, which is to "simply place the roll" into the printer. Printer will automatically carry out necessary adjustment and enters print-ready state with minimal supervision. Automatic remaining media estimation will display remaining roll amount on operation panel and send out alert when media is not sufficient to complete the print job.
Borderless Printing
Borderless printing on standard and custom sizes is now possible for all supported media. The printer is also capable of three-sided edge-to-edge printing on various sizes that do not match the roll paper width. This allows more flexibility in borderless printing task compared to the traditional standard four-sided borderless print.
Unparalleled Security
Print jobs and data are encrypted and transmitted through secured protocol throughout the print process. Secure file and disk erasure, user access restriction and printer functionality restriction further prevent information leaks and other security risks, result in unparalleled security.
LUCIA TD Ink
5-colour LUCIA TD pigment ink is formulated to produce sharp text, accurate lines, and vivid colours with excellent weather resistance, even on plain paper.
FINE Print head
Equipped with micron-sized nozzles, the fully integrated print head provides superb uniformity of ink density and colours, while multi-pass printing ensures highest print quality is maintained on every print.
L-COA PRO Image Processing Engine
L-COA PRO imaging processor is capable of processing massive image data, drives high printing speed while maintaining supreme print quality, enabling fast first print out time and continuous printing speed.
High Precision Mechanical Platform
The unibody structure is engineered to provide strong and stable platform, maintaining a precise distance between print head and media, virtually eliminating oscillation for high-precision ink placement with minimal inter-colour discrepancy.
Non-Firing Detection and Compensation System
