Stock Status | Call For Price |
Product ID | 27850 |
Product SKU | TLCNTM-5305P |
Brand | Canon |
Product model | IMAGEPROGRAF TM-5305 |
Warranty | 1 Year |
Total Reviews | Based on 0 reviews. - Write a review |
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Memory | |
Memory | Standard: 128 GB Physical: 2 GB |
Battery And Power | |
Power | Power Supply
AC 100 - 240 V, 50 - 60 Hz Power Consumption Operation: 69 W or less Sleep Mode: 3.6 W or less Power Off: 0.3 W or less |
Networking & Connectivity | |
Connectivity | USB A Port: USB Memory (Direct Print) USB B Port: Hi-Speed USB Full Speed (12 Mb/sec) High Speed (480 Mb/sec) Bulk Transfer Series B (4 pins) Gigabit Ethernet: IEEE 802.3 10base-T IEEE 802.3u 100base-TX/Auto-Negotiation IEEE 802.3ab 1000base-T/Auto-Negotiation IEEE 802.3x Full Duplex Wireless LAN: IEEE802.11n/g/b |
Resolution technology | 2400 × 1200 dpi |
Media | Media Feed Method (Single Roll)
Roll Paper: Upper Load, Front Output Cut Sheet: Upper Load, Front Output (Manual feed using media locking lever) Media Output (SD-23) Standard Position: 1 Sheet Folding Position: 20 sheets on A1 portrait/A0 portrait Flat Position: 20 sheets on A1 landscape/A2 landscape Media Width (Roll / Cut Sheet) 203.2 - 917 mm Media Thickness (Roll / Cut Sheet) 0.07 - 0.8 mm Minimum Printable Length Roll Paper: 203.2 mm Cut Sheet: 279.4 mm Maximum Printable Length Roll Paper: 18 m (varies according to the OS and application) Cut Sheet: 1.6 m Maximum Media Roll Outer Diameter 150 mm or less Borderless Printing Width (Roll Only) Recommended: 515 mm (B2), 728 mm (B1), 594 mm (A1), 841 mm (A0), 10", 14", 17", 24", 36" Printable: 257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 8", 12", 16", 20", 30", 300 mm, 500 mm, 600 mm, 800 mm |
Printing | Printer Language
SG Raster (Swift Graphic Raster)
HP-GL/2
HP RTL
PDF (Ver. 1.7)
JPEG (Ver. JFIF 1.02)
Print Speed CAD Drawing - Plain Paper (A0) 40 sec (Fast Economy Mode) 48 sec (Fast) 1 min 14 sec (Standard) CAD Drawing - Heavyweight Coated Paper HG (A0) 47 sec (Fast Economy Mode) 1 min 11 sec (Fast) 2 min 18 sec (Standard) Poster - Plain Paper (A0) 44 sec (Fast Economy Mode) 44 sec (Fast) 1 min 18 sec (Standard) Poster - Heavyweight Coated Paper HG (A0) 1 min 41 sec (Fast) 2 min 36 sec (Standard) |
INK | Minimum Ink Droplet Size
5 pl
Ink Capacity Sales Ink: 130 ml / 300 ml (MBK, BK, C, M, Y) Bundled Starter Ink: 130 ml (MBK) / 90 ml (BK, C, M, Y) Ink Type Pigment Ink: Matte Black, Black, Cyan, Magenta, Yellow) |
Technical Info | |
Function Type | |
Physical Specification | |
Dimension | Physical Dimensions & Weight
(Include roll holder set, exclude ink and print head)
Main Unit + Stand + Basket (SD-32): Approx. 1289 x 887 x 1060 mm (Basket Open) Approx. 1289 x 757 x 1060 mm (Basket Closed) Packaged Dimensions & Weight Main Unit + Stand + Pallet: Approx. 1462 x 913 x 961 mm |
Weight | Physical Dimensions & Weight
(Include roll holder set, exclude ink and print head): Approx. 61 kg Packaged Dimensions & Weight Approx. 105 kg |
Others | |
Other Features | Printer Type
5-Colour, 36" / 914 mm
Number of Nozzles 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each) Nozzle Pitch 1200 dpi x 2 Line Accuracy ± 0.1% or less Hard Disk 500 GB |
Warranty Information | |
Warranty | 1 Year |

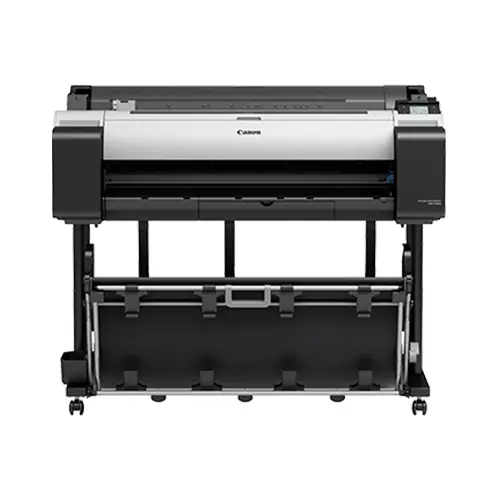

CANON IMAGEPROGRAF TM-5305 LARGE FORMAT PRINTER IN BANGLADESH
Features
- Device Management Console - Effectively manages multiple printers, and monitors activities such as error messages and printer information up to 50 printers.
- Quick Utility Toolbox - Quick access to supporting utilities and settings. From printer information, speed dial, and destination folder settings to scanning and cloud sharing.
- Direct Print & Share - Batch printing, job presets, and shortcut prints can be sent easily and efficiently.
- Free Layout Plus - Enjoy nesting, tiling and duplex printing features.
- AutoCAD® Optimized Printer Driver - Optimised printer driver for optimal printing control and enables faithful printing of drawing data created with AutoCAD®.
- Easy-PhotoPrint Editor - Edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more. Available on iOS, Android OS.
- Apple AirPrint - Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®.
- Canon Print Service - Direct document and photo printing via mobile app from Android devices without the need to download any printer-specific applications.
- Canon Print Inkjet/ SELPHY - Print PDF files wirelessly via mobile app for Android tablets and smartphones.
Superb Quality
The TM series boasts Canon’s LUCIA TD inks. This 5-colour fully pigment inks, with high surface tension, produces lines and text that are dense and crisp with minimal feathering. Vibrant colours can also be produced from LUCIA TD ink which enables users to economically print high quality drawings and posters on inexpensive uncoated plain paper. TM series offers a wider range of user applications and opens up new markets. Customers can expect superb vibrancy, print quality and longevity in outdoor displays when used with Canon’s water resistant media.
Quiet and Convenient
During operation the imagePROGRAF TM Series boasts a quiet acoustic sound level of only 44dB; thus enabling it to even fit in smaller office environment without a fuss. Users can also enjoy direct printing of JPEG and PDF files through USB Flash drive anytime on the new TM Series.
Abundance Software
The new imagePROGRAF TM Series include a variety of software designed to bring out the full potential in your printer. With an abundance of software included, the imagePROGRAF TM Series is equipped with everything needed to print technical documents, maps, posters, banners, signage, infographics, designs, and more.
LUCIA TD ink
The TM Series employs the all-new five-colour pigment LUCIA TD ink which renders unparalleled detailed precision needed for CAD/GIS files even on uncoated plain paper. Realise true potential to print vibrant, weather resistant colour posters with LUCIA TD ink.
FINE Print head
Get rich and grain-free quality photo image with minimum ink droplets and high printing resolution for lab-quality printouts.
L-COA PRO Image Processing Engine
L-COA PRO imaging processor drives high printing speed and supreme print quality.
