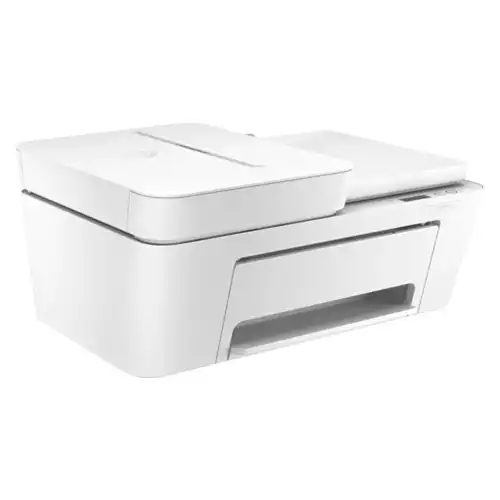

HP DeskJet Ink Advantage 4175 All-in-One Printer

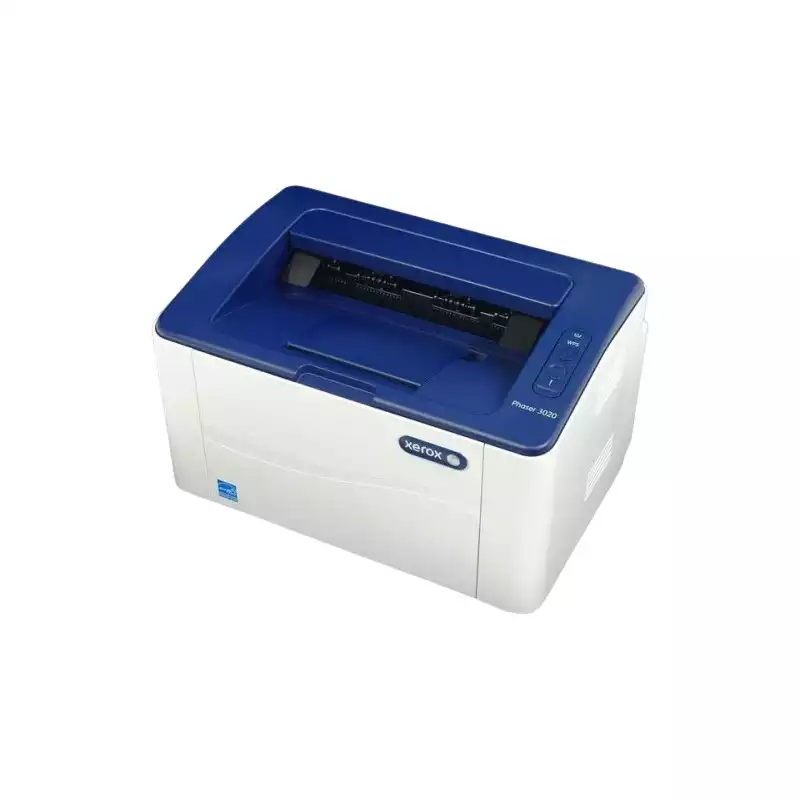

XEROX PHASER 3020 MONOCHROME LASER PRINTER
HP LaserJet Pro M254nw Color Printer

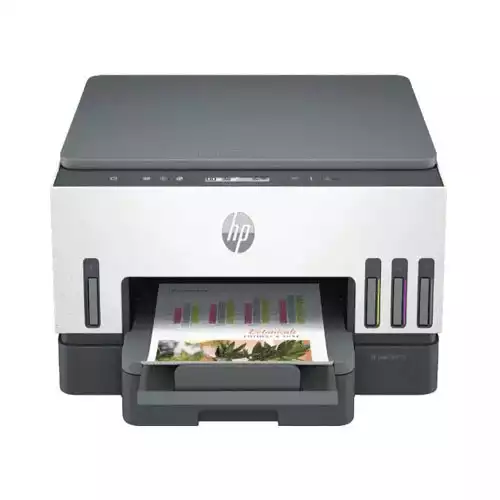

HP Smart Tank 720 Wi-Fi Duplexer All-in-One Printer

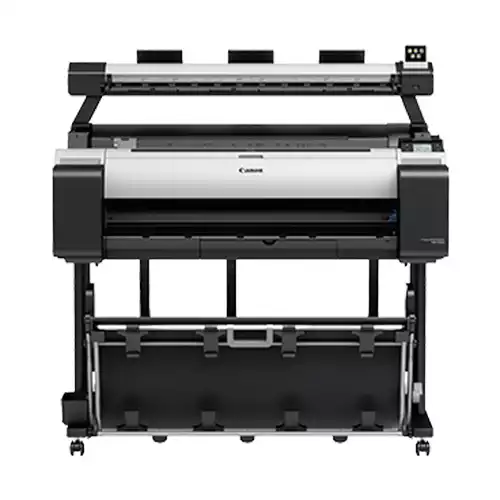

CANON IMAGEPROGRAF TM-5300 LARGE FORMAT PRINTER
CANON IMAGEPROGRAF TM-5300 MFP L36ei LARGE FORMAT PRINTER
HP M281fdw Color LaserJet Pro All-in-One Laser Printer
Featured Products
MSI GeForce RTX 5060 8G VENTUS 2X OC 8GB GDDR7 Graphics Card
HAIER 18TURBOCOOL 1.5 TON NON-INVERTER AC
AMD Ryzen 9 9950X3D 16 Core 32 Thread AM5 Gaming Processor
EcoFlow DELTA 3 Portable 1024Wh Power Station
HAIER H43P7UX 43 INCH 4K UHD HQLED GOOGLE SMART TV
CUDY WR1300 AC1200 Dual Band Gigabit Wi-Fi Router
Maxcool Inferno MC5 Micro ATX Gaming Computer Case
Adata XPG MARS 980 Blade 1TB PCIe Gen5 X4 M.2 2280 SSD
Netac NV7000 2TB M.2 2280 PCle Gen4 x4 NVMe SSD

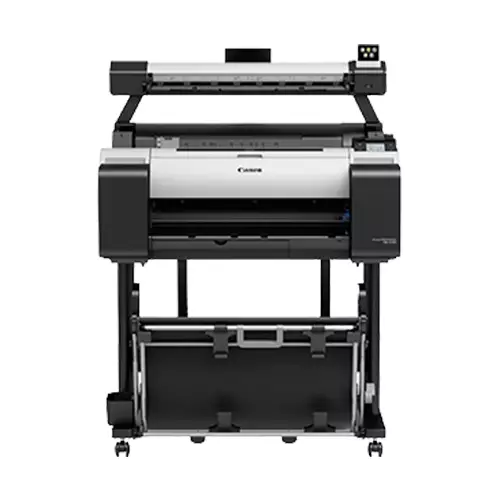

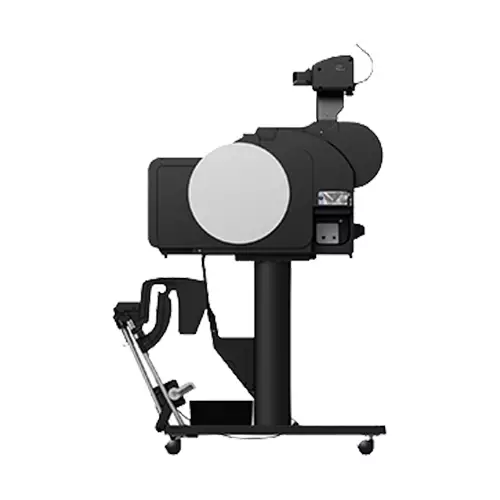

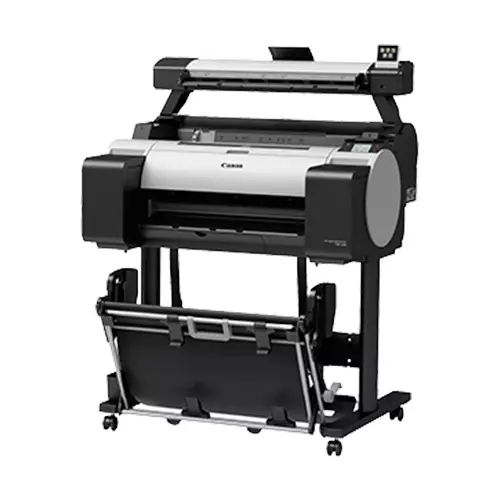

CANON IMAGEPROGRAF TM-5200 MFP L24ei LARGE FORMAT PRINTER
EMI Start From*
CANON IMAGEPROGRAF TM-5200 MFP L24ei |
| Printer Type | 5 Colour 609.6mm (24.0in) |
| Number of Nozzles | 15 360 nozzles (MBK*: 5 120 nozzles; BK*, C*, M*, Y* 2 560 Nozzles each |
| Print Resolution | 2400 x 1200 dpi |
| Nozzle Pitch | 1200 dpi (2 lines) |
| Line Accuracy | ±0.1% or less |
| Ink Droplet Size | Minimum 5picoliter per colour |
| Ink Capacity | Sales Ink: 130ml/300ml (MBK*, BK*,C*,M*, Y*) Bundled Starter Ink: 130ml (MBK*) / 90ml (BK*,C*,M*, Y*) |
| Ink Type | Pigment ink: Matte Black, Black, Cyan, Magenta, Yellow |
| Printer Language | SG Raster (Swift Graphic Raster) HP-GL/2 HP RTL JPEG (Ver. JFIF 1.02) |
| Standard Interfaces (Built-in) | USB B Port: Built-in (Hi-Speed USB ), Full-Speed (12Mbps), High Speed (480Mbps), Bulk transfer, Series B (4 pins) GB Ethernet: IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T/ Auto-Negotiation, IEEE 802.3x Full-Duplex Wireless LAN: IEEE802.11n/ IEEE802.11g/ IEEE802.11b |
| Memory | Standard memory: 2GB |
| Hard Disk | N/A |
| Plain Printing Speed | |
| CAD Drawing - Plain Paper (A1)br> | 24 sec [Fast (Custom Q5)] 27 sec (Fast) 42 sec (Standard) |
| CAD Drawing - Heavyweight Coated Paper HG (A1) | 29 sec (Fast Custom Mode) 40sec (Fast) 1min 17s sec (Standard) |
| Heavyweight Coated Paper HG Poster (A1) | 40 sec (Fast) 1 min 17 sec (Standard) |
| Poster - Plain Paper (A1) | 25s (Fast Economy Mode) 25s (Fast) 44s (Standard) |
| Poster, A0 | 2 min 59 sec [Fast] 5 min 44 sec [Standard] |
| Poster - Heavyweight Coated Paper HG (A1) | 55s (Fast) 1min 22s (Standard) |
| Media Handling | |
| Media Feed Method | Roll Paper: One Roll, Upper Load Front Output Cut Sheet: Upper Load Front Output (Manual feed using media locking lever) |
| Media Output (SD-23) | Standard Position: 1 Sheet Folding Position: 20 sheets on A1 portrait Flat Position: 20 sheets on A2 landscape |
| Media Width | Roll Paper / Cut Sheet: 203.2 - 610.0mm |
| Media Thickness | Roll Paper / Cut Sheet: 0.07 - 0.80mm |
| Min. Printable Length | Roll Paper: 203.2mm Cut Sheet: 279.4mm |
| Maximum Printable Length | Roll Paper: 18.0m (Varies according to the OS and application) Cut Sheet: 1.6m |
| Maximum Media Roll Outer Diameter | 150mm or less |
| Borderless Printing Width (Roll Only) | [Recommended] 515.0mm(JIS B2),594.0mm(ISO A1), 254.0mm (10.0in),355.6mm (14.0in),431.8mm (17.0in),609.6mm (24.0in) [Printable] 257.0mm(JIS B4),297.0mm(ISO A3),329.0mm(ISO A3+),420.0mm(ISO A2),203.2mm (8.0in),304.8mm (12.0in),406.4mm(16.0in),508.0mm (20.0in),300.0mm,500.0mm,600.0mm |
| Dimensions And Weight | |
| Physical Dimensions And Weight | Main Unit + Stand + Basket (SD-23) Basket Opened: 982 x 887 x 1 060mm Basket Closed: 982 x 757 x 1 060mm 52kg (including Roll Holder Set, excluding ink and print head) |
| Packaged Dimensions And Weight | Printer (Main Unit with Pallet): 1 152 x 913 x 705mm, 69kg Stand + Basket (SD-23): 1 155 x 824 x 268mm, 18kg Printer (Main Unit with Stand SD-23 and Pallet): 1 152 x 913 x 961mm, 87kg |
| Power And Operating Requirements | |
| Power Supply | AC 100 - 240 V, 50 - 60 Hz |
| Power Consumption | Operation: 69W or less Sleep Mode: 3.6W or less Power Off: 0.3W or less |
| Operating Environment | Temperature: 15°C - 30°C Humidity: 10% - 80% RH (no dew condensation) |
| Acoustic Sound | [Acoustic Pressure] Operation: 44dB (Plain paper, line drawing, standard mode) Standby : 35dB or less (Measured on ISO7779 standard) [Acoustic power] Operation : 6.0Bels (Plain paper, line drawing, standard mode) (Measured on ISO7779 standard) |
| Options | |
50.8mm (2.0in)/76.2mm (3.0in) Roll Holder | RH2-28 |
| Scanner | |
| Technology | SingleSensor with multiple LED illumination |
| Maintenance Cartridge | MC-30 |
| Optical Resolution | 600dpi |
| Scan Width | 609.6mm (24.0in) |
| Minimum scan width | 160.0mm (6.2in) |
| Maximum scan length | 2 768.0mm (109.0in) |
| Document thickness | Minimum 0.07mm Maximum 0.5mm |
| Max Scan Speed (mm/s) | [COPY] 300/300dpi Draft: 25.4mm per second colour, 76.2mm per second mono 300/600dpi Standard: 25.4mm per second colour, 76.2mm per second mono 600/600dpi Best: 12.5mm per second colour, 38.1mm per second mono [SCAN] 200dpi Draft: 25.4mm per second colour, 76.2mm per second mono 300dpi Standard: 12.7mm per second colour, 38.1mm per second mono 600dpi Best: 8.38mm per second colour, 25.4 per second mono |
| Software included | ScanApp Lei Software |
| Functions | Scan to USB - RGB*/Greyscale/BW*, TIFF (No ScanApp Lei) Scan to USB - RGB*/Greyscale/BW*, JPG, PDF, PDF/A, M-PDF (ScanApp Lei available) Scan to PC - RGB*/Greyscale/BW*, Tiff, JPEG, PDF, PDF/A, TiffG4, M-PDF Copy - RGB*/Greyscale/BW* Copy And Archive – (Combination of Copy and Scan to PC above). |
CANON IMAGEPROGRAF TM-5200 MFP L24ei LARGE FORMAT PRINTER in Bangladesh
Designed for the low-volume and entry-level user, this printer offers easy-to-use, scan-to-copy/ file/cloud solutions for architects, engineers, consulting firms, small offices, and K-12 schools that require a minimal learning curve when it comes to new equipment.
Features
- 5-color pigment ink
- Ultra-quiet operation
- 24"/610mm
- Compact footprint
- Perfect for high-quality CAD/GIS and posters
Superb Quality
The TM series boasts Canon’s LUCIA TD inks. These 5-color fully pigment inks, with high surface tension, produces lines and text that are dense and crisp with minimal feathering. Vibrant colors can also be produced from LUCIA TD ink which enables users to economically print high-quality drawings and posters on inexpensive uncoated plain paper. TM series offers a wider range of user applications and opens up new markets. Customers can expect superb vibrancy, print quality, and longevity in outdoor displays when used with Canon’s water-resistant media.
Quietly Compact
During operation, the imagePROGRAF TM Series boasts a quiet acoustic sound level of only 44dB; thus enabling it to even fit in a smaller office environment without a fuss. A compact and integrated design, with full front usability, means little installation space.
Abundance Software
The new imagePROGRAF TM Series include a variety of software designed to bring out all of the full potentials in your printer. With an abundance of software included, the imagePROGRAF TM Series is equipped with everything needed to print technical documents, maps, posters, banners, signage, infographics, designs, and more.
