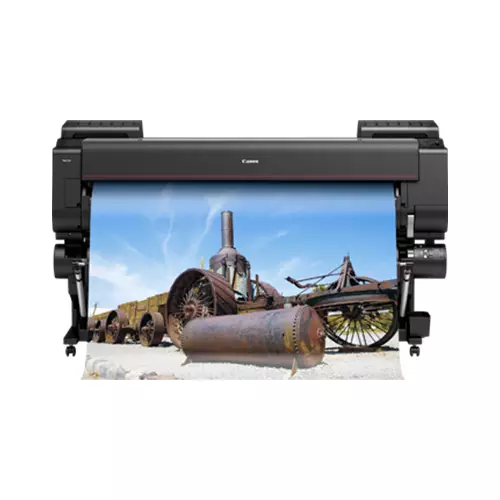

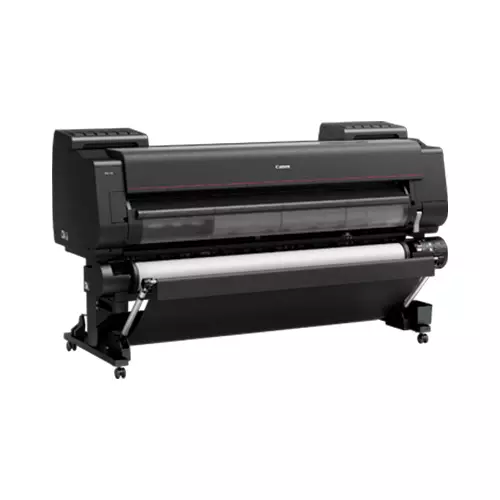

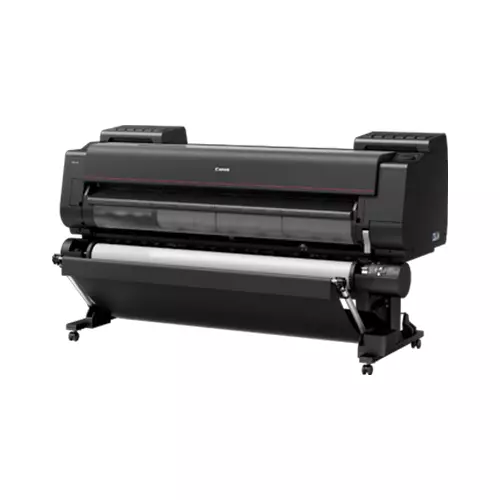

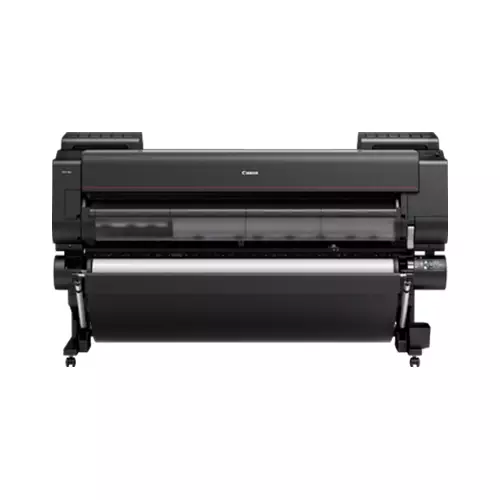

CANON IMAGEPROGRAF PRO-561 LARGE FORMAT PRINTER
- Connectivity: USB-A Port: USB Memory
- Function Type: Print
- Resolution technology: 2400 x 1200 dpi
- Printing: Printer Language: SG Raster
SPECIFICATIONS
SG Raster (Swift Graphic Raster)
PDF (Ver. 1.7)
JPEG (Ver. JFIF 1.02)
Print Speed
Plain Paper (A0)
1 min 37 sec (Level 5)
2 min 49 sec (Standard)
5 min 35 sec (High)
Heavyweight Coated Paper HG (A0)
2 min 49 sec (Standard)
5 min 35 sec (High)
8 min 20 sec (Highest)
Glossy Photo Paper HG 170 (A0)
5 min 35 sec (Standard)
8 min 50 sec (High)
14 min 54 sec (Highest)
Roll Paper: Front Load, Front Output
Added Roll Paper:
One Roll, Front Load, Front Output (Default)
Cut Sheet: Front Load, Front Output
(Manual Feed using Media Locking Lever)
Media Width (Roll / Cut Sheet)
152.4 ~ 1524 mm
Media Thickness (Roll / Cut Sheet)
0.07 ~ 0.8 mm
Minimum Printable Length
Roll Paper:
101.6 mm (exclude Cloth and Canvas media)
200 mm (Cloth and Canvas media)
Cut Sheet: 203.2 mm
Maximum Printable Length
Roll Paper: 18 m
(varies according to OS and application)
Cut Sheet: 2133.6 mm (with stand)
Maximum Outer Roll Diameter
170 mm or less
Borderless Printing Width (Roll Only)
Recommended:
515 mm (B2), 728 mm (B1), 1030 mm (B0), 594 mm (A1), 841 mm (A0), 10", 14", 17", 24", 36", 42", 44", 50", 54", 60"
Printable:
257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6", 8", 12", 16", 20", 22", 30", 300 mm, 500 mm, 600 mm, 800 mm, 1000 mm and custom roll width (152.4 ~ 1524 mm)
4 pl
Ink Capacity
Sales Ink: 160 ml / 330 ml / 700 ml
Bundled Starter Ink: 330 ml
Ink Type
Pigment Ink: Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimize
Memory
Networking & Connectivity
USB Memory (Direct Print)
USB B Port:
Hi-Speed USB
Full Speed (12 Mb/sec)
High Speed (480 Mb/sec)
Bulk Transfer
Series B (4 pins)
Gigabit Ethernet:
IEEE 802.3 10 base-T
IEEE 802.3u 100 base-TX/Auto Negotiation
IEEE 802.3ab 1000 base-T/Auto Negotiation
IEEE 802.3x Full Duplex
SNMP
Canon-MIB
HTTP
TCP/IP (IPv4/ IPv6)
Wireless LAN:
IEEE802.11n/g/b
WEP (64/128bit)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Battery And Power
AC 100 - 240 V, 50 - 60 Hz
Power Consumption
Printing: 97 W or less
Sleep Mode: 2.0 W or
Power Off: 0.3 W or less
Others
12-Colour, 60" / 1524 mm
Number of Nozzles
18,432 nozzles (1536 nozzles x 12 colours)
Nozzle Pitch
600 dpi x 2
Line Accuracy
±0.1 % or less
User calibration is required.
Printing environment and media must match those used for calibration.
Required Paper: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only.
Hard Disk
500 GB (Encrypted HDD)
Physical Specification
Approx. 1999 × 984 × 1168 mm (Basket Open) Approx. 1999 × 766 × 1168 mm (Basket Closed)
Main Unit + Roll Unit + Stand + Basket:
Approx. 1999 × 984 × 1168 mm (Basket Open)
Approx. 1999 × 766 × 1168 mm (Basket Closed)
Main Unit + Roll Unit + Stand + Basket: 171 kg
Technical Info
Warranty Information
DESCRIPTION
CANON IMAGEPROGRAF PRO-561 LARGE FORMAT PRINTER IN BANGLADESH
Features
- Device Management Console - Effectively manages multiple printers, and monitors activities such as error messages and printer information for up to 50 printers.
- Quick Utility Toolbox - Quick access to supporting utilities and settings. From printer information, speed dial and destination folder settings to scanning and cloud sharing.
- Professional Print and Layout - This software offers features such as auto nesting of images, the printing of Exif data and print settings, pattern printing, enhanced layout functions and soft proofing.
- Direct Print & Share - Batch printing, job presets, and shortcut prints can be sent quickly and efficiently.
- Free Layout Plus - Enjoy nesting, tiling and duplex printing features.
- Easy-PhotoPrint Editor - Edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more. Available on iOS, and Android OS.
- Apple AirPrint - Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®.
- Canon Print Service - Direct document and photo printing via mobile app from Android devices without the need to download any printer-specific applications.
- Canon Print Inkjet/ SELPHY - Print PDF files wirelessly via mobile app for Android tablets and smartphones.
Advanced Automatic Media Handling
Ease operation workflow and free up operators’ physical time spent on print preparation through intelligent automatic media feeding, automatic media detection and automatic remaining roll amount estimation shown on the operation panel.
LUCIA PRO Pigment Ink & Chroma Optimizer
The LUCIA PRO system features an ink system with Chroma Optimizer ink. With fluxing materials and optimised resin results in denser ink particle distribution, producing a broader colour gamut and excellent expression in dark area and shadows. Chroma Optimizer enables uniform light reflection, and image clarity
Robust Security and Extensive Software
Provides end-to-end data theft prevention once print job is sent from host PC to the printer; made possible with its robust security. Coupled with an extensive suite of software designed, the PRO series is able to print everything from posters, graphics, signages to high quality photo easily.
LUCIA PRO Ink
LUCIA PRO pigment ink microencapsulates the colour materials to exhibit high ink colour performance with wide colour gamut. Prints are delivered with vibrant colours, excellent colour expression, superior dark area reproduction, low graininess and good gloss characteristic providing true-to-life prints.
FINE Print Head
Get rich and grain-free quality photo image with minimum ink droplets and high printing resolution for lab-quality printouts.
L-COA PRO Image Processing Engine
L-COA PRO imaging processor drives high printing speed and supreme print quality.
Crystal Fidelity
Realise how Crystal Fidelity, a Canon-to-Canon workflow solution, enables images captured with EOS Digital Camera two-dimensional expression printouts to look like three-dimensional images without any limitations. The result is a solution that delivers prints of EOS Digital Camera with full structure, clarity and textures.
High-Precision Mechanical Platform
The PRO-series uses a printer mechanical platform with a highly precise and rigid printer frame capable in suppressing oscillation and shaking during print head scanning. Together with high-precision ink placement with little intercolour discrepancy, these greatly influences the ink ejection accuracy for high quality print reproductions.
Non-Firing Detection and Compensation System
Equipped with in-built sensor, the non-firing detection and compensation system checks the ink ejection from print head nozzles and when a blockage is detected, another nozzle automatically provides backup. This prevents printing failures due to banding and also reduces head cleaning frequencies.
