BOYA BY-XM6-S2 SPECIFICATION |
System
| - Wireless Technology Digital 2.4 GHz
- Included Transmitters 2 x Clip-On with Microphone
- Diversity Non-Diversity
- RF Frequency Band 2405 to 2478 MHz
- RF Channel Scanning Auto-Scan
- Max Operating Range 328.1' / 100 m (Line of Sight)
- Max Transmitters per Band 2
|
Receiver
| - Receiver Type Camera-Mount
- Mounting Options Belt Clip (with Included Hardware)
- Number of Audio Channels 2

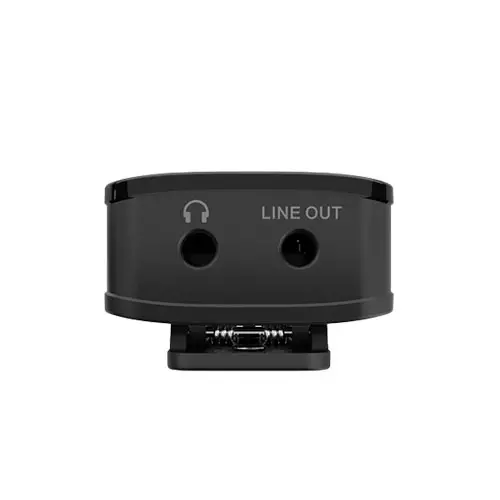

- Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
- 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
- USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging)
- Power Requirements Battery, Bus Power (USB)
- Battery Type 1 x Built-In Rechargeable
- Approx. Battery Life 6.5 Hours (Lithium Rechargeable)
- DC Input Power 5 VDC
- Display & Indicators OLED (Battery Status, Level, Metering, Power, Sync, Transmitter Battery Status)
- Operating Temperature 14 to 122°F / -10 to 50°C
- Storage Temperature -4 to 131°F / -20 to 55°C
- Dimensions 1.3 x 2.4 x 0.7" / 32 x 62 x 17 mm
- Weight 1.1 oz / 32 g
|
Transmitter

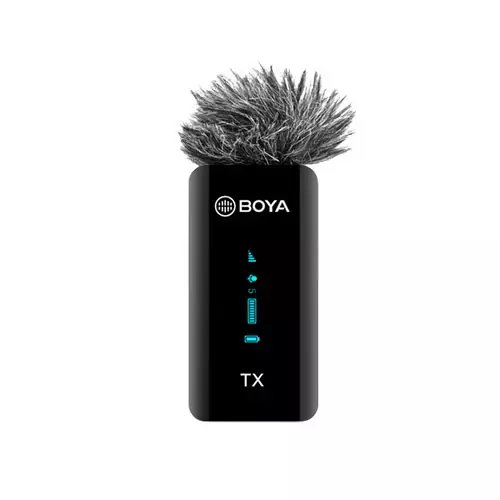

| - Transmitter Type Clip-On with Microphone
- RF Output Power 10 mW
- Audio I/O 1 x 1/8" / 3.5 mm 3-Pin Female Input
- Included Cable Connector 1/8" / 3.5 mm TRS
- Muting Off/On Switch
- Auto-Level Control No
- Frequency Response 35 Hz to 18 kHz
- Antenna Internal
- Power Requirements Battery
- Battery Type 1 x Built-In Rechargeable (Included)
- Approx. Battery Life 7 Hours
- USB/Lightning Connectivity 1 x USB Type-C (Charging)
- Display & Indicators LED (Battery Status, Power, Sync)
- Operating Temperature 14 to 122°F / -10 to 50°C
- Storage Temperature -4 to 131°F / -20 to 55°C
- Dimensions 1.3 x 2.4 x 0.7" / 32 x 62 x 17 mm
- Weight 1.1 oz / 32 g
|
Microphone
| - Microphone Type Integrated
- Sound Field Mono
- Polar Pattern Omnidirectional
- SNR 84 dB
- Maximum SPL 120 dB SPL
- Sensitivity -39 dB
|
Microphone 2
| - Microphone Type Lavalier
- Sound Field Mono
- Polar Pattern Omnidirectional
- Maximum SPL 110 dB SPL
- Output Connectors 1 x 1/8" / 3.5 mm TRS Male
|
Packaging Info
| - Package Weight 0.865 lb
- Box Dimensions (LxWxH) 8.8 x 5.8 x 1.9"
|
BOYA BY-XM6-S2 CAMERA-MOUNT DUAL-CHANNEL ULTRA-COMPACT RECHARGEABLE WIRELESS MICROPHONE SYSTEM in Bangladesh
Features

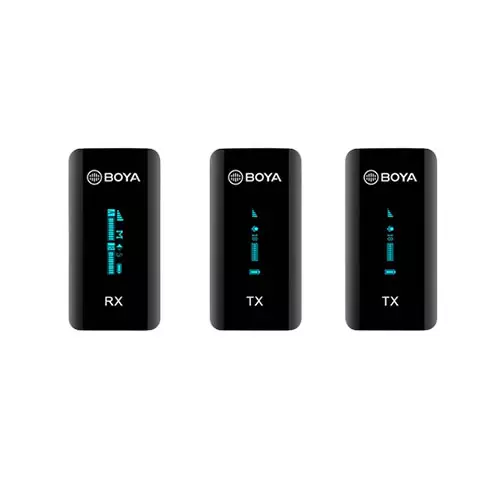

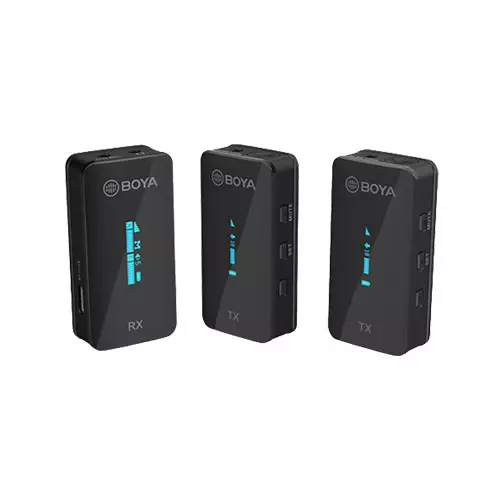

- The BOYA BY-XM6-S2, a 2.4GHz dual-channel wireless microphone system, consists of two transmitters and one receiver. It’s a perfect sound capturing and delivering solution for two-person vlog, YouTube video, live streaming, interview, recording, etc.
- Advanced Technology for Stable Signal Transmission: The BY-XM6 S2 series adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S2 avoid the disturbed hop frequency parts automatically to realize stable signal transmission in the range of up to 100m (328ft).
- Professional Audio Capturing & Delivering: Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S2 captures and delivers Hi-fi and low-noise audio.
- Ultra-versatile & Ease-to-use Wireless Microphone Kit: With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN input jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work with your DSLR or mirrorless camera, smartphone and computer. When you record two sound sources simultaneously, BY-XM6 S2 will be your best choice.
